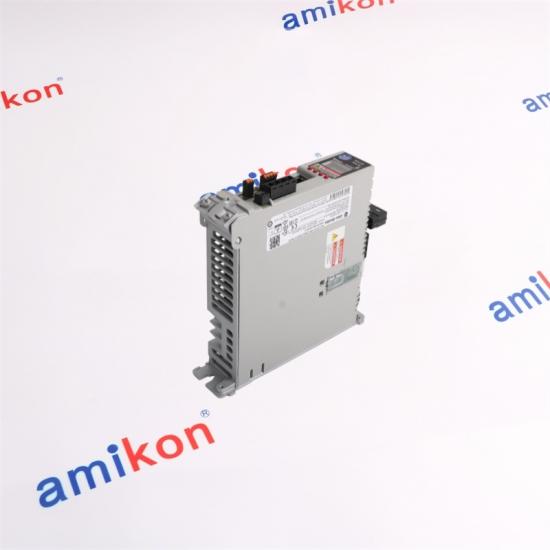

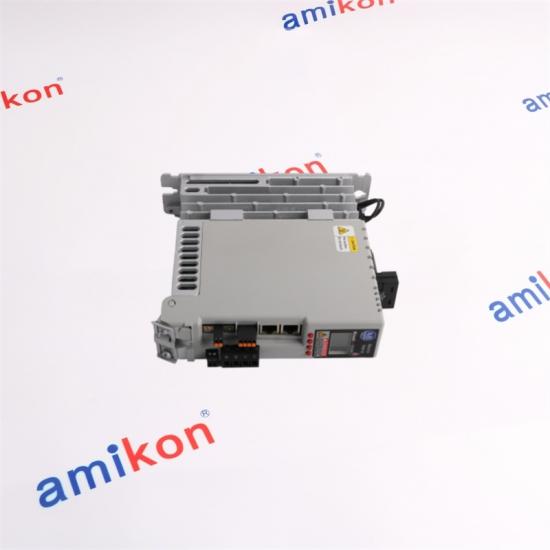

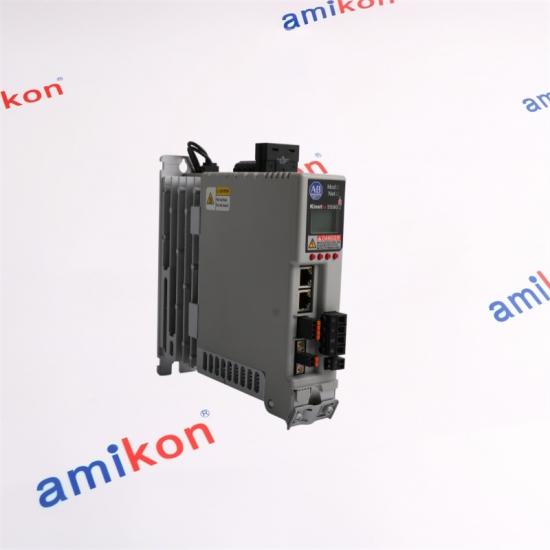

Allen-Bradley 2198-H008-ERS 6.3 Amp Kinetix 5500 Servo Drive

Allen-Bradley 2198-H008-ERS
Allen-Bradley 2198-H008-ERS
Allen-Bradley 2198-H008-ERS

Allen-Bradley 2198-H008-ERS 6.3 Amp Kinetix 5500 Servo Drive

Calculate shipping
Quotation Request











ALLEN-BRADLEY
KINETIX 5500
2198-H008-ERS
SV Servo Drive

◆ Frame 1
◆ Hardwired safety
AC
 SERVO DRIVE · CORE RATINGS FRAME 1
PEAK OUTPUT
6.3 A
peak current
CONTINUOUS
3.5 A
0-peak
480 VAC
1.6 kW
three-phase
INPUT
230 V AC

KINETIX 5500

OUTPUT POWER
up to 1.6 kW @ 480 V AC
230 V THREE-PHASE
0.8 kW		 230 V SINGLE-PHASE
0.5 kW

AMIKON · CONTACT
Sales manager: Miya zheng
✉ Email ◉ WhatsApp / Phone
↗
WE HAVE A WIDE RANGE OF BRANDS AND PRODUCTS FOR VARIOUS INDUSTRIES, WE PROVIDE SERVICES TO TENS OF THOUSANDS OF CUSTOMERS AROUND THE WORLD.
INDUSTRIAL MOTION
◆ GLOBAL SERVICE























⌁
⌁
+





ALLEN-BRADLEY / KINETIX 5500
2198-H008-ERS

6.3 Amp Kinetix 5500 Servo Drive
The 2198-H008-ERS is a Frame 1 Kinetix 5500 servo drive designed for EtherNet/IP integrated motion applications and equipped with hardwired Safe Torque Off. The drive belongs to the 2198 Kinetix 5500 family and supports multiple AC input arrangements according to system configuration.
FRAME
1
CONTINUOUS CURRENT
3.5 A 0-pk
PEAK CURRENT
8.8 A 0-pk
PRODUCT DETAILS
Kinetix 5500 Servo Drive Architecture

01


Product Overview
The 2198-H008-ERS is a Frame 1 Kinetix 5500 servo drive intended for integrated motion applications using EtherNet/IP. Its architecture combines servo drive operation, networked motion control and hardwired Safe Torque Off within the Kinetix 5500 platform. The published input arrangements include 195…264V rms single-phase, 195…264V rms three-phase and 324…528V rms three-phase operation.
CONTROL / NETWORK



Integrated Motion over EtherNet/IP
The Kinetix 5500 family is designed for integrated motion applications using EtherNet/IP. Networked control provides access to motion operation, drive configuration and diagnostic functions within the automation environment.

SAFETY / INSTALLATION
!
Hardwired Safe Torque Off
The ERS version uses hardwired safety connections. The related 2198-H008-ERS2 version uses integrated safety over EtherNet/IP instead, so the two catalog numbers should not be treated as direct substitutes when preserving an existing machine safety architecture.
Technical Specifications

◉
POWER
195…528V AC
ϟ
CURRENT
3.5 A continuous
⌁
NETWORK
EtherNet/IP
◇
SAFETY
Hardwired STO
2198-H008-ERS CORE DATA
Product family Kinetix 5500 Servo Drive Bulletin 2198
Catalog number 2198-H008-ERS Frame size Frame 1
Input voltage 195…264V rms single-phase; 195…264V rms three-phase; 324…528V rms three-phase Input frequency 47…63 Hz
Continuous output power 0.5 kW @ 230V 1-phase; 0.8 kW @ 230V 3-phase; 1.6 kW @ 480V 3-phase Continuous output current 3.5 A 0-pk
Peak output current 8.8 A 0-pk Nominal DC bus 276…747V DC
Control power 24V DC ±10% Communication EtherNet/IP
Safety configuration Hardwired Safe Torque Off Line loss ride-through 20 ms
Mains input 195…528V AC depending on input arrangement Platform Kinetix 5500
SERIES MAP
Kinetix 5500







H008
Model Frame Continuous Current Peak Current Safety
2198-H003-ERS 1 1.4 A 0-pk 3.5 A 0-pk Hardwired STO
2198-H008-ERS 1 3.5 A 0-pk 8.8 A 0-pk Hardwired STO
2198-H015-ERS 1 7.1 A 0-pk 17.7 A 0-pk Hardwired STO
2198-H025-ERS 2 11.3 A 0-pk 28.3 A 0-pk Hardwired STO
2198-H040-ERS 2 18.4 A 0-pk 45.9 A 0-pk Hardwired STO
2198-H070-ERS 3 32.5 A 0-pk 81.3 A 0-pk Hardwired STO



Where the 2198-H008-ERS Fits
The 2198-H008-ERS is suited to machine axes where the Kinetix 5500 platform, EtherNet/IP integrated motion architecture and hardwired safety arrangement are already part of the control design. Its position within the H003/H008/H015 Frame 1 group makes it relevant where the required motor and axis current falls within the H008 drive capability.
◇
Machine Axis Replacement
Useful where an existing Kinetix 5500 installation requires a matching Frame 1 drive and the safety architecture remains hardwired.
⌁
Networked Motion Systems
Appropriate for EtherNet/IP-based motion systems that require drive-level control and diagnostic integration.
ϟ
Maintenance Replacement
When replacing an installed unit, verify catalog number, input class, motor requirements, safety arrangement and application configuration before substitution.



Replacement Considerations
For a replacement involving a failed or unavailable drive, the complete catalog number should be checked together with the installed input arrangement, continuous and peak current requirements, motor compatibility, EtherNet/IP control environment and safety method. In particular, 2198-H008-ERS and 2198-H008-ERS2 use different safety implementations and should not be assumed to be direct substitutes.




!




CHECK BEFORE REPLACEMENT
01 — Catalog number
02 — Input voltage
03 — Motor / current demand
04 — Safety architecture
05 — Network configuration


GLOBAL INDUSTRIAL AUTOMATION SUPPORT
Need 2198-H008-ERS?
Send the exact part number together with quantity and destination. We can check availability and prepare a quotation according to your application requirements.
♙
SALES MANAGER
Miya zheng
Email Sales Team →
✉
EMAIL
sales@amikon.cn
Send Inquiry →
☎
PHONE / WHATSAPP
86-18020776792
Contact Us →
⌁   ◇   ϟ   ◇   ⌁
FOR A FASTER QUOTATION, PLEASE PROVIDE
Part Number   /   Quantity   /   Destination   /   Required Date   /   Machine/System
Order & Delivery Details

◷
DELIVERY
3–5 Days
◇
WARRANTY
12 Months
□
PACKAGING
Brand New
↗
PAYMENT
T/T
⌁
DELIVERY WAY
E-packing / FedEx / EMS / TNT / DHL / UPS
↺
RETURN SUPPORT
After-Delivery Care
Please contact us within 7 days after receiving the items if you have any question or need to report a problem. Returned items should remain in their original condition and be accompanied by the specific reason for return. After the returned goods are received and checked, we will arrange an appropriate return or replacement for the order. The buyer is responsible for all shipping costs incurred by the return.
PURCHASE-FOCUSED FAQ
2198-H008-ERS Buyer Questions

?


01
Can 2198-H008-ERS replace a 2198-H008-ERS2 in an existing machine?
Not as a direct safety-equivalent substitution. Both belong to the Kinetix 5500 H008 family and share the same published current and power class, but 2198-H008-ERS uses hardwired Safe Torque Off while 2198-H008-ERS2 uses integrated safety over EtherNet/IP. The existing machine safety architecture therefore needs to be checked before substitution.
?

02
Is 2198-H008-ERS suitable when the replacement machine uses 230V single-phase power?
Yes. The Kinetix 5500 specifications permit the H008 drive to operate from 195…264V rms single-phase input. Under the published ratings, the continuous output power for this arrangement is 0.5 kW. Motor requirements and the complete application configuration should still be verified before ordering.
?

03
What should I verify before purchasing 2198-H008-ERS as a failed-drive replacement?
Confirm the complete catalog number, input voltage arrangement, motor requirements, current demand, EtherNet/IP control environment and safety method. The most important purchasing distinction is the hardwired safety architecture of the ERS version versus the networked safety implementation of the ERS2 version.
?

04
When would a buyer select 2198-H008-ERS instead of 2198-H003-ERS or 2198-H015-ERS?
These models occupy adjacent positions in the Kinetix 5500 Frame 1 range. The H008 provides 3.5 A continuous output current and 8.8 A peak output current, placing it above the H003 and below the H015 in current capability. Selection should therefore follow the actual motor and axis requirements.
?

05
Why is the exact 2198-H008-ERS suffix important when sourcing an older Kinetix 5500 drive?
The suffix defines the safety implementation. For a maintenance replacement, using the same H008 current class is not enough if the original system depends on a specific safety connection method. Matching the full catalog number helps avoid an unexpected change to the machine safety and control architecture.
