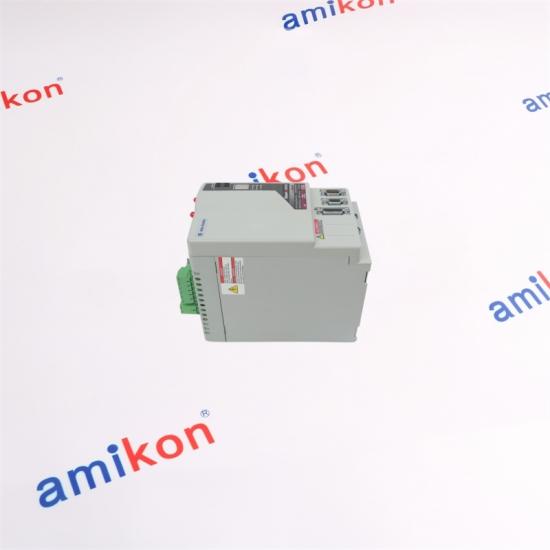

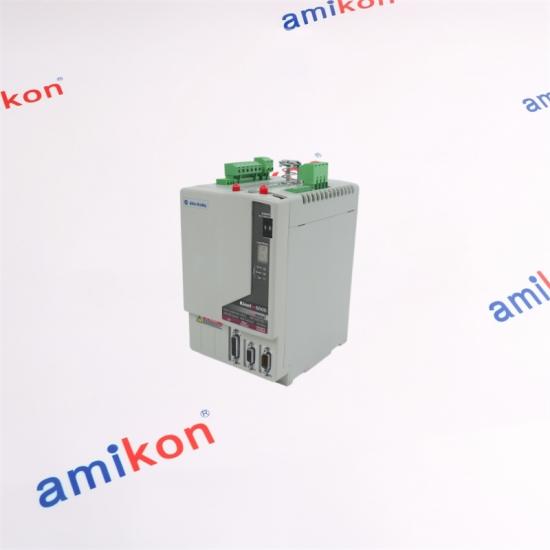

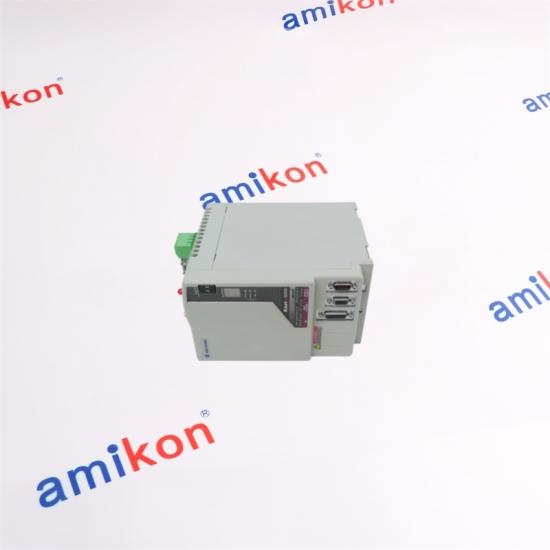

Allen-Bradley 2094-AC09-M02 Integrated axis module

Allen-Bradley 2094-AC09-M02
Allen-Bradley 2094-AC09-M02
Allen-Bradley 2094-AC09-M02

Allen-Bradley 2094-AC09-M02 Integrated axis module

Calculate shipping
Quotation Request
ALLEN-BRADLEY
BULLETIN 1394
SR9A
SHUNT RESISTOR

EXTERNAL REGENERATIVE POWER DISSIPATION
POWER RATINGS
CONTINUOUS POWER 300 W
RESISTANCE 4 Ω
DRIVE CLASS 200 V AC class
Verify system requirements before selecting a replacement.
CONTACT SALES
Miya zheng · AMIKON

AMIKON contact QR code
✈ International Delivery on the Day ✦ Quick Response Support ◎ Intercontinental Cooperation Network



ALLEN-BRADLEY / 2094-AC09-M02 PRODUCTSPECSSYSTEMFAQQUOTE
MULTI-AXIS POWER SPINE
230 V CLASS
19 A BUS
10.6 A AXIS
AMIKON SUPPLY AND SERVICE

ALLEN-BRADLEY
2094-AC09-M02

2094-AC09-M02 is a Kinetix 6000 integrated axis module combining the converter and one inverter axis. It accepts 230 V-class three-phase input, supplies the shared DC bus and drives one servo motor from the power rail.
01 / ALLEN-BRADLEY
Product Identification
Manufacturer Allen-Bradley
Catalog number 2094-AC09-M02
Product family Kinetix 6000
Product type Integrated axis module
Voltage class 200 / 230 V AC
Axis section M02 inverter
02 / ALLEN-BRADLEY
Functional Overview
The integrated axis module anchors a Kinetix 6000 power rail. Its converter creates the common DC bus for the local axis and attached axis modules, while the built-in M02 inverter provides controlled power to one servo motor.
03 / ALLEN-BRADLEY
Technical Specifications
AC input 195-264 V AC, three-phase
Common-bus follower input 275-375 V DC
Control power input 95-264 V AC, single-phase
Continuous DC-bus output 19 A DC
Nominal inverter input 325 V DC
Continuous axis current 10.6 A rms
Continuous peak-form current 15.0 A, 0-pk
Continuous axis output 3.4 kW nominal
Short-circuit rating 200 kA rms symmetrical
04 / ALLEN-BRADLEY
System Architecture
THREE-PHASE AC INPUT → INTEGRATED CONVERTER → COMMON DC POWER RAIL → M02 INVERTER AXIS → SERVO MOTOR / FEEDBACK
05 / ALLEN-BRADLEY
Compatibility & Related Models
MODEL ROLE SELECTION POINT
2094-AC05-M01 230 V IAM, 6.0 A axis Lower current step
2094-AC09-M02 230 V IAM, 10.6 A axis This model
2094-AC16-M03 230 V IAM, 17.3 A axis Higher current step
2094-AM02 10.6 A axis module Rail-mounted inverter only
2094-AC09-M02-S Safety version Use only when the installed safety design requires it
06 / ALLEN-BRADLEY
Installation Considerations
01
Confirm the 230 V-class power rail, IAM slot position and total rail loading before installation.		 02
Provide branch-circuit protection and protective earth according to the machine electrical design.		 03
Seat the module fully on the power rail before connecting motor, feedback, I/O and communication cables.		 04
During commissioning, verify input phasing, bus voltage, axis identity, motor parameters, feedback polarity and safety-chain behavior.
20 Years of Industrial Automation Supply
RESPONSIVE PROJECT SUPPORT
PART INSPECTION
INTERNATIONAL DISPATCH
Quality
Careful part matching and inspection coordination.		 Urgent support
Fast quotation and delivery coordination.		 Global reach
Cross-border industrial supply support.
07 / ALLEN-BRADLEY
Engineering FAQ
2094-AC09-M02: Can 2094-AC09-M02 be installed anywhere on the power rail?
No. As the integrated axis module it occupies the rail-leading power position and supplies the common DC bus.
2094-AC09-M02: Is 2094-AC09-M02 interchangeable with 2094-AM02?
No. The IAM contains the converter plus an inverter axis; 2094-AM02 is an inverter axis module only.
2094-AC09-M02: Can a 460 V motor-drive arrangement use 2094-AC09-M02?
No. This catalog number belongs to the 200 / 230 V class; voltage class and motor combination must match.
2094-AC09-M02: What must be checked before purchasing 2094-AC09-M02?
Confirm line voltage, rail size, total bus load, motor current, firmware, communication module and installed safety architecture.
2094-AC09-M02: What checks follow 2094-AC09-M02 replacement?
Verify bus and control power, axis addressing, motor and feedback connections, parameter restoration, fault-free enable and controlled motion.
