REGENERATIVE ENERGY RELEASE
4 OHM
300 W
PASSIVE
|
AMIKON SUPPLY AND SERVICE
ALLEN-BRADLEY
|

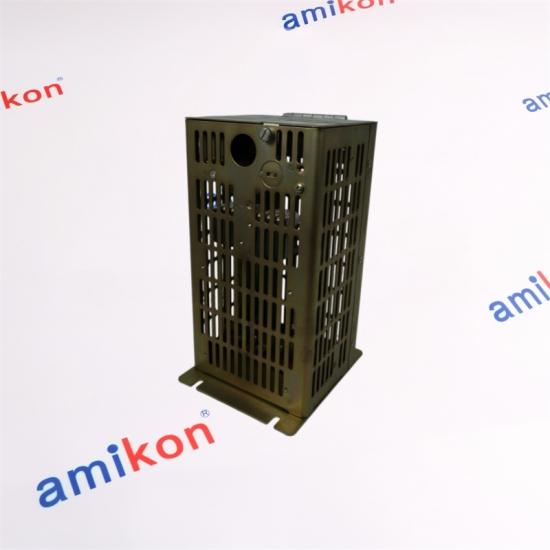

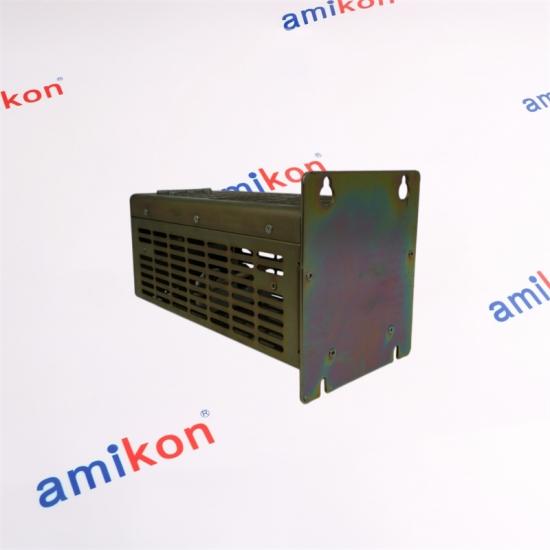

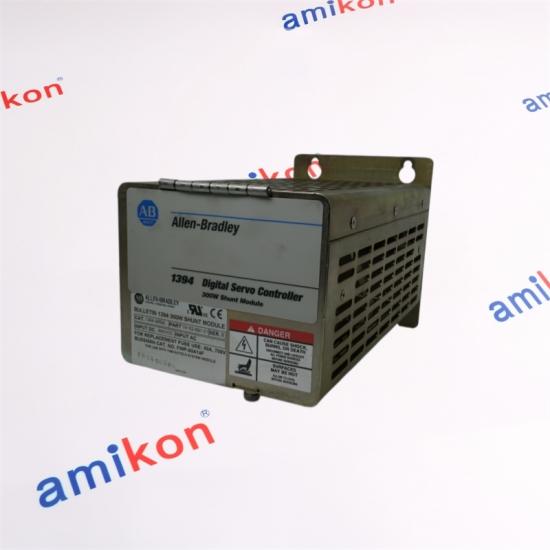

| Manufacturer | Allen-Bradley |
| Catalog number | 1394-SR9A |
| Product type | External passive shunt module |
| Electrical role | Regenerative energy dissipation |
| Resistance | 4 ohm |
| Cooling type | Natural convection |
| Resistance | 4 ohm |
| Continuous power | 300 W |
| 200 V-class peak power | 41.0 kW |
| 200 V-class peak current | 101.25 A |
| 400 V-class peak power | 160 kW |
| 400 V-class peak current | 200 A |
| Approximate weight | 3.63 kg / 8 lb |
| Overall envelope | Approx. 280 x 150 x 175 mm |
| Mounting hardware | M6 or 1/4-20 |
| SERVO MOTOR / LOAD | → | REGENERATIVE DC BUS | → | DRIVE SHUNT TRANSISTOR | → | 1394-SR9A RESISTOR | → | HEAT TO AMBIENT |
| MODEL | ROLE | SELECTION POINT |
| 1394-SR9A | 300 W continuous | This natural-convection model |
| 1394-SR9AF | 900 W continuous | Fan-cooled 9 A-frame variant |
| 1394-SR36A | 1800 W continuous | Higher continuous dissipation |
| 1394-SR36AF | 3600 W continuous | Fan-cooled high-duty variant |
| 2094-BSP2 | Kinetix shunt module interface | Used where the drive architecture requires it |
| 01 Mount vertically on a rigid metal surface with the required clearances for heat dissipation. |
02 Keep combustible material, signal wiring and heat-sensitive devices away from the enclosure. |
03 Match voltage class, shunt control arrangement, fuse and conductor size to the installed drive. |
04 After wiring, confirm protective earth, terminal torque, unobstructed airflow and braking-cycle performance. |
|
