Product Line |
1786 Repeaters |
|
Part Number |
1786-RPFRL |
|
UPC |
612598269129 |
|
Weight |
1.00 lbs (0.45 kg) |
|
Supply Voltage Rating |
24 VDC |
About Amikon
v We are a global organization specializing in the sales of industrial automation parts.
v We strive to be recognized worldwide as the most reliable, knowledgeable, and enjoyable partner in the industrial automation industry.
v This means a "deal is a deal" attitude, unique knowledge, and exceptional customer service.
v To achieve this goal, we continuously innovate and invest in a wide range of end-of-life part solutions for today's commercial market.
v We provide industrial automation products to customers worldwide and currently serve over 10,000 customers in over 100 countries.
Our features and advantages
v Whether new or discontinued, from the smallest module to a complete configuration, we carry long-standing products, the latest technology, and everything in between.
v Our insight into market trends, technological developments, and customer needs enables us to make strategic purchases, so we rarely need to relocate our business.
v If an item happens to be out of stock, we'll find a preferred supplier for you through our network.
If you want to get prices in different places, please call us
Email: sales@amikon.cn
Whatsapp/phone: +86 18020776792
Technical specifications for 1786-RPFRL
|
Manufacturer |
Allen Bradley |
|
Product Type |
Fiber Ring Long Distance Repeater |
|
IP Protection |
IP20 |
|
Control Indicators |
Power Status, Channel 1 & 2 Status |
|
Power Consumption |
2.8 W |
|
Isolation Voltage |
50 V |
|
Minimum Operating Temperature |
0 degrees Celsius |
|
Maximum Operating Temperature |
60 degrees Celsius |
|
Wiring Category |
2 - on relay ports |
|
Wire Size |
22 to 14 AWG |
|
Relative Humidity |
5 to 95% (non-condensing) |
Description
|

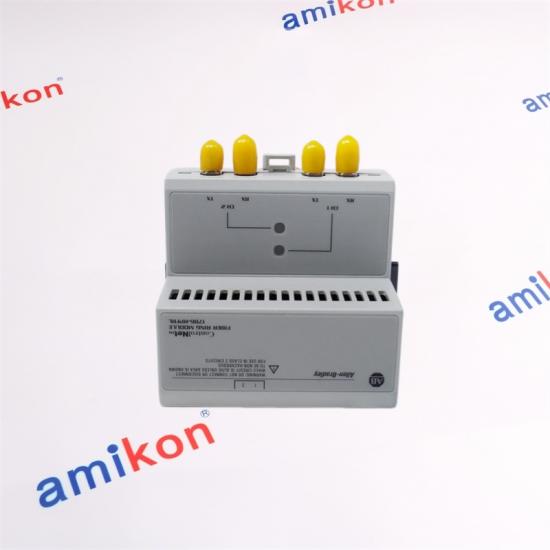

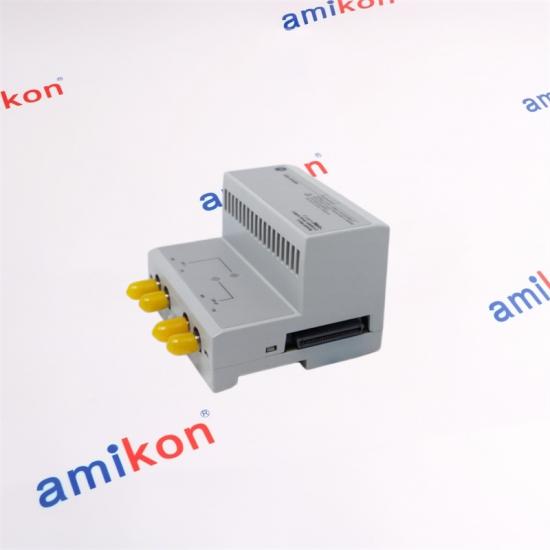

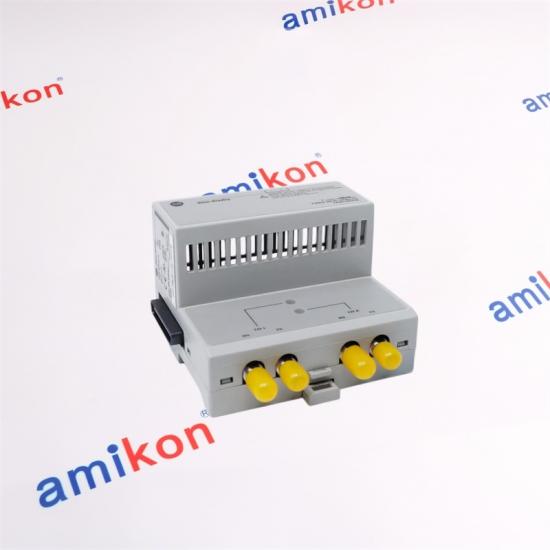

The Allen Bradley 1786-RPFRL is a fiber ring long distance repeater engineered for connectivity in industrial settings. This device operates at a supply voltage of 24 VDC, ensuring compliance with standard electrical requirements. It is constructed to IP20 specifications, which indicates its appropriateness for indoor applications without exposure to water or dust. |
|
Power consumption is minimal at 2.8 watts, making it energy efficient. This model is equipped with control indicators that display power status, along with the status of channels 1 and 2, facilitating real-time monitoring and diagnostics. The isolation voltage is rated at 50 volts, providing a level of protection against electrical faults. |
|
The 1786-RPFRL functions optimally within temperatures that range from 0 to 60 degrees Celsius, permitting use in various environments. It adheres to Wiring Category 2 on relay ports, compatible with wire sizes from 22 to 14 AWG, making it versatile for installation requirements. Additionally, it is designed to operate reliably within a relative humidity range of 5 to 95%, provided condensation does not occur. This repeater is ideal for extending communication distances efficiently in effective operational setups. |
FQA
|
Q: What is the primary function of the 1786-RPFRL? |
|
Q: What supply voltage is required for the 1786-RPFRL? |
|
Q: What is the operating temperature range of the 1786-RPFRL? |
|
Q: Does the 1786-RPFRL include status indicators? |
|
Q: What protection rating does the 1786-RPFRL have? |
