Allen Bradley 1786-BNC coaxial connector

u Emerson's brand advantages are primarily rooted in its strong technological innovation, extensive industry experience,and a deep commitment to customer-centric solutions.

u As a global leader in automation and control technologies, Emerson continuously drives product and solution innovation through its robust R&D capabilities,ensuring that customers remain competitive in increasingly complex market environments.

Manufacturer

Allen Bradley

Category

PLCs

Product Line

1786 Repeaters

Part Number

1786-BNC

UPC

612598164912

Compatible System

ControlNet Media Systems

Location Type

Nonhazardous Locations

Compatible Cable Sections

Coaxial Trunk Cable Sections

Compatible Tap Connector

Tap BNC Connector

Installation

Connector twists and locks onto cable

RG-6QS Option

Supported

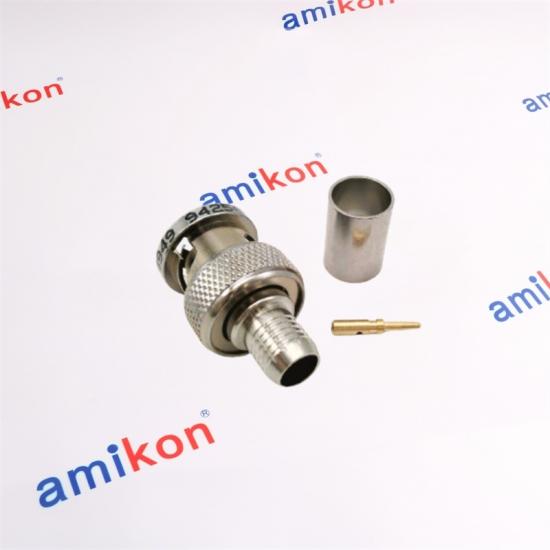

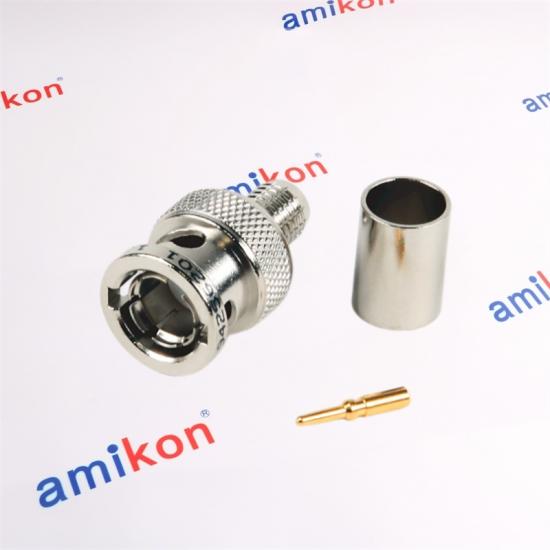

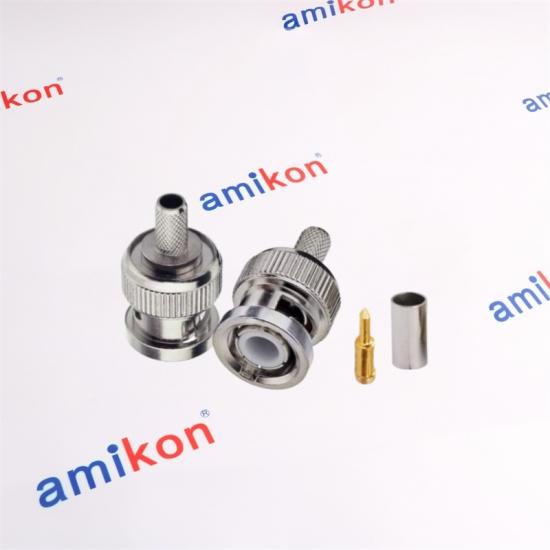

The Allen Bradley 1786-BNC is a robust coaxial connector engineered for precise compatibility in ControlNet media systems. As a BNC plug, it serves a vital role in ensuring reliable connections for data transmission. This component supports a 75 Ohm crimp type, establishing secure and efficient connections between devices in communication networks. Rated at IP20, it provides adequate protection against ingress of solid objects, making it suitable for industrial environments where dust may be a concern.

Designed for nonhazardous locations, the 1786-BNC facilitates easy integration with various coaxial trunk cable sections, allowing for seamless installation. The connector's design enables straightforward operation; it twists and locks directly onto the cable, ensuring a foolproof connection. Additionally, the connector is compatible with tap BNC connectors. Support for the RG-6QS option adds to its versatility, making it adaptable to different applications that may require specific cable types.

Q: What is the primary function of the 1786-BNC?

A: The 1786-BNC is used to provide secure coaxial cable connections in ControlNet communication systems.

Q: Which cable type is compatible with the 1786-BNC?

A: The connector supports RG-6QS coaxial cable applications.

Q: What is the impedance rating of the 1786-BNC?

A: The connector is rated for 75 Ohm connections.

Q: What protection rating does the 1786-BNC have?

A: The connector has an IP20 protection rating.

Q: Is the 1786-BNC suitable for hazardous locations?

A: No. The connector is designed for use in nonhazardous industrial environments only.
