Allen Bradley 1784-KTX half-sized communication card

Compatibility

16-bit ISA / EISA slots

Channel

1

Remote I/O scanner

Yes

DH+ / DH-485 node

Yes

Direct connection to PLC-2 / PLC-3

Yes

ESD sensitive

Yes

Technology

CMOS

UPC

10612598143105

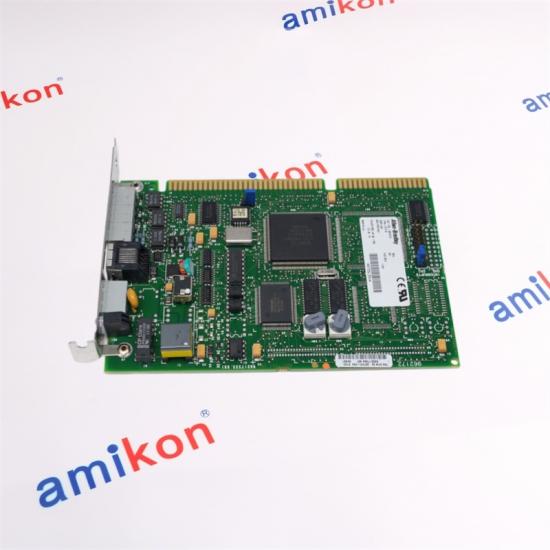

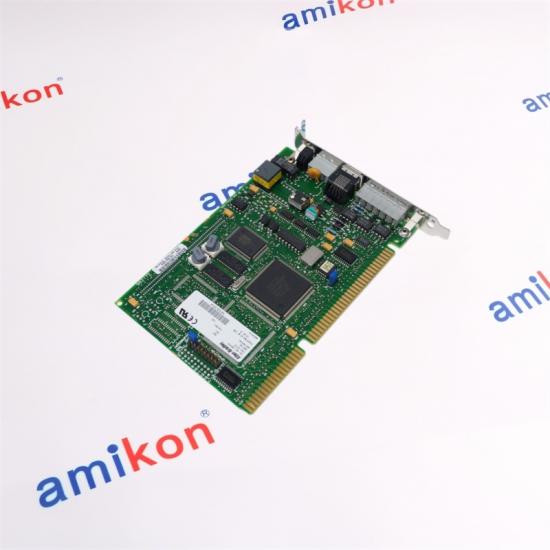

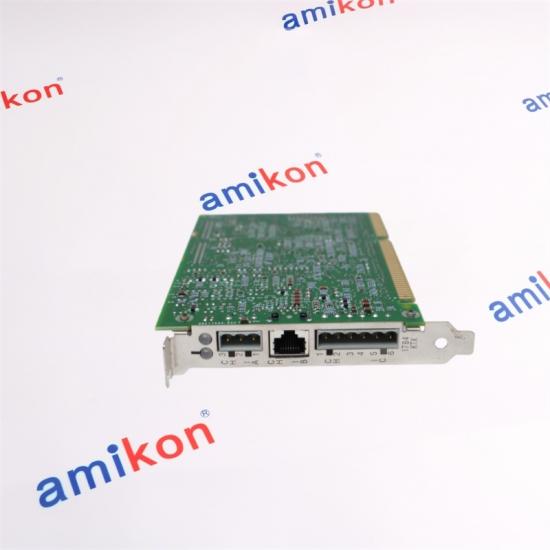

The Allen-Bradley NetLinx 1784-KTX card is a communication interface card. The shipment from the manufacturer should contain one communication card and one user manual. The 1784-KTX card is a half-sized ISA card which can be installed in a 16-bit ISA or EISA slot. The 1784-KTX card must never be installed in an 8-bit expansion slot. There is one channel on the 1784-KTX card. The card also acts as a remote I/O scanner. The 1784-KTX card can act as a node on the DH+ or DH-485 networks and they can connect directly to PLC-2/PLC-3 controllers. The operating temperature range for the 1784-KTX card is from 32 to 140 degrees Fahrenheit.

When in storage or when in transport, the ambient temperature range should be kept between -40 and 185 degrees Fahrenheit. The non-condensing relative humidity around the card should be between 5 and 95%. The vibration rating for the 1784-KTX card is 10 to 60 Hertz with 0.012 inches displacement. Before installing the card, the interrupt setting and base memory address of the card must be configured. The 1784-KTX card is based on CMOS technology and it is therefore sensitive to electrostatic discharge (ESD). Standard ESD precautions including grounding by touching a grounded object, the use of a grounded wrist strap, and avoiding touching connectors and components should be followed while working with the card. The card should also be kept in a static-shielded container when not in use and during transportation and when it is being returned for repair.

Questions

Answer

What is the primary function of the 1784-KTX card?

The 1784-KTX is a NetLinx communication interface card used for industrial network communication and remote I/O scanning in PLC systems.

Which network protocols are supported by the 1784-KTX?

The card supports DH+ and DH-485 industrial communication networks.

Can the 1784-KTX connect directly to PLC controllers?

Yes, the module can connect directly to PLC-2 and PLC-3 controllers.

Which expansion slots are compatible with the 1784-KTX?

The card is compatible with 16-bit ISA and EISA slots but should not be installed in 8-bit expansion slots.

Why are ESD precautions important when handling the 1784-KTX?

The module uses CMOS technology, which is sensitive to electrostatic discharge, so grounding and static protection procedures help prevent damage duri
