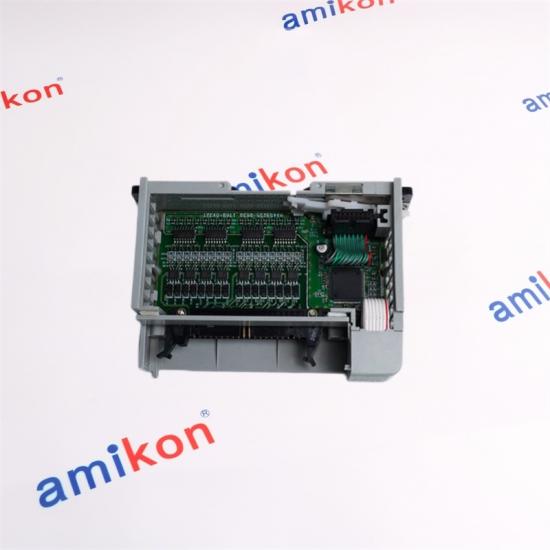

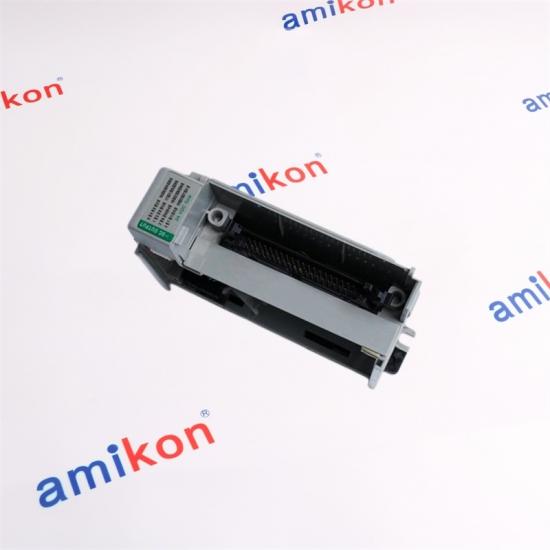

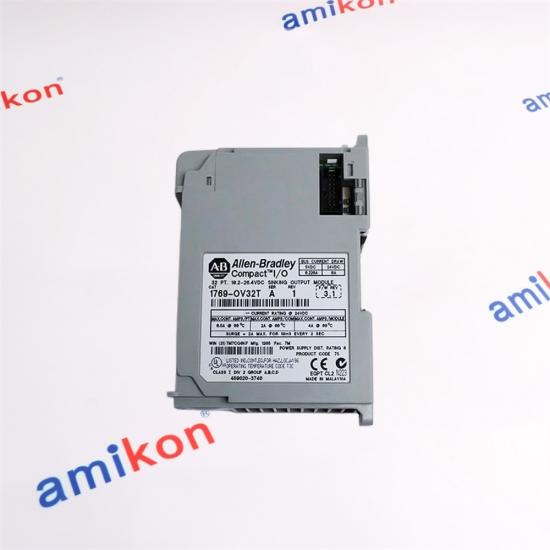

The Allen-Bradley 1769-OV32T CompactLogix module is a 32-Point module. It operates at 24 DC Power and it has an open enclosure. |
|
|
Weight |
0.50 lbs (0.23 kg) |
|
Module Type |
Output Module |
|
Input Type |
Sinking Output |
|
Communication Cable |
32 Point |
Contact
【Manager-Miya】
【Tel：86-18020776792（Whatsapp/Wechat）】
【Email：sales@amikon.cn】
Details
|
Product Model |
1769-OV32T |
|
Spare Model |
1769OV32T / 1769-OV32T/A |
|
Module Type |
CompactLogix Solid State Output Module |
|
Manufacturer |
Allen-Bradley |
|
Output Channels |
32 Outputs |
|
Output Type |
Sinking DC Output |
|
Operating Voltage |
24V DC |
|
Voltage Range |
10.2…26.4V DC |
|
Mounting Type |
DIN Rail or Panel Mount |
|
Dimensions |
118 × 35 × 87 mm |
|
Operating Temperature |
0°C to 60°C |
Descripution
|
The 1769-OV32T is a DC digital Allen-Bradley CompactLogix I/O module. It is solid state and runs on 10.2-26.4 volts of DC power. The module 32 terminated outputs arranged in groups of 16. It uses 90-degree Celsius (194-degree Fahrenheit) copper wire and has no enclosure. Because the 1769-OV32T has no enclosure, keep it away from debris, static, and UV radiation during installation, operation, and storage. |
|
The 1769-OV32T is easy to mount on panel or DIN rail because of its tongue-and-groove connectors. These connectors also allow the module to connect to other I/Os in Allen-Bradley’s 1769 series. |
|
The 1760-OV32T I/O can use a variety of applications including MicroLogix 1500 controllers, 1769-ADN DeviceNet adapters, 1769-AENTR adapters, and CompactLogix controllers. It can take wire sizes between 14-22 AWG for solid wire or between 16-22 AWG for stranded wire. |
Main Features
l Compact high-density design saves cabinet installation space.
l Fast signal switching response improves system efficiency.
l Industrial-grade isolation protection enhances operational safety.
FAQ
Q: What is the Allen-Bradley 1769-OV32T used for?
A: The 1769-OV32T is a CompactLogix 32-point 24V DC sinking digital output module designed for industrial automation and machine control applications.
Q: How many output channels does the 1769-OV32T provide?
A: The module provides 32 solid-state digital output channels for high-density control systems.
Q: What voltage range does the 1769-OV32T support?
A: It supports a 24V DC output voltage with an operating range of 10.2 to 26.4V DC.
Q: What are the main advantages of the 1769-OV32T?
A: Key advantages include compact size, fast switching response, reliable solid-state outputs, flexible expansion capability, and easy integration with CompactLogix systems.
Q: Which controllers are compatible with the 1769-OV32T?
A: The module is compatible with CompactLogix controllers and can also be used as expansion I/O for MicroLogix 1500 systems.
