Overview |
|
|

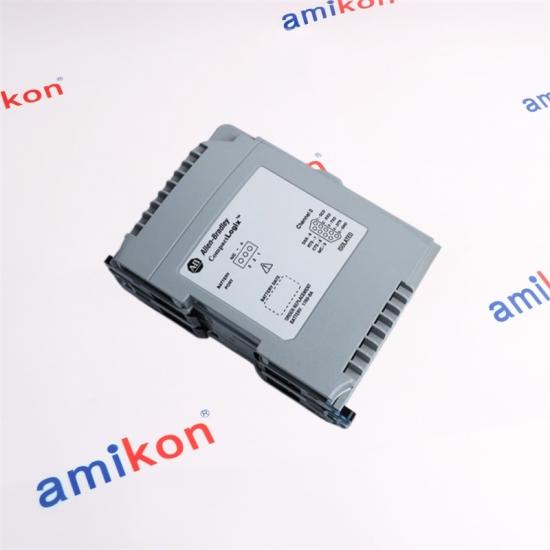

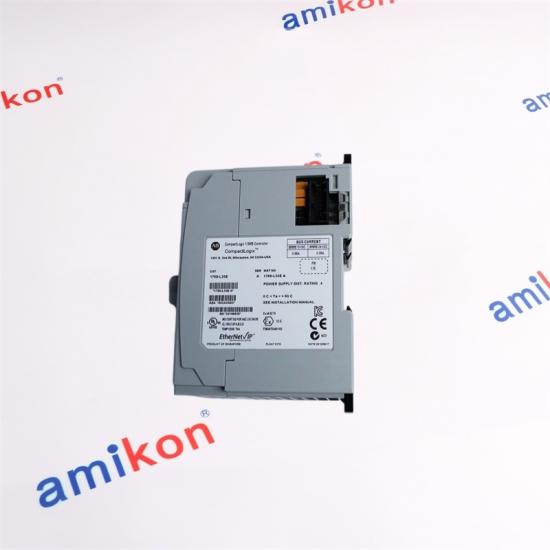

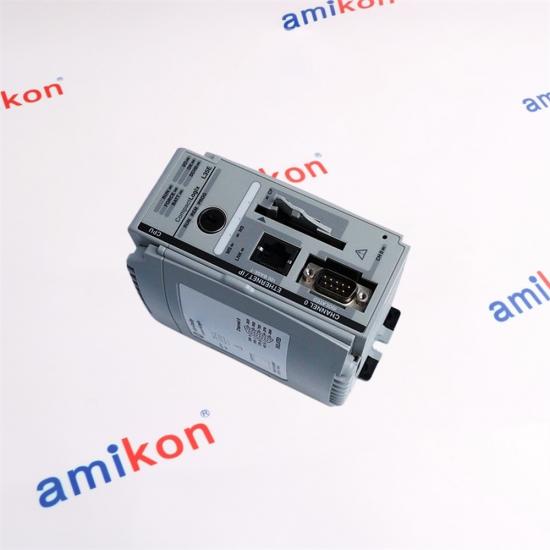

The Allen Bradley 1769-L35E is a compact Ethernet controller designed for integration into automation systems. Offering a user memory capacity of 1.5 MB, it supports up to 30 I/O modules and up to 3 banks of I/O, providing flexibility in control applications. |
|
|
Manufacturer |
Allen Bradley |
|
Product Type |
Ethernet Controller |
|
Product Line |
CompactLogix |
|
Part Number |
1769-L35E |
|
UPC |
612598302130 |
Contact
【Manager-Miya】
【Tel：86-18020776792（Whatsapp/Wechat）】
【Email：sales@amikon.cn】
Details
|
Weight |
0.75 lbs (0.34 kg) |
|
User Memory |
1.5 MB |
|
Communications Ports |
1 Ethernet Port and 1 RS-232 Serial Port |
|
Compatible CompactFlash Card |
1784-CF128 |
|
Maximum Number of I/O Modules |
30 |
|
Maximum Number of I/O Banks |
3 |
|
Current Draw at 5 Volts DC |
660 Milliamps |
|
Current Draw at 24 Volts DC |
90 Milliamps |
|
Power Dissipation |
5.5 Watts |
|
Isolation Voltage Rating |
30 Volts (Continuous) |
|
Mounting Options |
DIN Rail or Panel Mount |
|
Enclosure Type |
Open-Style |
|
Operating Temperature Range |
0 to 60 Degrees Celsius |
Main Features
² 1.5 MB integrated user memory for medium and large automation applications.
² Built-in EtherNet/IP and RS-232 communication ports for flexible industrial networking.
² Supports up to 30 local Compact I/O modules and multiple expansion banks.
² High-speed processor provides fast scan times and efficient data processing.
² Compact modular design supports DIN rail or panel mounting to save cabinet space.
² Compatible with multiple communication protocols including DF1, DH-485, and Modbus.
² Supports advanced diagnostics, remote monitoring, and web-based communication features.
² Suitable for packaging, material handling, manufacturing, and process automation systems.
FAQ
Q: What is the Allen-Bradley 1769-L35E used for?
A: The 1769-L35E is used for industrial automation, machine control, packaging, conveyors, and process control applications.
Q: What communication ports are available on the 1769-L35E?
A: The controller includes one EtherNet/IP port and one RS-232 serial communication port.
Q: How many I/O modules can the 1769-L35E support?
A: It supports up to 30 local Compact I/O modules and expansion through additional I/O banks.
Q: What are the key advantages of the 1769-L35E?
A: Its main advantages include fast processing speed, flexible networking, modular expansion capability, and reliable industrial performance.
Q: Is the 1769-L35E still available from Rockwell Automation?
A: No, the 1769-L35E has been discontinued by Rockwell Automation, but repair and replacement services are still available in the market.
