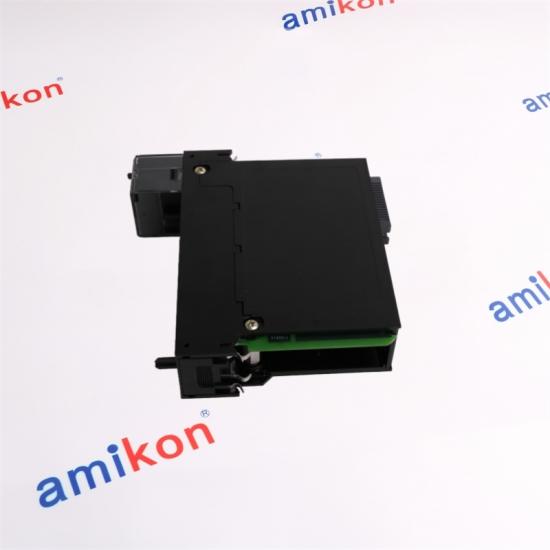

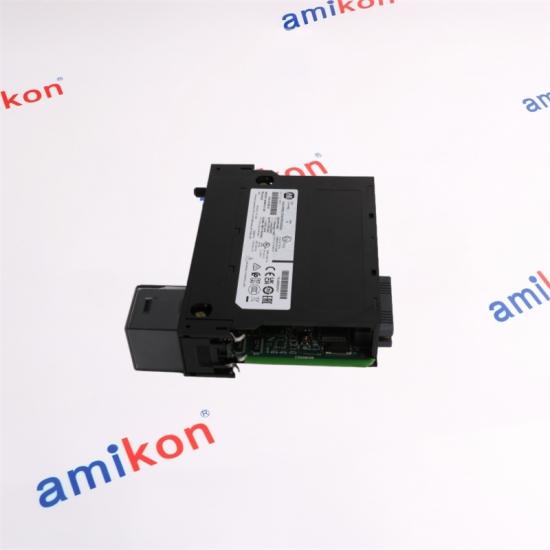

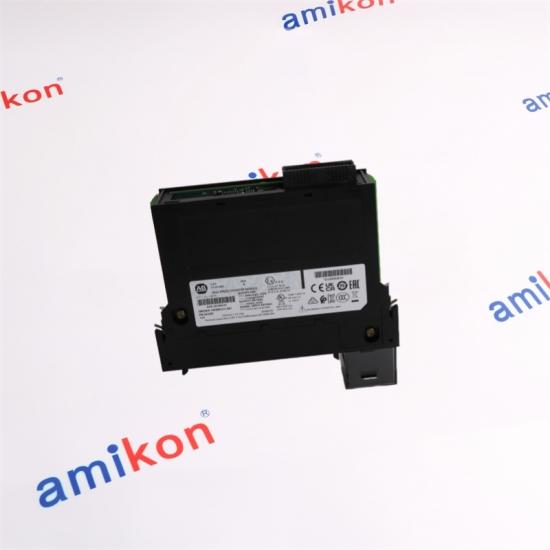

Allen Bradley 1756-HSC Counter Module

Sales manager

Miya

Click E-mail

sales@amikon.cn

Whatsapp

+86 18020776792

All items are NEW.

Any inquiries will be replied within 1 hour.

We check them more than three times before we send out the goods!

One year warranty

Worldwide Fast Shipment

ControlLogix high-speed counter module, 2 counters, 1 MHz max count rate.

3 inputs per counter: A, B, Z (gate/reset); 4 outputs, 2 per counter, 20 µs ON delay.

5 V or 12/24 V DC field power, 15 mA nominal input current, electronic overload reset.

Count range 0…16 777 214; rate & encoder modes (X1/X4) to 250 kHz.

Back-plane draw 300 mA @ 5.1 V, 3 mA @ 24 V; total 1.6 W, 5.6 W max dissipation.

–40 °C storage, 0…+60 °C operating; 30 G shock, 2 G vibration 10…500 Hz.

1-slot module, 87 × 68 × 69 mm, 0.21 kg; screw RTB, electronic keying.

CE/UL/cUL, SIL2, T4 temp code; stocked, 5-day lead time.

1756-HSC is the 1 MHz, 2-channel counter card that plugs into any ControlLogix rack, swallows 5 V or 24 V encoder signals, fires outputs in 20 µs, and keeps counting from 0 °C to 60 °C while drawing only 1.6 W from the back-plane.
