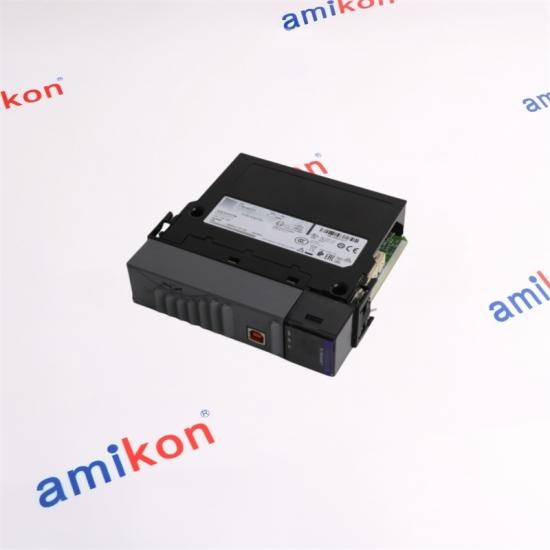

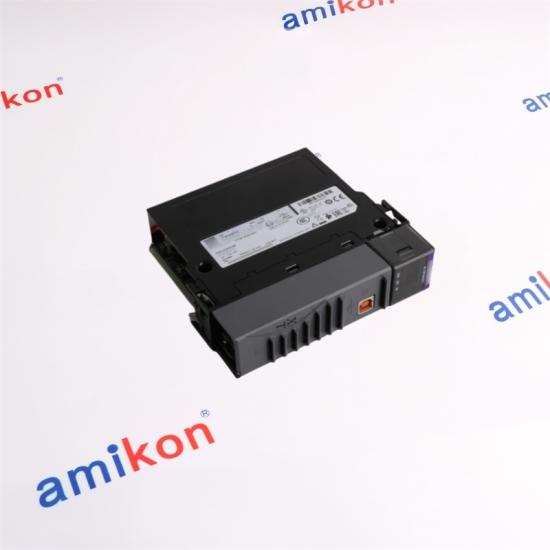

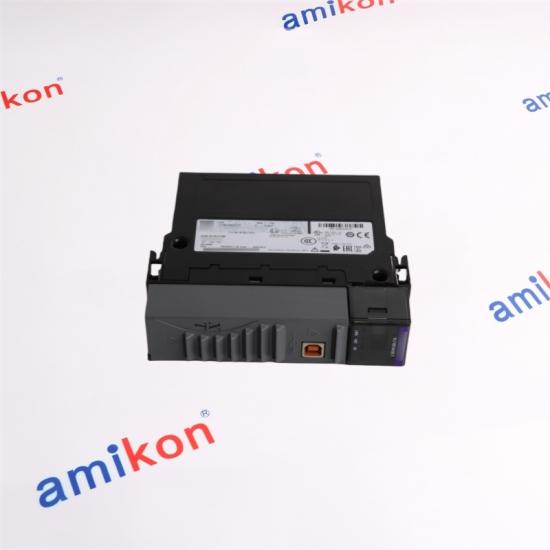

Allen-Bradley 1756-EN2TXT High Performance Bridge

Amikon Limited

l If your current system is defective or spare parts are out of production, you will not need to switch to the new system.

l High quality spare parts inventory. Functional products with comprehensive testing and technical support;

l Let's focus on maintaining your industrial spare parts pressure so that you can focus on keeping your business running.

Sales manager: Miya zheng Email: sales@amikon.cn WhatsApp: 86-18020776792

Specifications

Descripution

The Allen-Bradley 1756-EN2TXT Bridge provides EtherNet/IP network communication and control in environments where temperatures range between -25 to 70 °C (-13 to 158 °F). It is a ControlLogix-XT product line of the 1756 ControlLogix Communication Modules. It is installed into the backplane to link or route control and information data – supporting both real-time I/O messaging and message exchange. It features 128 TCP Connections, 256 CIP/ Logix Connections, and 128 + 128 CIP Unconnected Messages (backplane + Ethernet).

The 1756-EN2TXT EtherNet Bridge features a 10/100 Mbps network communication rate. It supports SNMP (password required) and comes with socket services. It has a packet rate capacity of 10,000 I/O and 2,000 HMI/MSG packets per second. When used with a 1756-L7x ControlLogix Controller, it can support up to 8 Integrated Motion on the EtherNet/IP Network Axes and its packet rate capacity for I/O increases to 25,000 packets per second.

The 1756-EN2TXT Communication Module is ideal for applications that require Internet/Intranet connection, the inclusion of commercial technologies like video over IP, data configuration and collection over a single network, plant management, and time sensitivity with no established schedule. It is compatible with the 1756-A4LXT, 1756-A5XT, 1756-A7XT, and the 1756-A7LXT chassis.

FAQ

1. How does the AB 1756-EN2TXT enhance high-throughput EtherNet/IP communications within advanced ControlLogix automation architectures?
The AB 1756-EN2TXT delivers high-performance EtherNet/IP connectivity, enabling efficient real-time I/O exchange, controller communications, and data integration across complex industrial networks.

2. Why is the AB 1756-EN2TXT considered a pivotal networking solution for mission-critical manufacturing environments?
The AB 1756-EN2TXT supports deterministic data transmission, extensive connection capacity, and robust network performance, making it ideal for applications requiring continuous operational reliability.

3. What sophisticated network management capabilities are integrated into the AB 1756-EN2TXT for industrial Ethernet deployments?
The AB 1756-EN2TXT supports advanced EtherNet/IP features, including optimized communication paths, device diagnostics, and seamless interoperability with CIP-enabled automation devices.

4. To what extent does the AB 1756-EN2TXT facilitate scalable controller-to-controller and controller-to-device communications?
The AB 1756-EN2TXT is engineered to manage a large number of simultaneous connections, supporting distributed control strategies, remote I/O architectures, and enterprise-wide information exchange.

5. Which technical attributes of the AB 1756-EN2TXT contribute to network resilience and system availability in demanding industrial applications?
The AB 1756-EN2TXT incorporates high-speed Ethernet technology, comprehensive diagnostic capabilities, and support for modern industrial networking standards, helping maximize uptime and communication integrity.
