Specifications

Descripution

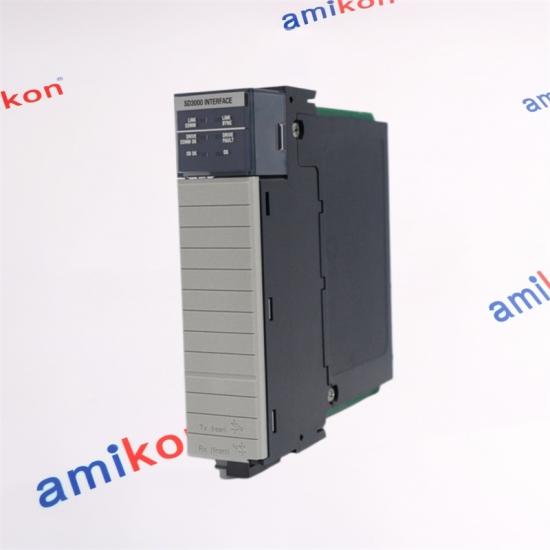

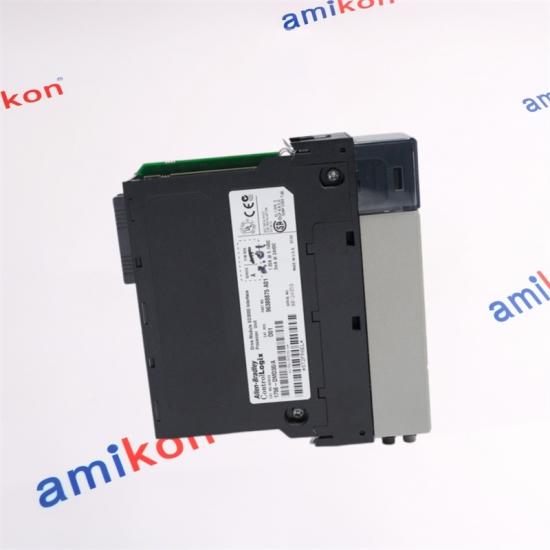

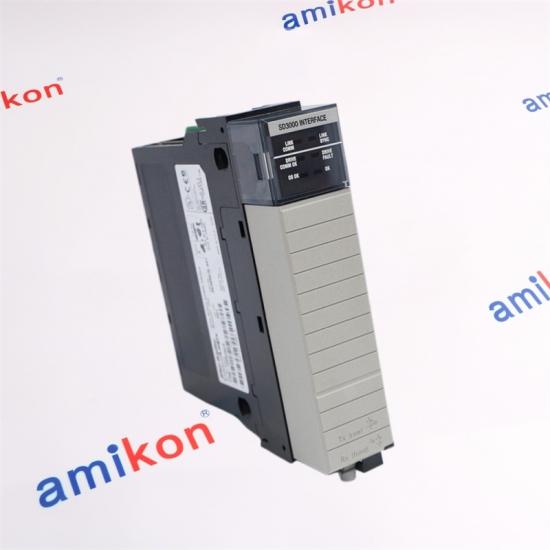

The 1756-DMD30 Allen-Bradley ControlLogix drive module is a single-slot industrial ControlLogix module which enables device interfacing with the Reliance Electric Distributed Power System (DPS) equipment. Each 1756-DMD30 module interfaces with an individual Power Module Interface (PMI) chassis and it performs torque, position, and velocity control. The 1756-DMD30 module works with SD3000 6 Pulse DPS equipment system which is an S6 DC drive and an S6R resolver and with the SD3000 12-Pulse equipment system which is a S12 DC drive and S12R resolver.

The 1756-DMD30 module is installed inside a ControlLogix chassis and it communicates to the SynchLink nodes through a fiber optic network. The 1756-DMD30 module also connects to PMI chassis through fiber optic cables. The 1756-DMD30 module is a single-slot module and it operates on DC power that is supplied by the ControlLogix chassis. The module current consumption rating at 24 Volts DC is 3 milliamps and at 5.1 Volts DC, it is 1.35 Amps.

The peak power dissipation is 6.96 Watts and the thermal dissipation is 23.7 BTU/hr. Green and red indicators are provided on the module for diagnostics, status, and operation updates. The storage and operating temperature ranges are -40 to 185°F and 32 to 140°F, respectively. The operating shock rating is 30 G. The recommended ambient relative humidity range is 5 to 95%. The MTBF (Mean Time Between Failure) is 1.7 million hours.

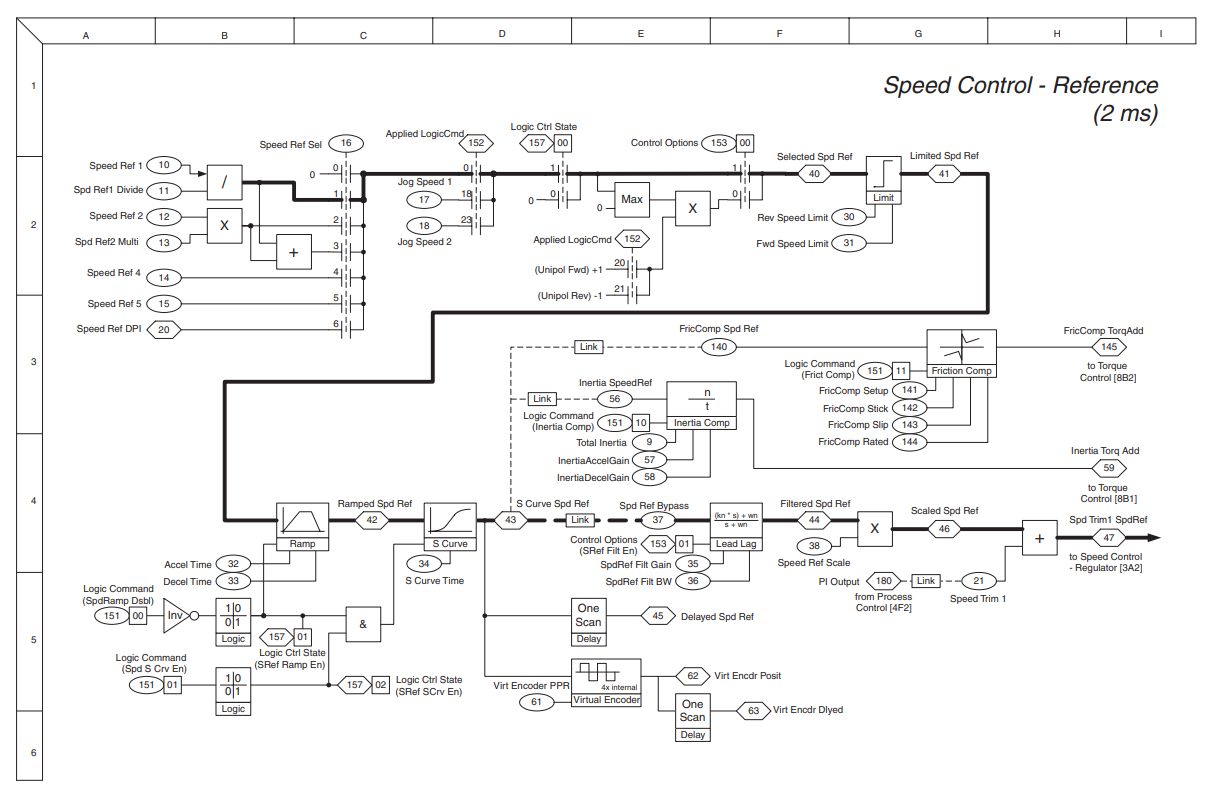

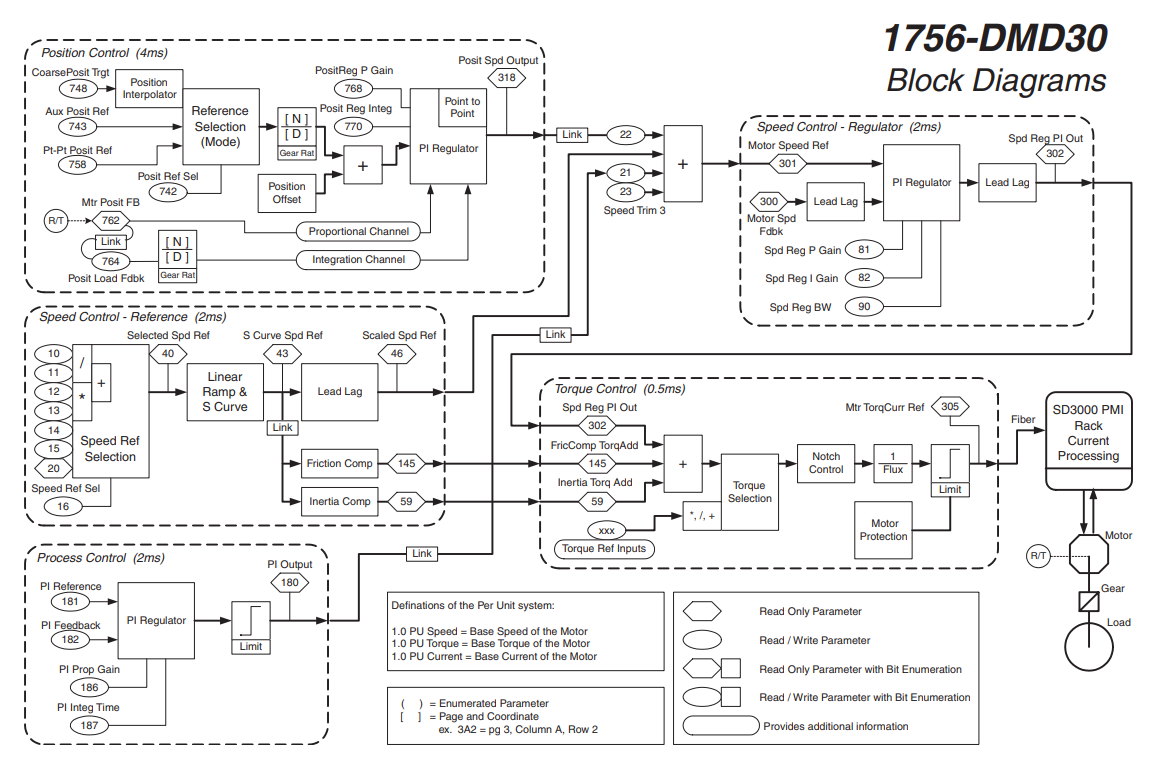

Control Block Diagrams

⇒For more information, please contact us.

FAQ

Q1. How does the AB 1756-DMD30 facilitate precision torque, velocity, and position regulation within Reliance Electric DPS drive systems?
The AB 1756-DMD30 interfaces directly with a Power Module Interface (PMI) chassis and performs outer-loop torque, velocity, and position control for SD3000 drive systems, ensuring accurate motion management and drive coordination.

Q2. Why is the AB 1756-DMD30 considered a critical communication interface between ControlLogix platforms and Distributed Power System (DPS) equipment?
The AB 1756-DMD30 enables seamless integration between ControlLogix controllers and Reliance Electric DPS equipment through fiber-optic communication, supporting efficient data exchange and synchronized drive operation.

Q3. What advanced networking capabilities distinguish the AB 1756-DMD30 in high-performance industrial motion control applications?
The AB 1756-DMD30 communicates with SynchLink nodes via a fiber-optic network, providing deterministic communication, high-speed data transmission, and enhanced immunity to industrial electrical noise.

Q4. To what extent does the AB 1756-DMD30 support operational reliability in demanding industrial environments?
The AB 1756-DMD30 is engineered for harsh conditions, featuring an operating temperature range of 32 to 140°F, a shock rating of 30 G, and an impressive MTBF of approximately 1.7 million hours.

Q5. Which technical characteristics of the AB 1756-DMD30 contribute to its efficiency and compatibility within a ControlLogix chassis architecture?
The AB 1756-DMD30 is a single-slot module powered directly by the ControlLogix chassis, consuming 1.35 A at 5.1V DC while delivering reliable drive control functionality with a maximum power dissipation of 6.96 W.
