Allen Bradley 1746-IO8 Digital I/O Combination Module

Key Functional Attributes of the Allen-Bradley 1746-IO8

If you are unsure how to choose a reliable supplier,
you can choose AMIKON LIMITED.

We are spare parts specialists in industrial automation

l Inventory: A large number of new and discontinued parts with a wide range of brand names.

l Economic Benefits: Competitive Prices and Specific Distributor Discounts

l Reliability: Each product is tested and guaranteed for at least 12 months.

l Speed: Rapid response, efficient delivery.

l Professional: Solid business organization, well-trained engineers.

l International: Global network of partners and preferred suppliers

We always focus on top brand products, innovation of top industrial partners and delivery of new components in the field of industrial automation.

Product Profile

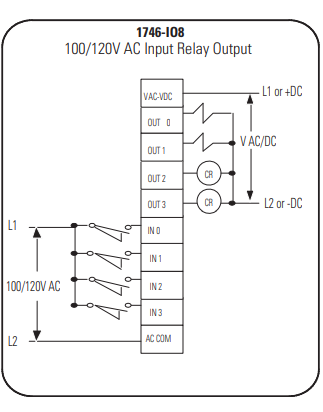

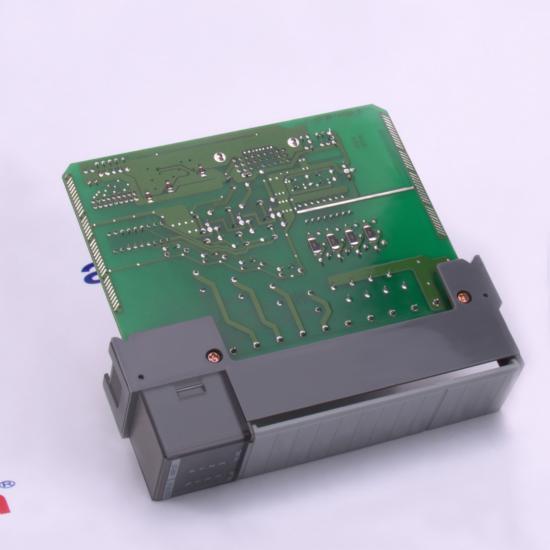

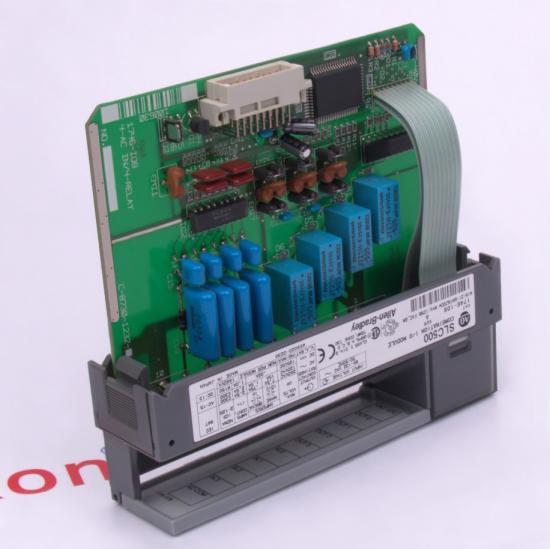

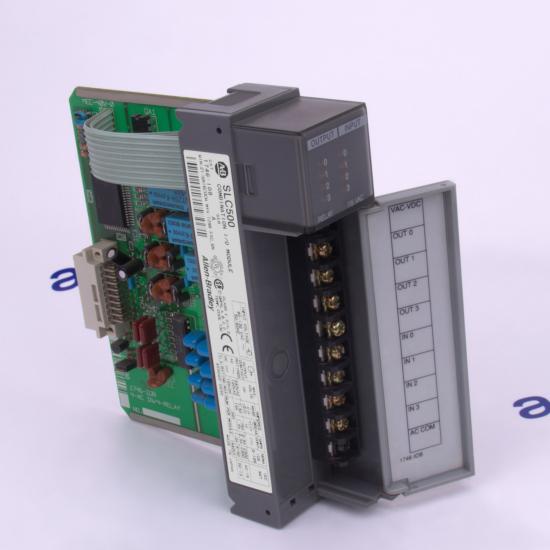

The Allen-Bradley 1746-IO8 SLC 500 digital input/output combination module is a combination input/output module that can be installed in any slot of the 1746 I/O chassis (except slot 0). Each module has four 120V AC inputs and four relay contact outputs, with four contacts on each common terminal. Its operating voltage range (85-132V AC) is similar to most SLC 500 combination I/O modules, with output ratings of 5-65V AC and 5-125V DC at a frequency of 47-53Hz. At 5V DC, its backplane current is 0.03A; at 24V DC, its backplane current is 0.025A. The heat dissipation for all input contacts is 0.27W, and for each output contact, it is 0.133W. The module has a total heat dissipation of 3W, and the signal delay times for the ON and OFF states of the input and output are 35ms and 45ms, respectively.

The relay contact outputs are normally open (N.O.) contacts, with a rated continuous current of 1.5A per contact at 120V AC and 1.2A per contact at 24V DC. The 1746-IO8 has a factory operating temperature range of 0 to 60 °C (32 to 140 °F) and a relative humidity range of 5% to 95%; its specified non-operating temperature range is -40 to 85 °C (-40 to 185 °F). The module has a 30G shock rating and has been tested to withstand a maximum operating vibration of 2.5G at frequencies of 57-200Hz. It has obtained CE, CSA and C-UL certifications and meets the noise immunity level of NEMA standard ICS 2-230.

Technical Frequently Asked Questions

Question1. How does the Allen-Bradley 1746-IO8 optimize signal integrity in industrial environments?

Answer: The Allen-Bradley 1746-IO8 employs advanced filtering mechanisms and noise suppression technology to maintain signal accuracy even in industrial environments with high electrical noise. Its powerful analog circuitry minimizes distortion and improves measurement reliability.

Question2. What configuration methods are available for the Allen-Bradley 1746-IO8?

Answer: The Allen-Bradley 1746-IO8 can be configured using programming software such as RSLogix 500. Users can define scaling parameters, channel characteristics, and operating modes to meet specific process requirements.

Question3. Why is the Allen-Bradley 1746-IO8 considered a versatile solution for industrial automation applications?

Answer: The Allen-Bradley 1746-IO8 combines flexibility, accuracy, and compatibility with the SLC 500 ecosystem, making it suitable for numerous industries, including manufacturing, energy, and process control.

Question4. How does the Allen-Bradley 1746-IO8 improve process control accuracy?

Answer: The Allen-Bradley 1746-IO8 provides stable and accurate analog signal processing, significantly improving control loop performance and ensuring high accuracy and responsiveness in process variable measurement and adjustment.

Question5. How does the Allen-Bradley 1746-IO8 support fault tolerance and system diagnostics?

Answer: The Allen-Bradley 1746-IO8 integrates diagnostic indicators and status monitoring functions, helping to identify anomalies such as signal loss, out-of-range errors, or line faults, thereby enhancing system resilience.
