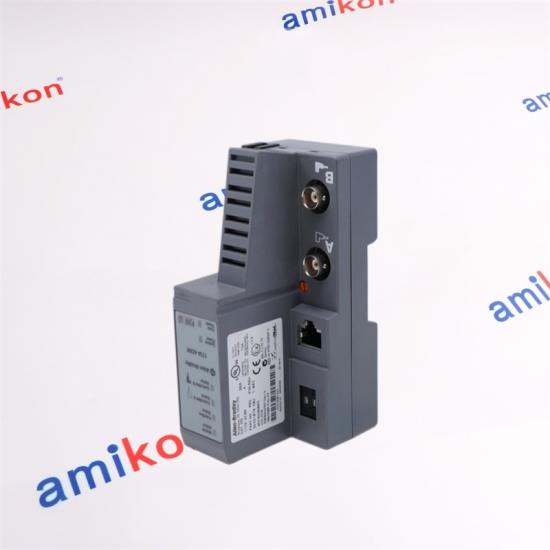

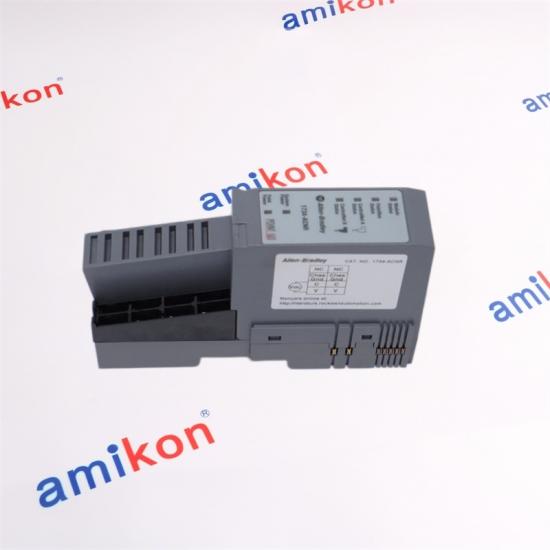

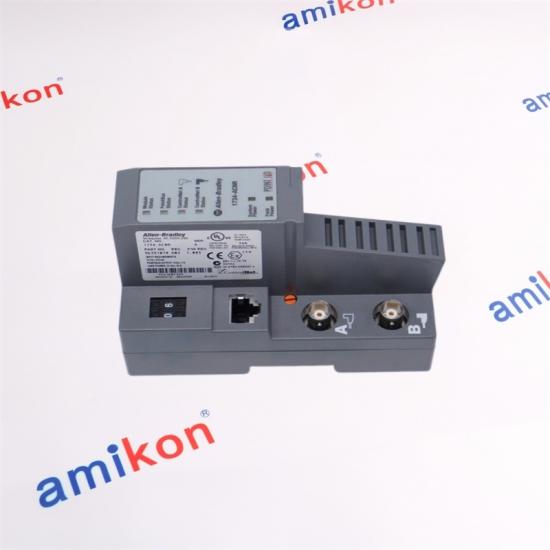

Allen-Bradley 1734-ACNR I/O adapter

About Amikon

1. Amikon is the ideological leader of the world's automation manufacturing industry is committed to promoting global industry exchanges. No matter how complex your problem is, our experienced professional team will use years of industry knowledge to provide you with efficient solutions.

2. More than 20 Language Services

3. Customers are located in 152 countries/regions.

⇒Sales manager: Miya zheng  Email: sales@amikon.cn  WhatsApp: 86-18020776792

Technical specifications

Descripution

The Allen-Bradley 1734-ACNR I/O adapter provides an interface for communicating with and controlling I/O modules from a ControlNet network. This adapter offers several control solutions including high-speed data transfers between I/O devices and controllers. The 1734-ACNR handles redundant media and it supports local communication via the network access port.

With just one 1734-ACNR ControlNet Adapter, multiple I/O control connections can be established. For digital modules, up to 5 rack-optimized, I/O connections can be made per adapter. It also allows up to 25 direct connections for specialty and analog modules. The total number of supported connections in the network depends on the I/O configuration. The I/O capacity can be further expanded to as many as 63 I/O modules using multiple 1734-EP24DC power supplies. It is important to note that the 1734-ACNR can only control I/O modules from Series C or later. The adapter uses a standard 24 Volts DC power supply with 10.2W of maximum power. It has a maximum backplane current of 1 Amps at 5 Volts DC.

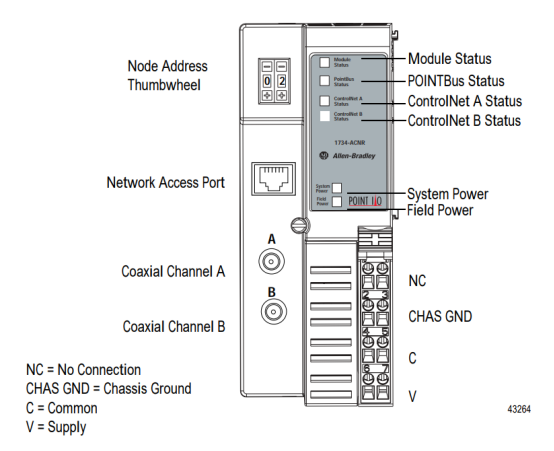

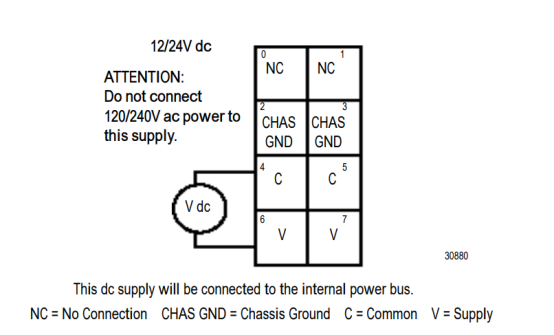

See the figure to guide you in wiring the adapter

For more information, please contact us！

⇒Sales manager: Miya zheng  Email: sales@amikon.cn  WhatsApp: 86-18020776792

FAQ

Question 1: How does the AB 1734-ACNR enhance deterministic communication performance within a ControlNet-based distributed I/O architecture?
Answer: The AB 1734-ACNR functions as a high-integrity ControlNet adapter that ensures deterministic and synchronized I/O data exchange between POINT I/O modules and the ControlNet network. It supports scheduled communication cycles, enabling precise timing control and stable real-time industrial automation performance.

Question 2: What advanced network synchronization mechanisms are embedded in the AB 1734-ACNR to optimize scheduled and unscheduled data handling?
Answer: The AB 1734-ACNR utilizes ControlNet’s dual-traffic model, coordinating both scheduled and unscheduled messaging to maintain predictable network timing. This architecture enhances bandwidth efficiency while preserving strict cyclic execution for critical I/O operations.

Question 3: How does the AB 1734-ACNR manage module-level integration and backplane transparency within a POINT I/O system?
Answer: The AB 1734-ACNR provides seamless backplane communication, automatically recognizing connected POINT I/O modules and mapping them into the network structure. This ensures plug-and-play expandability and reduces configuration complexity in modular automation systems.

Question 4: What diagnostic and fault-detection capabilities are integrated into the AB 1734-ACNR for industrial reliability assurance?
Answer: The AB 1734-ACNR offers comprehensive diagnostic functions, including network health monitoring, module status indication, and fault reporting. These capabilities support rapid troubleshooting, minimize downtime, and improve system availability in mission-critical applications.

Question 5: What configuration parameters are essential when deploying the AB 1734-ACNR in a ControlNet network for optimal performance?
Answer: Proper deployment of the AB 1734-ACNR requires node address assignment, scheduled connection setup, and synchronization with ControlNet network update intervals. Correct configuration ensures stable communication cycles, efficient bandwidth usage, and reliable I/O performance.
