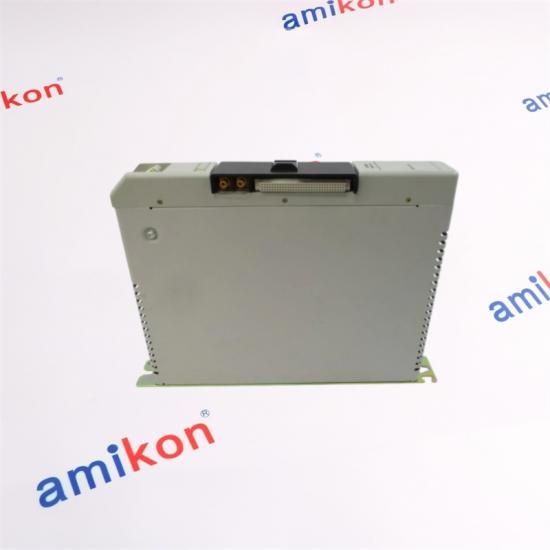

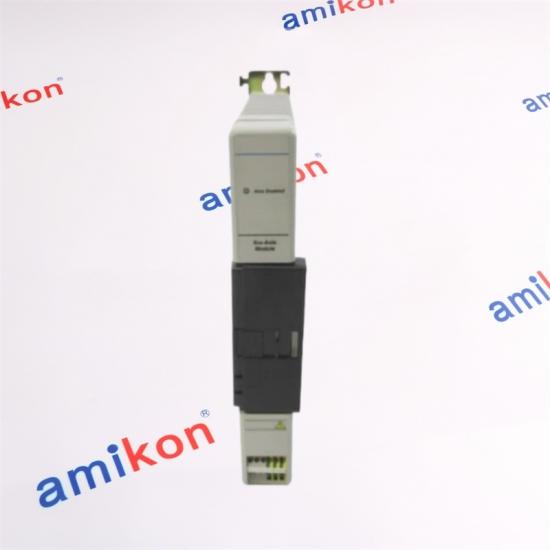

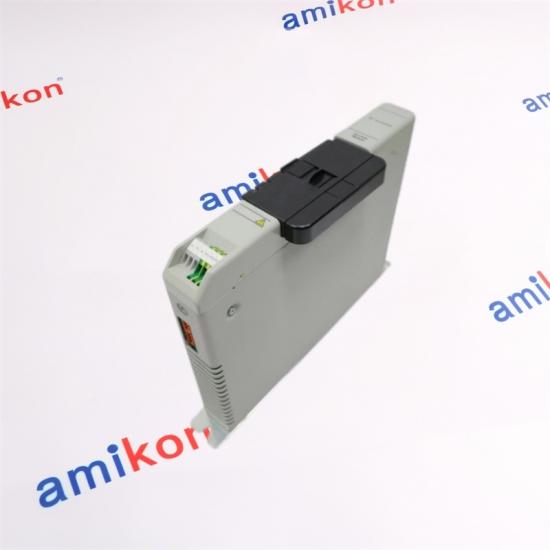

Allen-Bradley 1394C-AM07 Servo Axis Module

About Amikon

1. Amikon is the ideological leader of the world's automation manufacturing industry is committed to promoting global industry exchanges. No matter how complex your problem is, our experienced professional team will use years of industry knowledge to provide you with efficient solutions.

2. More than 20 Language Services

3. Customers are located in 152 countries/regions.

⇒Sales manager: Miya zheng  Email: sales@amikon.cn  WhatsApp: 86-18020776792

Technical specifications

Descripution

The Allen-Bradley 1394C-AM07 is a Servo (Axis) Amplifier product from the 1394 series. This product is a servo AC axis module that functions in one-phase operation. This module converts input DC power into one-phase AC power that has 240 Hertz. The output power rating of this module is 5 kW. The input voltage of this module is varied between 530 and 680 Volts. The 1394C-AM07 has 7.5 Amps continuous current rating. The peak current rating of this module is 15 Amps. Be sure that the devices or motors connected to this module match with the specifications mentioned above. This axis module is an inverter with a heatsink inside the cabinet. The static gain of this axis module is 4.9 RMS A/V. The capacitance available inside this axis module is 2microFaradrad.

The 1394C-AM07 provides features like direct line (transformer-less) connection for three-phase input power, efficient IGBT power conversion, and slide-and-lock connectors. Each system module can configure with up to four axis modules, and each module can interface with a motor. The 1394C-AM07 also saves panel space. Consult the manual before mounting or installing this module. Plan the installation process out before cutting, drilling, and welding the system while it is removed from its enclosure.

FAQ

Question 1: How does the AB 1394C-AM07 optimize servo drive system performance within the Allen-Bradley 1394 motion control architecture, and what core amplification principles does it employ?
Answer: The AB 1394C-AM07 operates as a high-efficiency servo axis amplifier module within the 1394 multi-axis motion platform, delivering precise current regulation and closed-loop torque control. It enhances dynamic response by ensuring high-resolution motor commutation and stable power amplification under varying load conditions.

Question 2: In what manner does the AB 1394C-AM07 ensure thermal stability and power dissipation efficiency in high-demand industrial motion applications?
Answer: The AB 1394C-AM07 incorporates advanced thermal management design and optimized heat dissipation pathways to maintain operational stability during continuous high-load servo operation. Its internal protection logic dynamically mitigates overheating risks, ensuring sustained performance reliability.

Question 3: What diagnostic intelligence and fault detection capabilities are embedded within the AB 1394C-AM07 to support predictive maintenance strategies?
Answer: The AB 1394C-AM07 provides integrated fault monitoring functions such as overcurrent detection, feedback loss alarms, and internal drive status diagnostics. These capabilities enable rapid fault localization and support predictive maintenance in complex motion control systems.

Question 4: How does the AB 1394C-AM07 interface with the broader 1394 motion control system to ensure synchronized multi-axis coordination?
Answer: The AB 1394C-AM07 communicates seamlessly with the 1394 motion controller via high-speed backplane architecture, enabling tightly synchronized multi-axis servo coordination. This ensures deterministic motion execution and precise trajectory control in automated manufacturing environments.

Question 5: What installation and configuration parameters are critical for achieving optimal operational efficiency of the AB 1394C-AM07 in industrial servo systems?
Answer: Proper deployment of the AB 1394C-AM07 requires correct module slot assignment, motor parameter configuration, and tuning of current loop gains within the 1394 system environment. Accurate setup ensures optimal servo responsiveness, reduced settling time, and high-precision motion performance.
