01 / CHANNELS
8 I/O
Up to eight I/O channels, with two field terminals per channel.
|
02 / VOLTAGE
50 V
Maximum rated voltage for the TU835V1 termination unit.
|
03 / CURRENT
2 A
Maximum current per I/O channel; process connection limit is 8 A.
|
|
A wiring interface built around fit

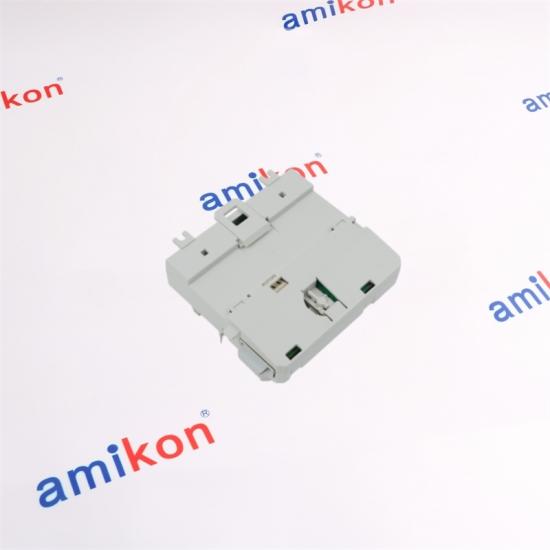

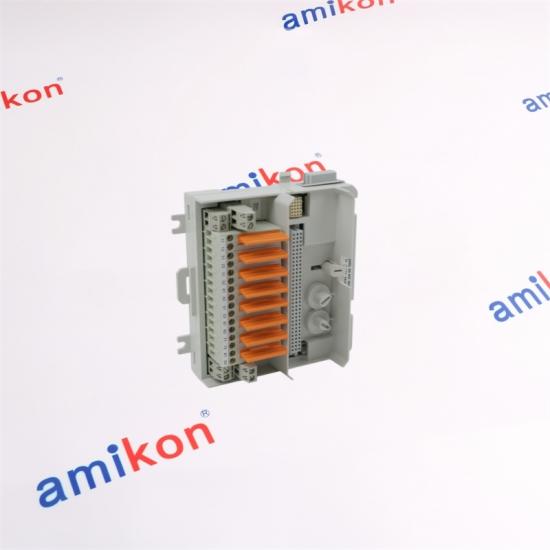

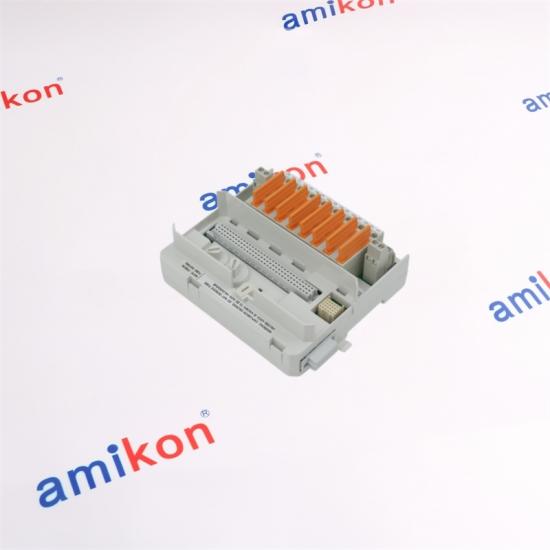

TU835V1 is an extended Module Termination Unit (MTU), not an active signal-processing I/O module. It provides the terminal interface for field wiring and process power while supporting the connection between the I/O module and the ModuleBus. Its eight-channel arrangement provides 16 field process terminals, plus dedicated process-power and 0 V connections. Process voltage can be connected to two individually isolated groups, helping keep wiring arrangements clear during cabinet design and maintenance. The MTU passes position signals onward to the next MTU to establish the I/O module address. Its mechanical keying helps prevent insertion of an incompatible module, while the DIN-rail latch also provides the grounding connection. |
Terminal and installation details
Replacement checkpoint
Confirm the full part number, fitted I/O module, mechanical key positions, field-terminal assignment and process-power grouping before ordering a replacement. |
|
Checking a TU835V1 replacement?
Send the complete part number, installed I/O module and required quantity to help confirm the correct match.
|
EMAIL SALES ↗ WHATSAPP ↗ |
| Unit | Role in the S800 I/O arrangement | Selection focus |
|---|---|---|
| TU835V1 | Extended MTU with up to eight channels, field terminals and process-power connections. | AI810, AI815 or AI845 compatibility; terminal arrangement and 50 V limit. |
| TU830V1 | A 16-channel MTU variant with a broader range of supported S800 I/O modules. | Check its 16-channel layout and wiring needs; it is not a direct substitute based on family alone. |
| TU836V1 | An eight-channel MTU variant with a 250 V rating and a different compatible I/O group. | Do not substitute for TU835V1 without checking voltage rating, connector arrangement and module compatibility. |
|
