| SINGLE PROCESSOR KIT PM866K01 PM866 CPU and required base accessories |
VS | REDUNDANT PROCESSOR KIT PM866AK02 Two PM866AK01 processor units |
| 133 MHz CPU CLASS | AC 800M PLATFORM | MAX 10 ms REDUNDANT SWITCHOVER |
|
PRODUCT IDENTITY
Two order codes, two procurement decisionsPM866K01 3BSE050198R1 is the earlier single processor-unit package built around the PM866 CPU. PM866AK02 3BSE081637R1 is the later redundant package and includes two PM866AK01 units built around PM866A. Both belong to the AC 800M controller family, but the CPU generation, kit composition and redundancy arrangement must remain distinct during purchasing and migration. |
|
| REQUEST A CPU MATCH CHECK | MAIL MIYA | WHATSAPP +86 180 2077 6792 | Sales Manager Miya Zheng |
|

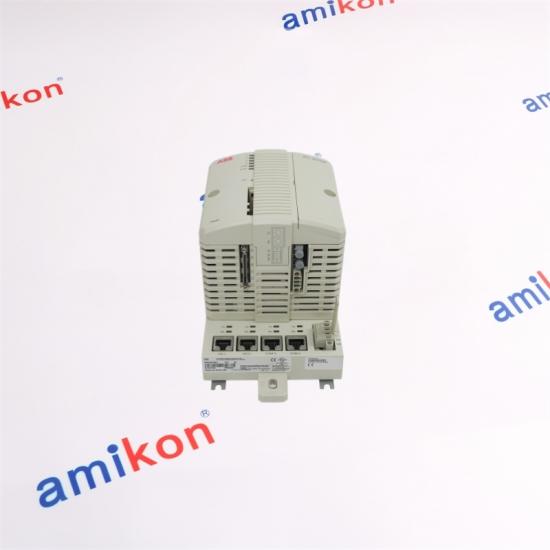

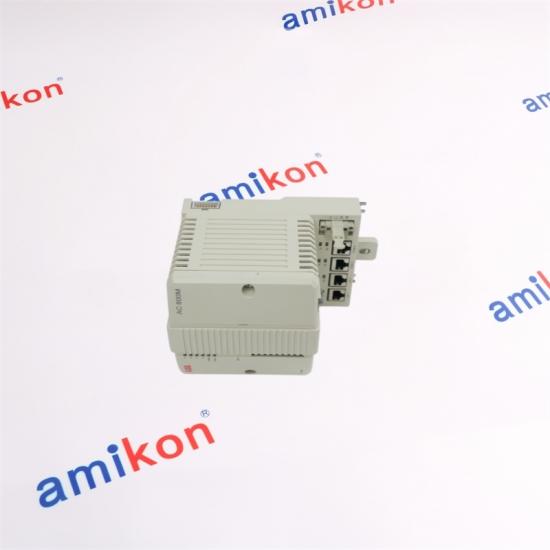

PM866K01 / 3BSE050198R1
Single processor-unit packageThe package includes the PM866 CPU, TP830 baseplate, TB850 CEX-bus terminator, TB807 ModuleBus terminator, TB852 RCU-Link terminator and memory-backup battery. Use case: non-redundant controller positions or exact maintenance replacement where the installed engineering supports PM866. |
PM866AK02 / 3BSE081637R1
Redundant PM866A packageABB defines this package as two PM866AK01 processor units. The pair is intended for supported redundant AC 800M configurations with the required RCU-Link and CEX-bus arrangement. Use case: controller availability designs requiring automatic processor switchover and synchronized redundant operation. |
| ARTICLE | CPU / PACKAGE | REDUNDANCY | SELECTION FOCUS |
|---|---|---|---|
| PM866K01 3BSE050198R1 | PM866 single kit | Single controller package | Exact legacy-system match |
| PM866AK01 3BSE076939R1 | PM866A single kit | Single unit; building block for K02 | Later PM866A generation |
| PM866AK02 3BSE081637R1 | Two PM866AK01 units | Redundant controller package | Availability and switchover |
| PM867K01 / K02 | High Integrity CPU family | Single or redundant kit | Safety-system requirement |
|
