ABB · INDUSTRIAL AUTOMATION
PM891
|
EXACT-MATCH CHECK
MODEL · CODE · REVISION · SYSTEM
Confirm the complete identity before replacement.
|

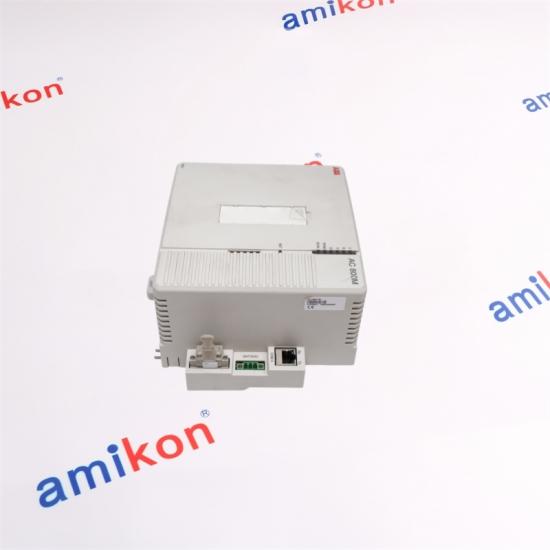

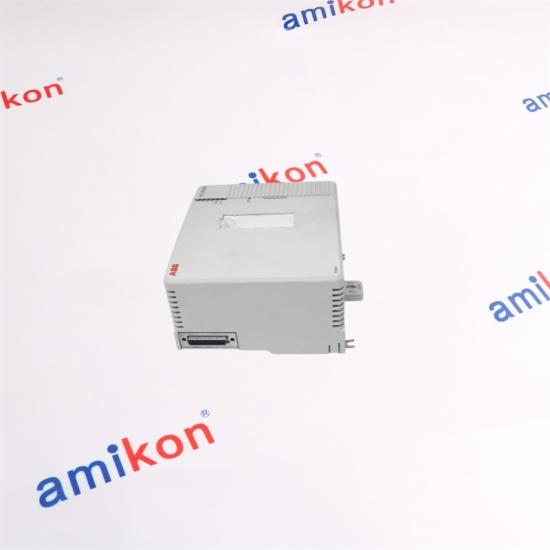

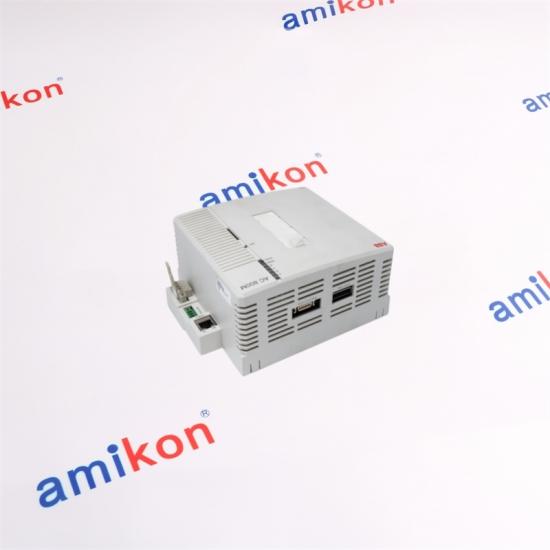

| PM891 executes AC 800M control applications and coordinates communication with control networks, CEX-bus modules and optical Modulebus I/O. It supports redundant controller arrangements and provides two Ethernet channels for the control network. | Brand: ABB Model: PM891 Order code: 3BSE053240R1 Category: AC 800M Processor Module |
|
◈ Installed Role
High-performance AC 800M CPU for deterministic process control, controller redundancy and System 800xA integration. |
⌁ Integration
System identity, revision and connected hardware define the correct replacement path. |
◎ Buyer Check
Send the complete code, revision, quantity, condition requirement and destination. |
Responsive support for scarce automation parts, urgent dispatch and international delivery coordination.
| 1 | Do not order the CPU-module code when the installation requires a complete PM891K01 or redundant PM891K02 package. |
| 2 | Confirm the installed System 800xA and Control Builder release before replacement. |
| 3 | Back up the control application and record firmware and hardware revisions before removing the CPU. |
| 4 | Verify Ethernet, CEX-bus, optical Modulebus and redundancy connections before startup. |
| 01 |
Is PM891 3BSE053240R1 the same as PM891K01?
No. 3BSE053240R1 identifies the CPU module; PM891K01 is a processor-unit kit with order code 3BSE053241R1.
|
| 02 |
Can PM891 operate in a redundant controller pair?
Yes. CPU redundancy is supported, with a stated maximum switch-over time of 10 ms when correctly engineered.
|
| 03 |
Does PM891 support electrical Modulebus?
No. PM891 uses optical Modulebus; electrical Modulebus is not supported by this CPU.
|
| 04 |
What must be matched when replacing PM891?
Match the exact order code, installed hardware revision, firmware, engineering-system version, base arrangement and redundancy role.
|
| 05 |
How much application memory is available?
The CPU has 256 MB RAM, with 208.985 MB stated as available for the application.
|
ABB 07KT92 GJR5250500R0202 is 07 KT 92 Central Unit - 90 Series 24 VDC Power Supply CPU - 14 K FLASH EPROM twelve 24 VDC inputs Eight 24 VDC/ 0.5A transistor outputs 4 analogue inputs 12 bits resolution 2 analogue output 12 bits resolution 2 programmable RS 232 port RS 485 system The Dimensions is 24 cm x 13.7 cm x 8.5 cm, and the weight is 1 lbs 10.1 oz (0.64 kg ).
ABB DSPC172H 5731001-MP Master CPU Module DSPC172H ABB Master CPU Module Model Type: 57310001-MP/2 DSPC 172H ABB Master CPU Module, article number 57310001-MP/2. Firmware prom sub-modules. Dimensions: 5.1 cm x 25.4 cm x 25.4 cm Weight: 2 lbs 8.0 oz (1.1kg ) Series: ABB Master series module
ABB DSQC201 YB560103-AB Robot Module DSQC 201 Robot Module Model Type: YB560103-AB Dimensions: 15.2 cm x 2.5 cm x 22.9 cm Weight: 0 lbs 6.0 oz (0.2kg ) Series: ABB Robots robotics series module
ABB DSQC541 PCB Backplane Controller Card DSQC541 DSQC 541 Backplane Card module Model Type: DSQC541 DSQC 541 Input Voltage: 24V DC Operating Temperature: 0°C to 45°C Storage Temperature: -25°C to 70°C Dimensions: 19.2 cm x 12.5 cm x 22.9 cm Weight: 0 lbs 6.0 oz (0.220 kg ) Series: ABB Robots robotics series module
ABB DSQC608 3HAC12934-1 Robotics Power Supply Module DSQC608 3HAC12934-1 DSQC 608 Model Type: 3HAC12934-1 Input Voltage: 24V DC Operating Temperature: 0°C to 45°C Dimensions: 7.1x13.5x18.5cm Weight: 1.380 kg Series: ABB Robots robotics IRC5 Single series module
ABB DSQC643 3HAC024488-001/01 Controller Panel Board DSQC 643 DSQC643 3HAC024488-001/01 Model Type: 3HAC024488-001/01 Input Voltage: 24V DC Operating Temperature: 0°C to 45°C ROBOTICS FOR IRC5 CABINET WITH FLAT DOORS Dimensions: 28x20.3x2.7cm Weight: 0.400 kg Series: ABB Robots robotics controller IRC5 Single series module
ABB IMDSO14 Digital Output Slave Module Parts Type: Digital Output Slave Model Type: Bailey Infi 90 IMDSO14 Digital Output Slave, 16-Channel Open Collector, Power Requirements +5 VDC, 370 mA Dimensions: 17.8 cm x 5.1 cm x 33.0 cm Weight: 0.200 kg Series: ABB Bailey Infi 90, ABB Bailey Infi 90 and Net 90
ABB MB510 3BSE002540R1 Program Card Interface Module Parts Type: MB510 Program Card Interface Model Type: 3BSE002540R1 Country of Origin: Sweden Dimensions: 2.2x17x10.2cm Weight: 0.1400 kg Series: Advant OCS with Master, Advant Controller 450RMC
