SENSE · DECIDE · SWITCH
ABB DX5611TNE968902R2301
|
||||
|
08
24 VDC INPUTS
Sinking or sourcing field signals
|
TRANSISTOR DIGITAL I/O

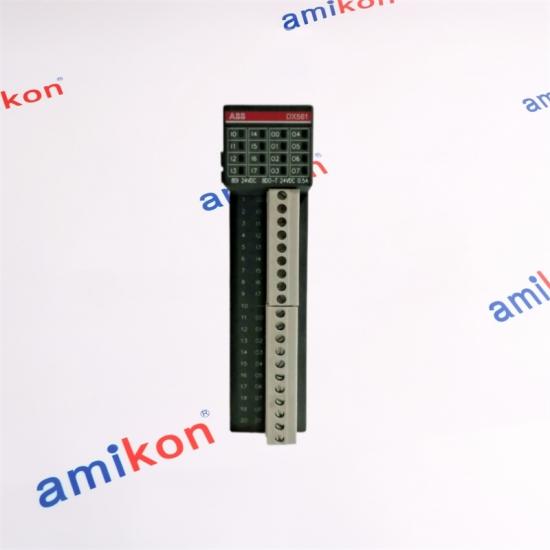

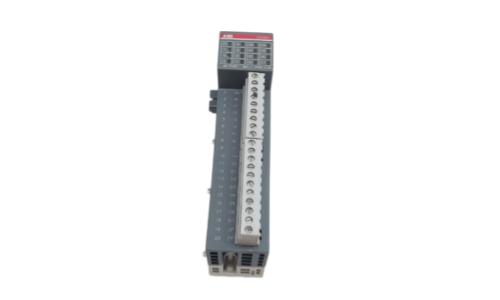

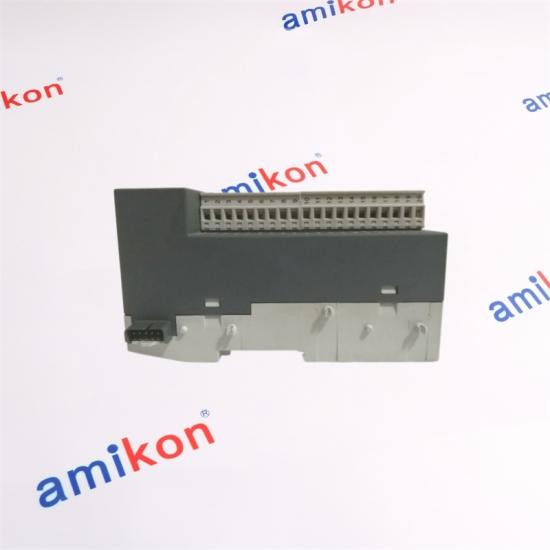

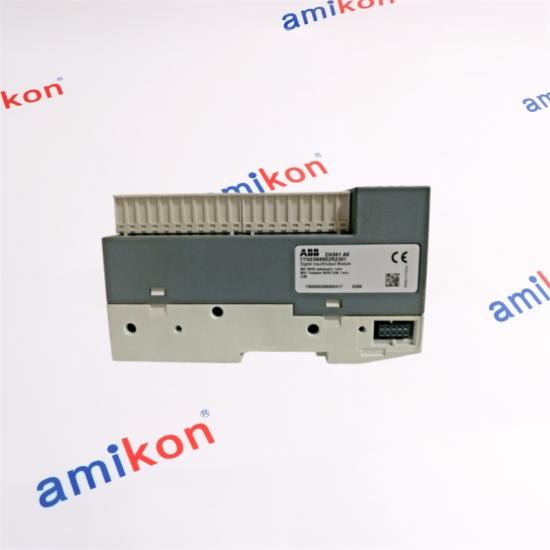

ABB DX561 combines eight 24 VDC sinking or sourcing digital inputs with eight 24 VDC transistor outputs in a compact S500-eCo I/O module. It is suited to machines that need local sensing and actuator switching without dividing the points across separate input and output modules.
|
|||
|
8 DI
Digital inputs
24 VDC sinking or sourcing.
|
8 DO
Transistor outputs
24 VDC switching channels.
|
0.5 A
Per output
Nominal channel current.
|
4 A
Total output
Maximum across eight channels.
|
8 ms
Input delay
Typical response time.
|
24 VDC
Process supply
Logic supplied through I/O bus.
|
| 01 | Balanced I/O role | Eight inputs acquire machine states while eight transistor outputs command compatible DC loads. The fixed split makes the module suitable for compact stations with matched sensing and switching demand. |
| 02 | Input characteristics | The inputs accept 24 VDC sinking or sourcing field wiring. Typical input current is 5 mA at 24 VDC, with a typical input delay of 8 ms. |
| 03 | Output capacity | Each transistor output is rated 0.5 A at 24 VDC, with a maximum total of 4 A across the module. Supply conductors, common groups and load diversity must be sized accordingly. |
| 04 | Load behavior | Resistive output switching follows the controller cycle; inductive-load switching is limited to 0.5 Hz. External demagnetization must be provided for inductive loads. |
| 05 | Protection boundary | The outputs are not short-circuit or overload proof and do not provide automatic current limiting. Branch protection and load design are therefore essential parts of the installation. |
| 06 | Network placement | Module logic power is supplied internally through the I/O bus. Distributed S500-eCo stations can use compatible PROFINET, EtherCAT, PROFIBUS, CANopen, CS31 or Modbus TCP interface modules. |
|
◇
8 FIELD INPUTS
Sinking or sourcing 24 VDC status signals
|
⇄
DX561 INPUT BANK
Acquisition with typical 8 ms delay
|
✦
DX561 OUTPUT BANK
Eight 0.5 A transistor channels
|
☉
8 DC LOADS
Valves, relays and compatible indicators
|
| MODEL | CHANNEL / POWER ROLE | ELECTRICAL FORM | INSTALLATION DISTINCTION |
| DI561 | 8 DI | Input only | 24 VDC |
| DO561 | 8 DO | Transistor output | 24 VDC |
| DX561 | 8 DI + 8 DO | Transistor output | 24 VDC, 0.5 A |
| DX571 | 8 DI + 8 DO | Relay output | AC/DC switching |
|
QUALITY + RESPONSE
Prompt sourcing and clear communication support urgent maintenance.
|
CHECK + PREPARE
Order tracking and careful matching protect shutdown schedules.
|
STOCK + DELIVERY
Current and discontinued automation parts move through a global supply network.
|
| ◇ QUALITY | ⇄ RELIABILITY | ✦ TRANSPARENCY | ☎ SUPPORT |
| 01 | DX561 1TNE968902R2301: Does DX561 1TNE968902R2301 protect its outputs against a short circuit? | No. The specified transistor outputs are not short-circuit or overload proof, so suitable external protection and correct load sizing are required. |
| 02 | DX561 1TNE968902R2301: Can DX561 1TNE968902R2301 switch eight 0.5 A loads continuously? | The per-channel rating is 0.5 A, but the module total is limited to 4 A. Thermal conditions, simultaneous loading and wiring capacity must also remain within limits. |
| 03 | DX561 1TNE968902R2301: Can DX561 1TNE968902R2301 directly switch inductive loads? | Compatible inductive loads can be switched within the stated limits, but external demagnetization is required and the switching frequency is limited. |
| 04 | DX561 1TNE968902R2301: What should be checked before replacing DX561 1TNE968902R2301? | Match the complete order code, hardware index, I/O bus position, wiring terminals, input type, output load current, common grouping and controller configuration. |
| 05 | DX561 1TNE968902R2301: Is DX561 1TNE968902R2301 interchangeable with DX571? | No direct substitution should be assumed. DX561 uses 24 VDC transistor outputs, while DX571 uses relay outputs with different ratings and switching behavior. |
