| General Information | |

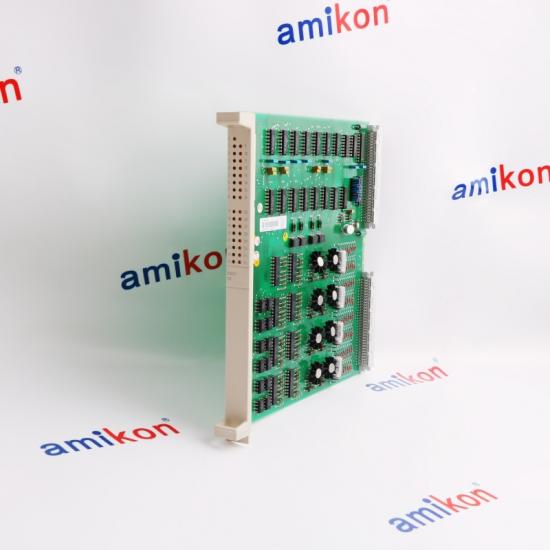

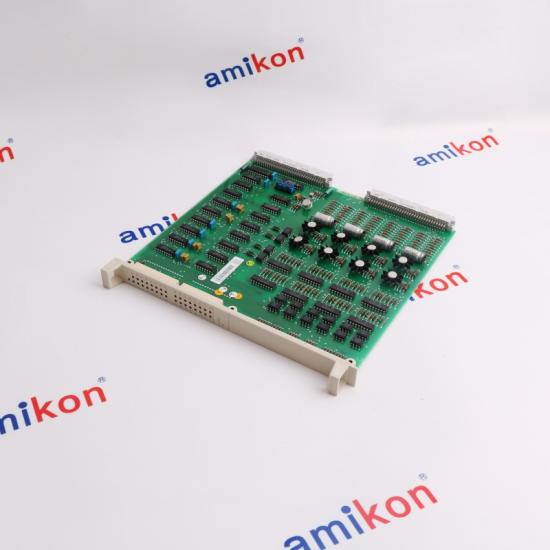

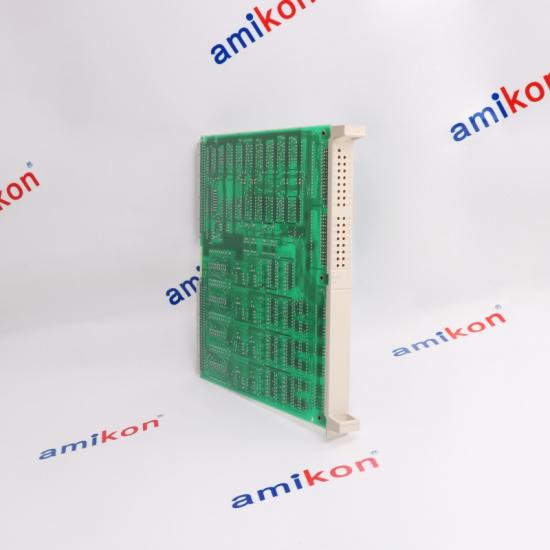

| Product ID: | ABB DSDI110A 57160001-AAA |
| Mounting Type: | DIN rail mounting for easy installation and flexibility in system configuration. |
| Relay Type: | Solid-state relay outputs |
| Ordering | |
| Output Current： | Each output channel can handle up to 500 mA of current |
| weight： | 0.34kg |
| Product Net Depth / Length: |
200mm |
| Product Net Height: |
250mm |
| Product Net Width: |
240mm |
| 1. Purpose and Functionality: | |
| Digital Output Channels： | The DSDO110 module features 8 digital output channels, allowing it to manage multiple output signals simultaneously. This makes it ideal for controlling multiple devices in an automation setup. |
| Communication Interface: | It features an RS-485 communication interface, allowing the module to communicate efficiently over long distances within industrial control networks. This makes it suitable for integration into larger distributed control systems (DCS) or programmable logic controllers (PLC). |
| Low Power Consumption: | Designed to be energy-efficient, the module consumes minimal power, which helps reduce operational costs in large-scale automation systems. |
| 2. Key Attributes: | |
| Operating Temperature Range： | -25°C to +60°C |
| Output Voltage： | DC 24V |
