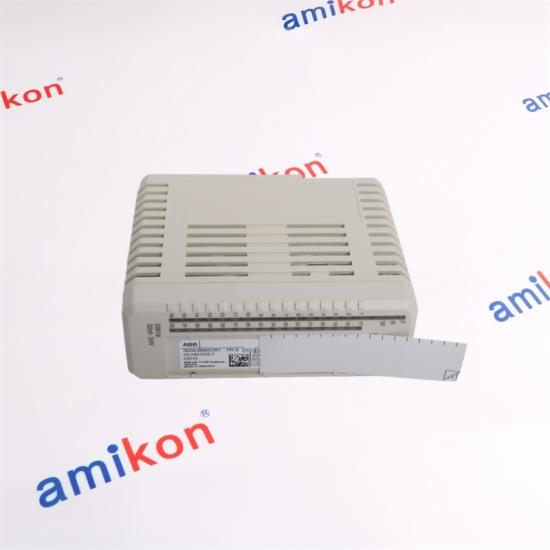

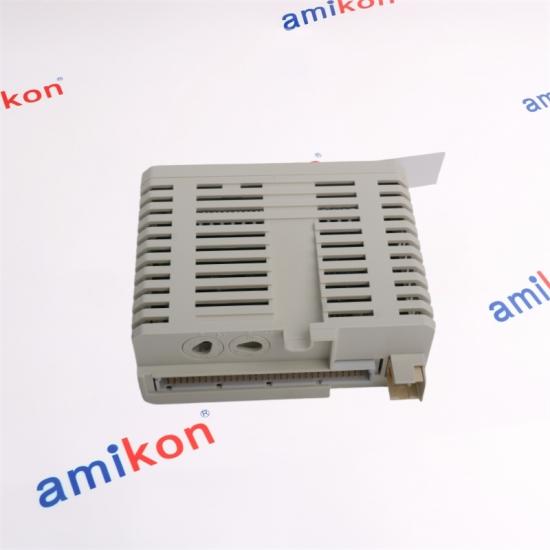

ABB DI818 3BSE069052R1 Digital Input
|
DESCRIPTION |
|
Input voltage range “0”: -30…+5 VDC |
|
Input voltage range “1”: 11…30 VDC |
|
Input current: 4.3 mA @ 24 VDC |
|
Channels: 32, current-sinking, split into 2 isolated groups of 16 |
|
Power dissipation: 3.1 W typical |
|
Field cable length: ≤ 600 m |
|
Dimensions & weight: 45 × 102 × 119 mm, 0.15 kg |
|
APPLICATIONS |
|
High-density status acquisition on packaging lines—32 channels read photo-sensors, e-stop buttons and guard switches in two isolated banks, letting one PLC rack monitor twice as many devices without extra modules. |
|
Remote pump-skid monitoring in water plants—group isolation keeps 24 V signals from submersible level switches free of ground loops, while 600 m cable rating reaches from river bank to control hut without signal repeaters. |
|
SIL-rated burner management—selectable 2 ms filter captures fast flame-detector pulses, and per-group voltage supervision alarms instantly if a field fuse blows, keeping dual-fuel boilers compliant with IEC 61511. |
|
Paint-shop conveyor tracking—current-sinking inputs interface directly to PNP proximity sensors; IP20 module rides inside a sealed panel, feeding 32 car-body position bits every 4 ms to the 800xA batch engine for colour-change timing. |
