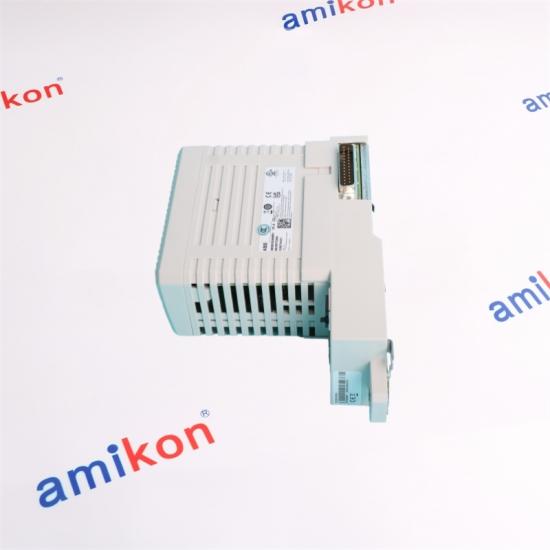

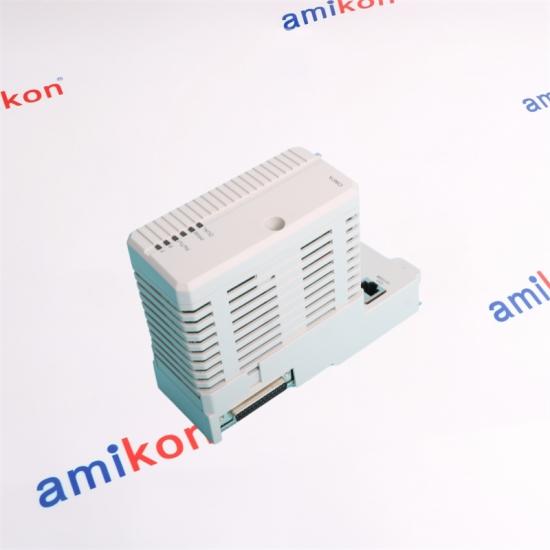

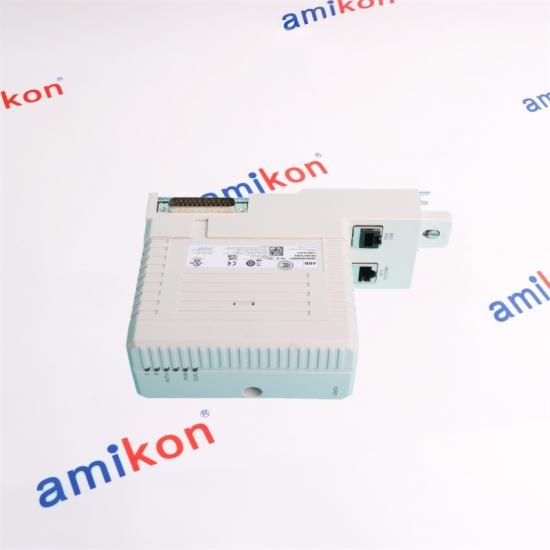

ABB CI867AK01 3BSE092689R1 Interface Module
|
DESCRIPTION |
|
Supply: 24 VDC ±10 % via CEX-Bus, 3 W |
|
Ethernet: 1×RJ-45, 100 Mbps full-duplex, auto-MDIX |
|
Protocol: Modbus-TCP master & slave, up to 70 slaves / 8 masters |
|
Isolation: 2 500 V RMS channel-to-bus |
|
Operating temp: 25…+70 °C |
|
Protection: IP20, hot-swap |
|
Size & weight: 127 × 186 × 59 mm, 0.12 kg |
|
APPLICATIONS |
|
Oil-refinery DCS expansion—single CI867AK01 links AC 800M to 50 remote VFDs over Modbus-TCP, eliminating extra gateways and cutting commissioning time by 30 %. |
|
Power-plant SCADA tie-in—acts as slave to 3rd-party IEC-61131 PLC, pushing 200 ms turbine-vibration data into 800xA historian while operating reliably at 70 °C near boilers. |
|
Smart-building HVAC retrofit—uses existing Ethernet backbone to pull chiller set-points, fan status and energy meters into one ABB station, saving 2 km of hardwired I/O. |
|
Water-treatment skid redundancy—dual modules in hot-standby keep pump station running even if one cable fails; automatic switch-over < 1 s ensures EPA flow compliance without extra PLC code. |
