ABB / COOLING SYSTEM
D2E146
-AP47-C3
AC CENTRIFUGAL FAN

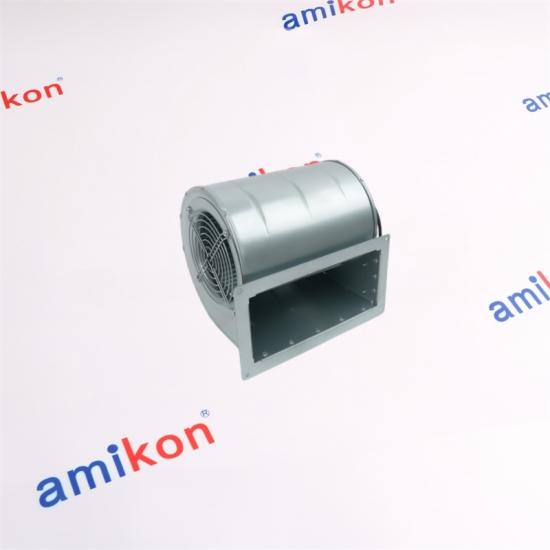

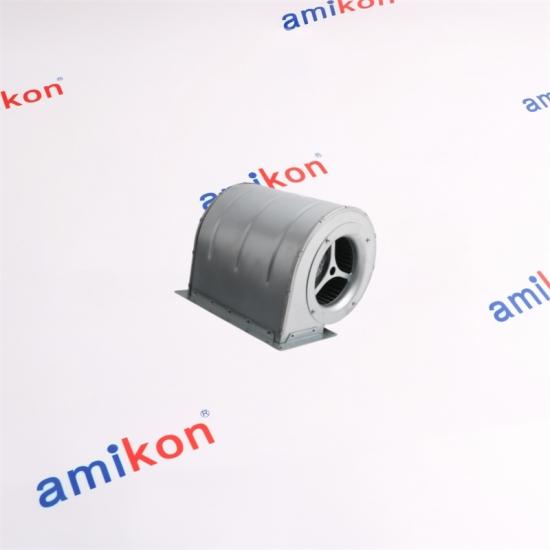

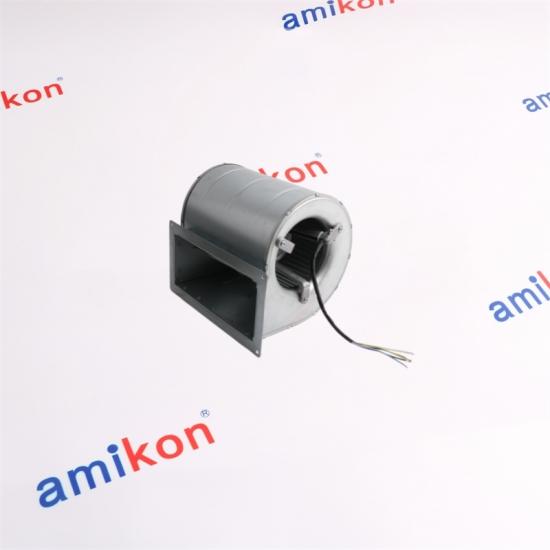

Forward-curved centrifugal fan with dual intake and housing, using the M2E068-EC motor.
1~ AC 230 VAC
|
TECHNICAL CORE
M2E068-EC · AC DRIVE
|
OPERATING DATA
50 Hz
2050 rpm
300 W · 1.31 A
60 Hz
2550 rpm
330 W · 1.45 A
TEMPERATURE
−25°C min.
Max. 50°C at 50 Hz / 45°C at 60 Hz
|
|
03 / OPERATING RELATIONSHIP
50 Hz VS 60 Hz
The same D2E146-AP47-C3 model has distinct nominal values at 50 Hz and 60 Hz. This difference is important when checking a replacement against the electrical frequency of the installation.
The nominal speed rises from 2050 rpm at 50 Hz to 2550 rpm at 60 Hz, while power consumption changes from 300 W to 330 W.
|
Electrical frequency should be verified before selecting a replacement unit.
|
|
◉
Electrical Compatibility
Check the installation against the stated 230 VAC single-phase supply and the required operating frequency.
|
◇
Airflow Arrangement
The D2E146-AP47-C3 is a dual-intake centrifugal configuration with a housing, so the mechanical airflow path should be checked during replacement.
|
○
Temperature Range
The published minimum ambient temperature is −25°C. Maximum ambient temperature is 50°C at 50 Hz and 45°C at 60 Hz.
|
|
AMIKON GLOBAL SUPPORT
Need D2E146-AP47-C3?
Contact our sales team for availability, quotation, delivery arrangements and replacement compatibility checks.
Delivery 3–5 Days 12 Months Warranty
|
|
Can D2E146-AP47-C3 replace another 230 VAC centrifugal fan directly?
Not automatically. The replacement should match the 230 VAC single-phase supply, operating frequency, mechanical housing arrangement, dual-intake configuration, motor specification and airflow requirements of the installation.
|
What should buyers verify for D2E146-AP47-C3 when the machine operates at 60 Hz?
At 60 Hz, the nominal data changes to 2550 rpm, 330 W and 1.45 A. The installation should therefore be checked against the 60 Hz electrical and thermal operating conditions.
|
|
Why does the D2E146-AP47-C3 specification distinguish 50 Hz and 60 Hz?
The motor operates at different nominal speed and electrical loading at the two frequencies. The published values are 2050 rpm / 300 W / 1.31 A at 50 Hz and 2550 rpm / 330 W / 1.45 A at 60 Hz.
|
Is the D2E146-AP47-C3 suitable where the ambient temperature can reach 50°C?
The published maximum ambient temperature is 50°C at 50 Hz. At 60 Hz, the stated maximum is 45°C, so the operating frequency must be considered when checking the application.
|
|
What capacitor specification should be checked when sourcing D2E146-AP47-C3?
The stated motor capacitor is 8 µF with a 400 VDB capacitor voltage rating. This value should be considered together with the complete motor and electrical configuration when checking a replacement.
|
|
|
