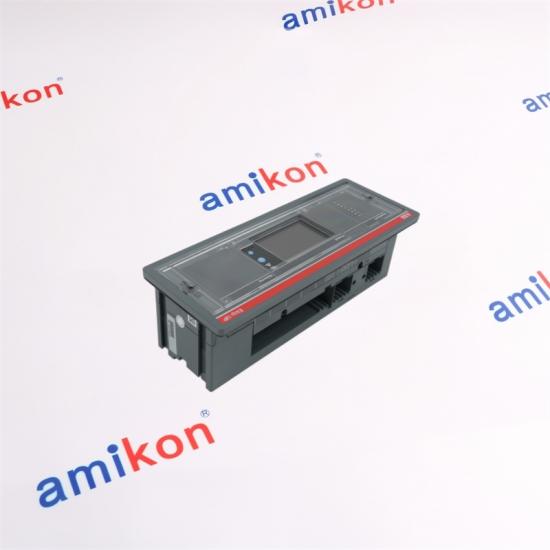

ABB 1SDA083360R1 Ekip UP Protect Digital Unit

ABB 1SDA083360R1
ABB 1SDA083360R1
ABB 1SDA083360R1

ABB 1SDA083360R1 Ekip UP Protect Digital Unit

Calculate shipping
Quotation Request



ABB / Ekip UP
1SDA083360R1
EKIP UP PROTECT
Digital protection unit for low-voltage electrical systems, combining monitoring with protection functions.
THREE CORE RATINGS
VOLTAGE
1000
V max
CURRENT
100–6300
A
FREQUENCY
50/60
Hz
The Ekip UP Protect version adds intelligent protection functions to the Ekip UP platform.
AMIKON / INDUSTRIAL AUTOMATION
We have a wide range of brands and products for various industries, we provide services to tens of thousands of customers around the world.
MIYA ZHENG · SALES MANAGER EMAIL SALES PHONE / WHATSAPP



ABB · EKIP UP SERIES
1SDA083360R1
Ekip UP Protect Digital Unit
LOW-VOLTAGE DIGITAL PROTECTION
Designed for monitoring and protection functions in low-voltage electrical systems, with external current sensors, interchangeable Rating Plug and dedicated Ekip Supply architecture.
ENGINEERING RANGE
1000 V
maximum operating voltage
6300 A
upper operating current
50–60 Hz
operating frequency
IP40
protection degree

01 / TECHNICAL CORE
Protection Architecture & Electrical Scope

01 — DIGITAL PROTECTION
The Ekip UP Protect version combines electrical monitoring with intelligent protection functions for low-voltage distribution applications. It belongs to the Ekip UP digital-unit family and is intended to upgrade or digitalize compatible low-voltage installations.
Protection Monitoring Power Quality
OPERATING VOLTAGE
Up to 1000 V
OPERATING CURRENT
100–6300 A
FREQUENCY
50–60 Hz
PROTECTION DEGREE
IP40
PRODUCT FAMILY
Ekip UP
VERSION
Protect



02 / Ekip UP FAMILY
One Platform,
Different Functional Levels
The Ekip UP family uses the same digital-unit concept while different versions add distinct functional roles. The Protect version is positioned between basic monitoring and the more advanced protection-and-control configurations.
MONITOR
1SDA083359R1
Monitoring focus
PROTECT
1SDA083360R1
Monitoring + intelligent protection
PROTECT+
1SDA083361R1
Advanced protection
CONTROL
1SDA083362R1
Load management
CONTROL+
1SDA083363R1
Protection + control
Ekip Supply
24–48 VDC power-supply module, order code 1SDA074173R1.
Rating Plug
Interchangeable current-rating selection from the Ekip UP accessory range.
Current Sensors
External current sensors are part of the required Ekip UP configuration.
03 / CONFIGURATION LOGIC
Build the Protection Chain Correctly
01
CURRENT SENSORS
Select the appropriate external sensor type and current capability for the installation.
02
RATING PLUG
The interchangeable Rating Plug establishes the applicable current rating within the Ekip UP architecture.
03
POWER SUPPLY
The Ekip UP unit uses the dedicated Ekip Supply 24–48 VDC module.

OPEN SENSOR OPTIONS
ABB's Ekip UP architecture supports open-style current sensors. The technical ordering range includes:
Ø120 mm · 4-pole · up to 4000 A
Ø200 mm · 4-pole · up to 4000 A
Ø290 mm · 4-pole · up to 6300 A
04 / DIRECT SUPPORT
Talk to Our
Sales Team
For model verification, quantity planning, delivery requirements and commercial enquiries, contact our sales manager directly.
EMAIL
sales@amikon.cn
PHONE / WHATSAPP
86-18020776792
SALES MANAGER
Miya zheng
05 / BUYER QUESTIONS
5 Questions Before Replacement
Can 1SDA083360R1 be selected without checking the external current sensors?
No. The Ekip UP Protect unit forms part of a configured measuring and protection chain. The compatible current sensors, Rating Plug, power supply, voltage connections and installed switchgear arrangement should be matched before replacement.
Which power supply is required for 1SDA083360R1?
The Ekip UP architecture uses the dedicated Ekip Supply 24–48 VDC module, order code 1SDA074173R1. The supply arrangement should be checked as part of the complete installation configuration.
What makes 1SDA083360R1 different from Ekip UP Monitor?
The two versions occupy different functional levels. Ekip UP Monitor, 1SDA083359R1, is the monitoring version, while 1SDA083360R1 is the Protect version and adds intelligent protection functions.
What should be checked when replacing 1SDA083360R1 in an existing panel?
Check the complete product code, current-sensor type, Rating Plug range, auxiliary supply, voltage measurement arrangement, optional modules, protection settings and connected switching equipment before commissioning.
Does 1SDA083360R1 cover the same role as Ekip UP Protect+?
No. ABB assigns separate order codes to Ekip UP Protect and Ekip UP Protect+. The Protect version is 1SDA083360R1, while Protect+ is 1SDA083361R1 and provides a higher functional level. The two should therefore be selected according to the required protection architecture rather than treated as interchangeable order codes.
