Model: CDP312R
Description: Control Panel
Delivery: DHL/FEDEX/UPS/TNT/ARAMEX
|
Contact |
|
Whatsapp/mobile:86-18020776792 Email : sales@amikon.cn |
|
Description |
|

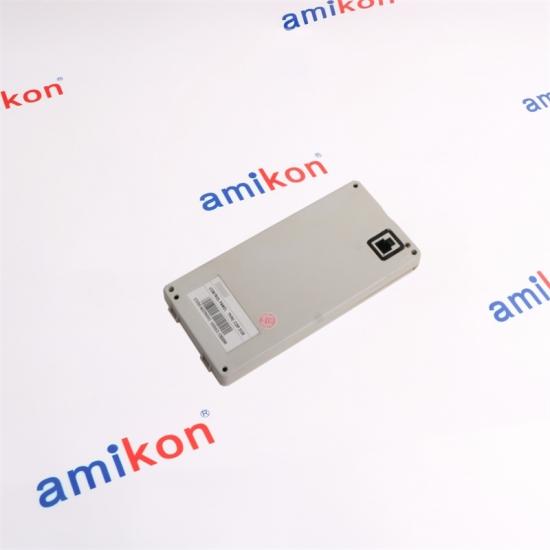

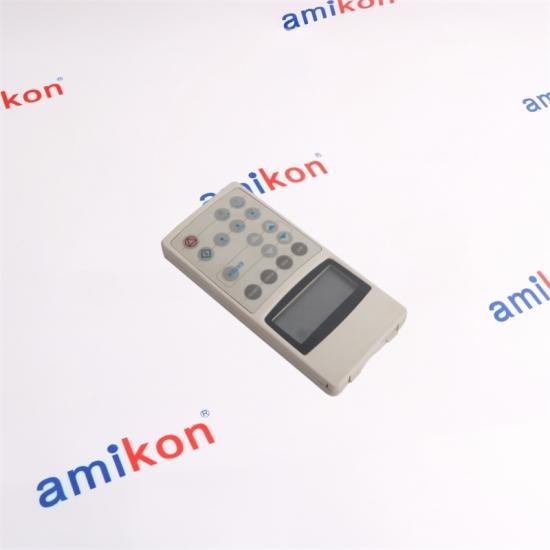

The ABB CDP-312R (3AUA0000036524) is a hand-held, multilingual HMI panel for ABB drives of the ACS355/ACS550/ACS580 families. It offers a 128 × 64 pixel back-lit LCD, six soft-keys and a rotary scroll wheel, and is powered directly from the drive’s RJ-45 interface (5 V, <100 mA). The unit supports parameter upload/download via internal 8 MB Flash, on-line diagnostics, real-time trending and quick-start wizards that guide users through auto-tune. An IP 54 rubber boot and 1 m drop-proof housing make it suitable for on-site commissioning. |
|
Application |
|
Field commissioning – upload/download of parameter sets while standing at the motor. Maintenance diagnostics – read fault logs, monitor current, torque and temperature trends. Multi-drive plants – hot-plug the same CDP-312R into any ACS-x50 cabinet for walk-around checks. OEM start-up – quick-start wizard guides local technicians without Drive Composer PC. Stock spare – keep one panel per site to avoid PC-based tools in hazardous or hygienic areas. |
|
Original new and one year warranty |
|
●.Packaging Details: New and Original Factory Sealed ●.Lead Time: 2-3 days ●.Supply Ability: 200 Piece/Pieces per Month ●.Payment Term: T/T Wire Transfer ●.Warranty: 12 Months Warranty ●.Shipment : Worldwide Fast Shipment |
|
Best selling |
||
|
6ES7322-1BL00-0AA0 |
125720-01 |
8114-4001 |
|
6ES7392-1AM00-0AA0 |
125760-01 |
8164-4002 |
|
6ES7153-2BA02-0XB0 |
125768-01 |
8172-4003 |
|
6ES7321-1BH02-0AA0 |
128229-01 |
8178-4002 |
|
6ES7531-7KF00-0AB0 |
128240-01 |
8211-4303 |
|
6EP1334-3BA10 |
133396-01 |
8261-4154 |
|
6EP1336-3BA00 |
146031-01 |
8261-4155 |
|
6ES7392-1AJ00-0AA0 |
330103-00-04-10-02-00 |
8263-4154 |
|
6ES7214-1AG40-0XB0 |
330104-00-06-05-02-00 |
8300-4003 |
|
6ES7422-1BL00-0AA0 |
330105-02-12-05-02-00 |
8200-4006 |
|
6ES7332-5HF00-0AB0 |
330106-05-30-05-02-00 |
8333-4001 |
|
6SE7033-5GJ84-1JC0 |
330106-05-30-10-02-05 |
8108-4003 |
ABB 07KT92 GJR5250500R0202 is 07 KT 92 Central Unit - 90 Series 24 VDC Power Supply CPU - 14 K FLASH EPROM twelve 24 VDC inputs Eight 24 VDC/ 0.5A transistor outputs 4 analogue inputs 12 bits resolution 2 analogue output 12 bits resolution 2 programmable RS 232 port RS 485 system The Dimensions is 24 cm x 13.7 cm x 8.5 cm, and the weight is 1 lbs 10.1 oz (0.64 kg ).
ABB DSPC172H 5731001-MP Master CPU Module DSPC172H ABB Master CPU Module Model Type: 57310001-MP/2 DSPC 172H ABB Master CPU Module, article number 57310001-MP/2. Firmware prom sub-modules. Dimensions: 5.1 cm x 25.4 cm x 25.4 cm Weight: 2 lbs 8.0 oz (1.1kg ) Series: ABB Master series module
ABB DSQC201 YB560103-AB Robot Module DSQC 201 Robot Module Model Type: YB560103-AB Dimensions: 15.2 cm x 2.5 cm x 22.9 cm Weight: 0 lbs 6.0 oz (0.2kg ) Series: ABB Robots robotics series module
ABB DSQC541 PCB Backplane Controller Card DSQC541 DSQC 541 Backplane Card module Model Type: DSQC541 DSQC 541 Input Voltage: 24V DC Operating Temperature: 0°C to 45°C Storage Temperature: -25°C to 70°C Dimensions: 19.2 cm x 12.5 cm x 22.9 cm Weight: 0 lbs 6.0 oz (0.220 kg ) Series: ABB Robots robotics series module
ABB DSQC608 3HAC12934-1 Robotics Power Supply Module DSQC608 3HAC12934-1 DSQC 608 Model Type: 3HAC12934-1 Input Voltage: 24V DC Operating Temperature: 0°C to 45°C Dimensions: 7.1x13.5x18.5cm Weight: 1.380 kg Series: ABB Robots robotics IRC5 Single series module
ABB DSQC643 3HAC024488-001/01 Controller Panel Board DSQC 643 DSQC643 3HAC024488-001/01 Model Type: 3HAC024488-001/01 Input Voltage: 24V DC Operating Temperature: 0°C to 45°C ROBOTICS FOR IRC5 CABINET WITH FLAT DOORS Dimensions: 28x20.3x2.7cm Weight: 0.400 kg Series: ABB Robots robotics controller IRC5 Single series module
ABB IMDSO14 Digital Output Slave Module Parts Type: Digital Output Slave Model Type: Bailey Infi 90 IMDSO14 Digital Output Slave, 16-Channel Open Collector, Power Requirements +5 VDC, 370 mA Dimensions: 17.8 cm x 5.1 cm x 33.0 cm Weight: 0.200 kg Series: ABB Bailey Infi 90, ABB Bailey Infi 90 and Net 90
ABB MB510 3BSE002540R1 Program Card Interface Module Parts Type: MB510 Program Card Interface Model Type: 3BSE002540R1 Country of Origin: Sweden Dimensions: 2.2x17x10.2cm Weight: 0.1400 kg Series: Advant OCS with Master, Advant Controller 450RMC
