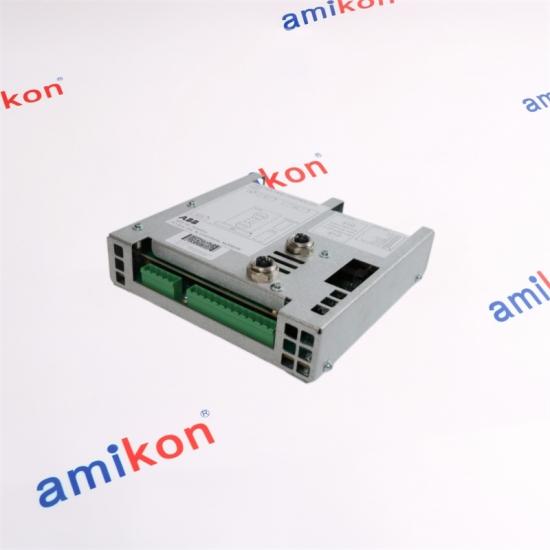

ABB 3HNA029043-001 HVC-02C High Voltage Controller

ABB 3HNA029043-001
ABB 3HNA029043-001
ABB 3HNA029043-001

ABB 3HNA029043-001 HVC-02C High Voltage Controller

Calculate shipping
Quotation Request


ABB ROBOTICS COMPONENT
3HNA029043-001

HVC-02C high-voltage controller for ABB robotic electrostatic painting applications.
CONTROLLER
HVC-02C
SYSTEM ROLE
High-Voltage Control
HV OUTPUT
−60 kV system class
CONTROLLER LINK
HVC-02B / HVC-02C

KEY PERFORMANCE
Designed for ABB electrostatic painting equipment where controlled high-voltage operation is essential to the coating process.
HV SYSTEM
−60 kV
constant voltage
HV CURRENT
100 μA
maximum class
APPLICATION
Painting
robotic coating
ROTATION SYSTEM Supports ABB high-speed electrostatic painting equipment up to 40,000 rpm at the application level.
Reliable automation support
Keep critical painting equipment moving with the right replacement part.
 CONTACT AMIKON



ABB ROBOTICS / HIGH VOLTAGE CONTROL
3HNA029043-001
HVC-02C High Voltage Controller

A high-voltage control component associated with ABB robotic electrostatic painting systems, including the RB1000i-S process. ABB identifies HVC-02C as one of the dedicated high-voltage controller options for this painting equipment.
HVC-02C Painting process control
PRODUCT ID
3HNA029043-001
TYPE HVC-02C
FUNCTION High Voltage Control
PROCESS Electrostatic Painting
SYSTEM FAMILY ABB Robotic Painting
HV CONTROL
Dedicated Painting Controller
PROCESS LINK
RB1000i-S
SOFTWARE
IPS 4.60.34 or later
PART NUMBER
3HNA029043-001
TECHNICAL PROFILE
Designed around
high-voltage
painting control.

The HVC-02C belongs to the dedicated controller family used with ABB robotic electrostatic painting equipment. Its role is closely tied to high-voltage operation rather than general-purpose robot motion control.
CORE PROCESS VALUES
High-voltage controller
HVC-02B / HVC-02C / H311CC-SE family
RB1000i-S application
Dedicated controller requirement
Applied voltage in supported painting process
-60 kV constant
Maximum HV current
100 μA with constant-current mode
Supported process equipment
RB1000i-S
Controller software condition
IPS 4.60.34 or later
The process values above describe the associated RB1000i-S painting system rather than unrestricted output ratings for every possible installation of the controller.
APPLICATION & MAINTENANCE
Where this part matters
3HNA029043-001 is associated with ABB robotic painting applications where high-voltage control is an essential part of the electrostatic coating process. ABB's RB1000i-S system uses HVC-02B/-02C or H311CC-SE as the dedicated high-voltage controller.
Why maintenance teams search for it
Loss of high-voltage control can interrupt the electrostatic painting process and prevent the intended coating operation from continuing normally.
Why replacement matching matters
The controller belongs to a dedicated painting architecture, so software level, process equipment and controller family should be checked before ordering.
DOWNTIME RISK
High-voltage control failure can stop the painting sequence.
For maintenance planning, the practical priority is to verify the exact controller designation, associated painting equipment and software condition before a production interruption becomes extended.
PURCHASE CHECK
Send the right details. Get a faster quote.
For 3HNA029043-001 enquiries, please provide the following items so the requested configuration can be checked efficiently.
Part Number Quantity
Destination Required Date
Machine / System
SALES MANAGER
Miya zheng
EMAIL SALES@AMIKON.CN WHATSAPP 86-18020776792
DELIVERY
3–5 Days
WARRANTY
12 Months
PACKAGING
Brand New
DELIVERY WAY
E-packing / FedEx / EMS / TNT / DHL / UPS
PAYMENT
T/T
BUYER FAQ
5 questions worth checking before purchase
Q1. Is 3HNA029043-001 the right controller for an RB1000i-S painting installation?
ABB identifies HVC-02B/-02C as dedicated high-voltage controller options for the RB1000i-S. Before purchasing, match the installed controller designation and the actual painting configuration rather than relying only on a similar-looking part number.
Q2. Can 3HNA029043-001 be treated as a universal ABB robot controller?
No. Its role is associated with dedicated high-voltage painting control. It should not be selected as a general robot motion or general-purpose control replacement without checking the actual process architecture.
Q3. Which software condition should be checked when buying 3HNA029043-001?
For the RB1000i-S application, ABB specifies HVC-02B/-02C with IPS 4.60.34 or later. Confirming the installed IPS level can reduce the risk of ordering a controller for a configuration that does not meet the required software condition.
Q4. Why is 3HNA029043-001 important when an electrostatic painting line stops?
The associated painting process depends on dedicated high-voltage control. A controller fault can therefore affect the electrostatic coating sequence and create production downtime, making an exact spare particularly valuable for maintenance planning.
Q5. What should buyers verify before replacing 3HNA029043-001 with another HVC controller?
Verify the complete part number, controller designation, associated painting equipment, IPS level and existing system configuration. HVC-02B, HVC-02C and H311CC-SE are identified by ABB within the RB1000i-S controller context, but that does not mean every variant is interchangeable in every installation.
