Summary

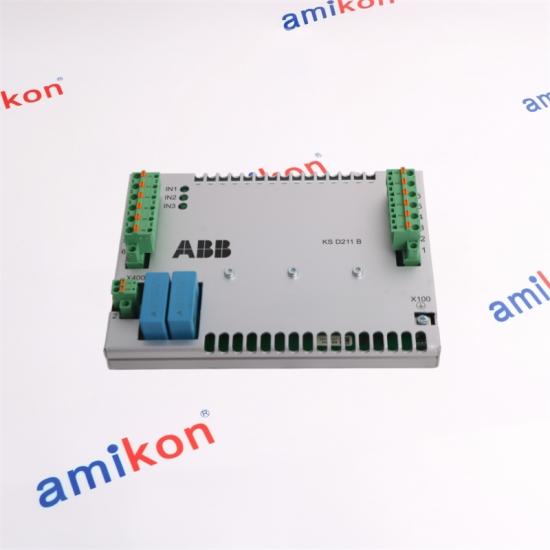

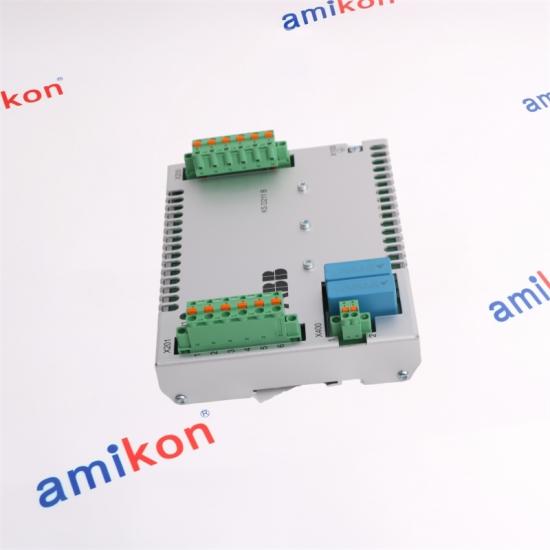

3BHE022455R1101 is an ABB KSD211B input-coupling unit (ICU) that converts 220 V AC or 24 V DC power into isolated 0–10 V DC signals, giving UNITROL 6000 and AC500 systems fast, protected process-data acquisition in a 120 mm DIN-rail module.
Details
|
Supply: 220 V AC ±10 % or 24 V DC, 5 A max load, <15 W loss |
|
Outputs: 0–10 V DC (0–5 V selectable), 12-bit resolution, ±0.1 % accuracy |
|
I/O: 8 AI (0–10 V / 0–20 mA), 8 DI, 4 AO, all channel-to-bus isolated 1.5 kV |
|
Bus: RS-485 + Modbus-RTU, optional Ethernet/IP, 30 kHz max update |
|
Environment: −20 °C…+60 °C, IP54 front, 95 % RH non-condensing |
|
Mechanics: 120 × 50 × 165 mm DIN-rail, 0.5 kg, 35 mm² screw-clamp terminals |
|
Certifications: CE, UL 508, IEC 60947, 1 M-h MTBF |
Inventory: A wide selection of new and discontinued parts from a wide range of brands.
Affordable: Competitive pricing and select dealer discounts.
Reliable: Every product is tested and comes with a minimum 12-month warranty.
Speed: Quick response and efficient delivery.
Professional: A solid business organization with highly trained engineers.
International: A global network of partners and preferred suppliers.
