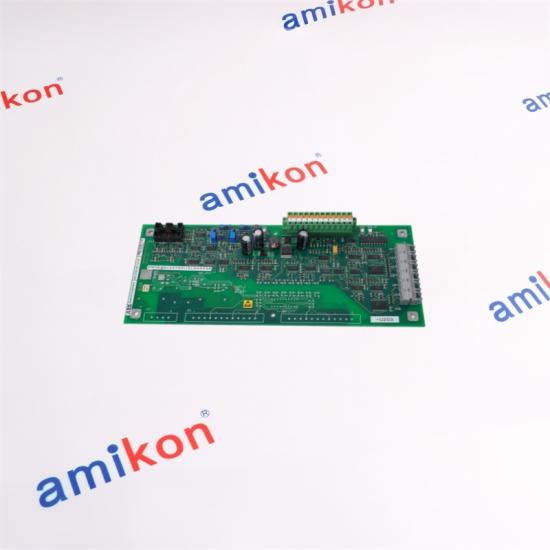

ABB INDUSTRIAL CONTROL ELECTRONICS
3BHE003748R0002
|
ENGINEERING IDENTITY
PULSE CONVERSION / FIBER-OPTIC FIRING LINK
Exact code / installed revision / controlled replacement
|
| Use the complete purchasing identity: ABB order code 3BHE003748R0002 with board designation GDC742 AE. Before replacement, compare the visible variant and revision marks, connector layout, fiber-channel population and mounting arrangement with the installed board. The complete code and installed configuration take precedence over appearance. |
ORDERING IDENTITY
Brand: ABB
Order code: 3BHE003748R0002 Board: GDC742 AE Type: Pulse converter and fiber-optic firing interface board |
| Request Exact-Match Quote | Email: sales@amikon.cn | WhatsApp: 86-18020776792 |
| Sales manager: Miya zheng | ||
| Installed System Role |
In the installed signal path, the controller produces the firing sequence, GDC742 AE converts and distributes that sequence as optical pulses, and the downstream gate card converts the optical signal into electrical gate drive. This separation supports galvanic isolation between the controller and the high-power thyristor section. |
| 01 | Isolate all control and power sources and verify the rectifier is in a safe state. |
| 02 | Record every fiber position before removing the board; channel order and phase sequence are critical. |
| 03 | Use ESD-safe handling and do not bend or contaminate fiber ends. |
| 04 | Match the full ABB order code, board designation, revision marks and connector population. |
| 05 | After installation, verify pulse sequence, optical channels, interlocks and thyristor-gate behavior before loading. |
| Contact Miya zheng | Email: sales@amikon.cn | WhatsApp: 86-18020776792 |
| Sales manager: Miya zheng | ||
| 01 |
What must match when replacing 3BHE003748R0002 GDC742 AE?
Match the full order code, GDC742 AE designation, installed revision, fiber-channel arrangement, connectors and host rectifier configuration.
|
| 02 |
Can 3BHE003748R0002 GDC742 AE be replaced by an LTC gate card?
No. GDC742 AE performs pulse conversion and optical distribution; the downstream LTC card performs the electrical gate-drive function.
|
| 03 |
Why must the fiber order be preserved for 3BHE003748R0002 GDC742 AE?
The firing channels form a defined phase sequence. Reversing channels can place pulses on the wrong thyristor-gate path.
|
| 04 |
What should be inspected before installing 3BHE003748R0002 GDC742 AE?
Inspect board connectors, fiber ends, cable routing, power input, mounting points and the downstream gate stage.
|
| 05 |
What commissioning checks follow replacement of 3BHE003748R0002 GDC742 AE?
Verify supply, pulse sequence, optical output presence, interlocks and controlled rectifier operation before full load.
|
