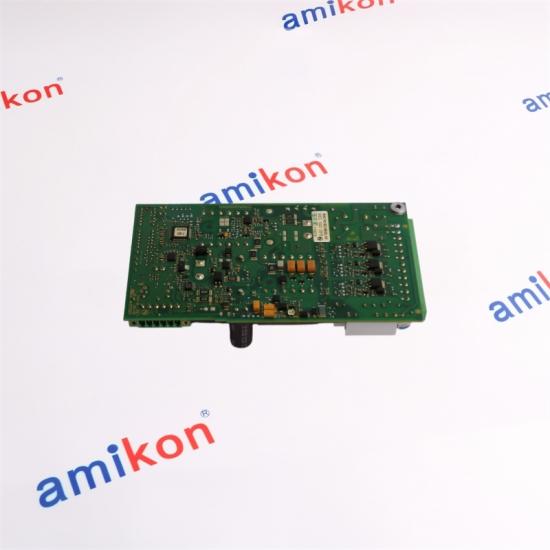

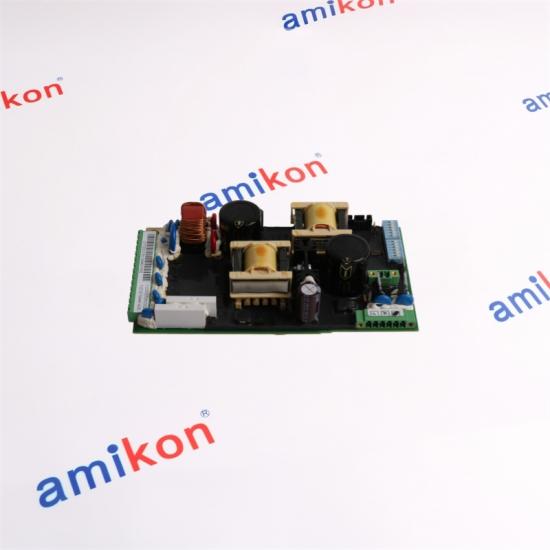

ABB 1VCR017053G0006 Power-Supply Board

ABB 1VCR017053G0006
ABB 1VCR017053G0006
ABB 1VCR017053G0006

ABB 1VCR017053G0006 Power-Supply Board

Calculate shipping
Quotation Request



ABB / V-CONTACT
1VCR017053
G0006

VSC SERIES
ARTICLE IDENTIFICATION
03 / VSC
PART PROFILE
V-CONTACT VSC

TYPE
CONTROL /
POWER
FAMILY
VSC
ARTICLE
1VCR017053
G0006
MATCHING POINT
Verify board revision and VSC configuration before replacement.
Complete article-number matching is important for V-Contact VSC replacement applications.
AMIKON / CONTACT
ASK OUR TEAM
M
SALES MANAGER
Miya zheng
 ↗
@
EMAIL
sales@amikon.cn
 ↗
W
PHONE / WHATSAPP
86-18020776792
 ↗
03 We have a wide range of brands and products for various industries, we provide services to tens of thousands of customers around the world. INDUSTRIAL AUTOMATION
PARTS · SUPPORT · SUPPLY





ABB V-CONTACT VSC • CONTROL / POWER ARCHITECTURE
1VCR017053G0006
ABB V-Contact VSC Control & Power-Supply Board
The 1VCR017053G0006 article is associated with the electronic control and power-supply architecture of ABB V-Contact VSC medium-voltage vacuum contactors. The VSC platform uses a permanent-magnet actuator controlled through an electronic multi-voltage feeder and stored-energy capacitors, providing a compact switching architecture for frequent-operation medium-voltage duties.

ABB
Manufacturer
VSC
Vacuum Contactor Family
MV
Medium-Voltage Switching
PM
Permanent-Magnet Drive



PRODUCT PROFILE

Role within the VSC architecture
ABB V-Contact VSC contactors use an electronic multi-voltage feeder to control a bistable permanent-magnet actuator. The feeder supplies the actuator and manages the energy stored in capacitors used for switching operations. The 1VCR017053G0006 article is associated with this control / power-supply section of the VSC contactor architecture.
ARTICLE ID
1VCR017053G0006
ABB article number
Electronic Feeder
The VSC feeder is an electronic multi-voltage design. Each feeder accepts a voltage within its defined operating band, while the contactor is configured for the ordered auxiliary supply.
Permanent-Magnet Drive
The VSC actuator uses permanent magnets and stored capacitor energy. This bistable MAC drive is controlled electronically rather than by a continuously energized conventional holding coil.
Vacuum Switching
The VSC platform uses vacuum interrupters for medium-voltage switching. The architecture is intended for applications requiring frequent operations and controlled switching.
VSC Platform Characteristics
ABB V-Contact VSC contactors are designed for alternating-current medium-voltage duties where high numbers of operations can be required. The family covers fixed and withdrawable configurations, with VSC 7 and VSC 12 variants for rated voltages of 7.2 kV and 12 kV.
Typical Application Areas
Motors • Transformers • Power-factor-correction capacitor banks • Switching systems • Industrial electrical equipment • Service-sector electrical equipment • Marine electrical systems
TECHNICAL SNAPSHOT
System-level characteristics relevant to the 1VCR017053G0006 application
Product family
V-Contact VSC		 Contactor technology
Vacuum interrupter		 Actuator
Permanent-magnet MAC drive		 Control architecture
Electronic multi-voltage feeder
Rated voltage family
7.2 kV / 12 kV		 Rated current family
Up to 400 A		 Operating modes
SCO / DCO		 Typical use
Frequent-operation MV switching
VSC SERIES / SYSTEM RELATIONSHIP

Where the 1VCR017053G0006 sits within the ABB V-Contact VSC switching architecture
1VCR017053G0006
Control / power-supply role
Associated with the electronic feeder section that powers and controls the VSC actuator architecture. Correct matching depends on the exact contactor configuration and auxiliary supply arrangement.
 →
V-Contact VSC Contactor
Switching assembly
The VSC contactor integrates vacuum interrupters, permanent-magnet actuation, electronic control and auxiliary circuitry into a medium-voltage switching device.
 →
MV Installation
Application environment
Motor control, transformer switching, capacitor-bank switching and other industrial medium-voltage applications.
VSC 7 vs. VSC 12 — platform distinction
Characteristic VSC 7 Family VSC 12 Family
Rated voltage 7.2 kV 12 kV
Configuration options Fixed and withdrawable variants Fixed and withdrawable variants
Actuation concept Permanent-magnet MAC drive Permanent-magnet MAC drive
Electronic feeder Multi-voltage electronic control Multi-voltage electronic control
Configuration matching matters
The board article should be matched against the complete VSC assembly, auxiliary supply arrangement, contactor variant and actual control wiring. VSC feeders are configured according to the ordered operating voltage, so a visually similar board should not be treated as interchangeable without confirming the complete assembly configuration.




AMIKON INDUSTRIAL SUPPLY NETWORK




GLOBAL TEAM
Industrial supply coordination



QUALITY / SERVICE / RESPONSE
Built around
industrial continuity
Supporting system integrators and industrial suppliers with hard-to-find automation components.


READY STOCK
Warehouse dispatch capability
At AMIKON, our mission is to promote a sustainable and efficient global industrial supply chain.
As a global distributor with more than 1 million hard-to-find industrial parts in inventory, AMIKON helps system integrators and suppliers reduce unexpected component shortages and extended lead times. Long-term industrial asset partnerships across multiple industries enable us to support sourcing for new, hard-to-find and discontinued industrial parts, equipment and machinery.
1M+
Industrial Parts		 FAST
Delivery		 CARE
Customer Service		 GLOBAL
Supply Support
CONTACT AMIKON

Send the complete part number and your required quantity for a faster quotation.
AMIKON Limited
Sales Manager: Miya Zheng
REQUEST A QUOTE
EMAIL AMIKON WHATSAPP
Delivery
3–5 Days		 Warranty
12 Months		 Packaging
Brand New		 Payment
T/T		 Shipping
FedEx / DHL / UPS
Return & Replacement Policy
Please contact us within 7 days after receiving the item if a question occurs. Returned items should remain in their original condition and include a specific reason for return. After receiving the returned item, we can arrange a return or replacement. Shipping costs are the buyer's responsibility.
BUYER-FOCUSED FAQ

Q1. What should be checked before ordering ABB 1VCR017053G0006 for an existing VSC contactor?
Confirm the complete ABB article number, the VSC contactor variant, auxiliary control-voltage arrangement, feeder configuration and connector arrangement. The VSC feeder is configured for the ordered operating voltage, so matching only the board appearance is not sufficient.
Q2. Can ABB 1VCR017053G0006 be selected solely by the 7.2 kV or 12 kV VSC rating?
No. The 7.2 kV and 12 kV ratings describe the VSC contactor family rather than automatically defining every control-board variant. The auxiliary supply, feeder configuration and exact contactor arrangement must also correspond to the replacement requirement.
Q3. Why does ABB 1VCR017053G0006 matter when replacing a VSC feeder assembly?
The electronic feeder is part of the actuator-control chain. It provides the electrical interface for the permanent-magnet drive and stored-energy capacitor system. An incorrectly matched feeder can therefore prevent the contactor from operating as intended even when the external board appearance is similar.
Q4. Is ABB 1VCR017053G0006 suitable for fixed and withdrawable VSC systems?
The VSC family includes both fixed and withdrawable contactor configurations, but the board must be matched to the actual VSC assembly. Withdrawable versions are associated with systems such as UniGear ZS1, UniSec WBC, PowerCube units and certain CBE enclosures; therefore the complete equipment configuration should be checked before substitution.
Q5. What should a buyer send when requesting ABB 1VCR017053G0006 for an urgent replacement?
Send the complete 1VCR017053G0006 article number, required quantity, existing VSC contactor type, auxiliary supply voltage, destination and required delivery date. A clear label or board photograph can also help the sales team compare the physical identification and connector arrangement before quotation.
