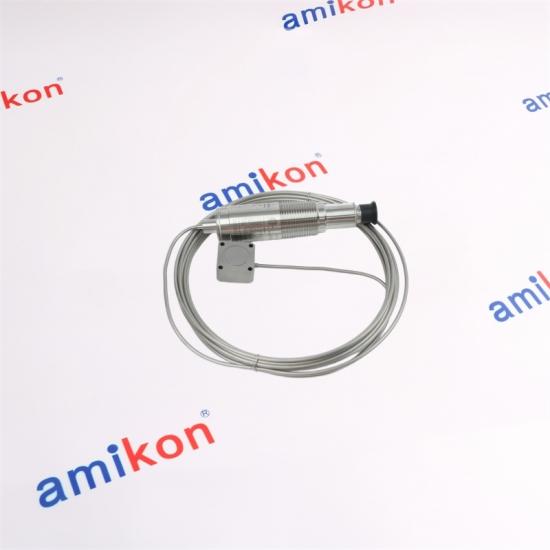

Bently Nevada identifies 330130 as the standard extension-cable family for the 3300 XL 8 mm proximity system. The cable connects the probe to the Proximitor Sensor and forms part of the calibrated electrical length; it is not a generic coaxial lead.
330130 = standard extension cable; 040 = 4.0 m length. Option 10 and CN marking must be verified on the installed documentation.
Maintains the signal path between the 3300 XL probe and matching Proximitor Sensor for shaft vibration and position measurement.
Turbines, compressors, pumps and other rotating machinery protected by 3300 XL 8 mm systems.
For hazardous-area use, MANUFACTURER guidance requires every component in the proximity system to carry the required approval. During lifecycle replacement, confirm the complete installed probe, extension cable and Proximitor Sensor codes rather than substituting by length alone.
MANUFACTURER SPECIFICATION: Bently Nevada 3300 XL 8 mm Proximity Transducer System ordering guidance and Baker Hughes Orbit order-code guide.
MANUFACTURER Bently Nevada guidance identifies 330130 as the standard 3300 XL extension-cable family.
It identifies a 4.0 m extension-cable length.
No. The extension cable is part of a calibrated proximity transducer chain and must match the probe and Proximitor Sensor.
Check connectors, cable routing, bend radius, mechanical protection and the required total electrical length.
Send the full probe, cable and Proximitor codes, clear label photos, quantity and destination.
AMIKON supports maintenance and engineering teams with industrial automation and machinery-monitoring inventory, technical identification support and international delivery.
