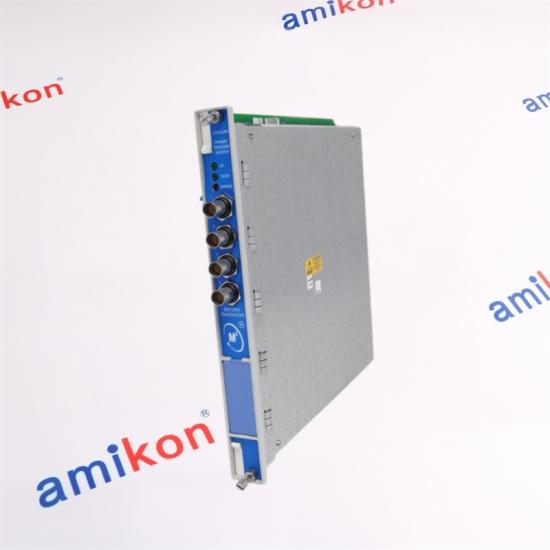

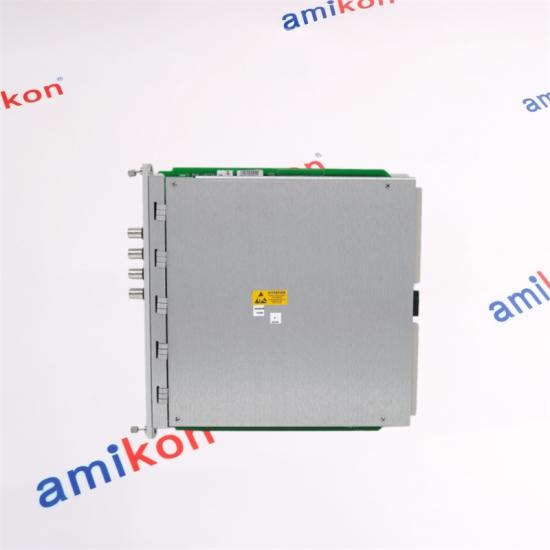

The MANUFACTURER Bently Nevada 3500/64M is a four-channel dynamic pressure monitor intended primarily for gas-turbine combustor pressure pulsation instability (“humming”). It accepts dynamic-pressure transducer inputs, conditions the signals and compares measured variables with programmable alarm setpoints.
Produces band-passed dynamic-pressure variables with programmable corner frequencies and an additional adjustable notch filter.
Gas-turbine combustion monitoring, instability detection, alarm generation and correlation with operating conditions.
Supports dynamic-pressure sensors through Bently Nevada charge-amplifier arrangements including 350500 or 86517 interfaces.
*MANUFACTURER datasheet hazardous-area entries list T4 at −20 °C to +65 °C when installed according to the applicable drawing; exact I/O and approval configuration must be verified.
Verify the monitor revision, matching I/O module, transducer/charge-amplifier interface, wiring polarity, filter configuration and alarm logic. For hazardous locations, use the I/O/approval option and installation drawing specified for the site. The 3500 documentation set identifies manual 142836 for the 3500/64M; retain configuration records for future lifecycle replacement.
It is primarily intended to monitor gas-turbine combustor dynamic-pressure pulsation instability.
The MANUFACTURER monitor is a four-channel design.
It creates band-passed dynamic-pressure variables using programmable corner frequencies and provides an additional adjustable notch filter.
No. Confirm the monitor, I/O option, internal-barrier requirement, approvals and wiring arrangement as a complete configuration.
Provide the complete monitor and I/O codes, rack revision, clear label photos, quantity and destination.
AMIKON supports machinery-protection, automation and maintenance projects with responsive technical identification, quotation support and international delivery.
The 3500/22M 138607-01 Transient Data Interface (TDI) is the interface between the 3500 monitoring system and compatible software (System 1 Condition Monitoring and Diagnostic software and 3500 System Configuration software). The TDI combines the function of a 3500/20 Rack Interface Module (RIM) with the data collection capability of a communication processor such as TDXnet.
3500/22M is a Transient Data Interface Module manufactured and designed by Bently Nevada as part of the 3500 Series used for monitoring seismic activity. The 3500/22M Transient Data Interface (TDI) is the interface between the 3500 monitoring system and compatible software (System 1 Condition Monitoring and Diagnostic software and 3500 System Configuration software). The TDI combines the function of a 3500/20 Rack Interface Module (RIM) with the data collection capability of a communication processor such as TDXnet.
The 3500/33 16-Channel Relay Module is a full-height module that provides 16 relay outputs. You can place any number of 16-channel relay modules in any of the slots to the right of the Transient Data Interface (TDI) Module. Each output of the 3500/33 16-Channel Relay Module can be independently programmed to perform voting logic.
The 3500/60 & 61 modules provide six channels of temperature monitoring and accept both Resistance Temperature Detector (RTD) and Thermocouple (TC) temperature inputs. The modules condition these inputs and compare them against user-programmable alarm setpoints. The 3500/60 and 3500/61 provide identical functionality except that the 3500/61 provides recorder outputs for each of its six channels while the 3500/60 does not.
The 3500/60 & 61 modules provide six channels of temperature monitoring and accept both Resistance Temperature Detector (RTD) and Thermocouple (TC) temperature inputs. The 3500/60 133811-01 modules condition these inputs and compare them against user-programmable alarm setpoints. The 3500/60 and 3500/61 provide identical functionality except that the 3500/61 provides recorder outputs for each of its six channels while the 3500/60 does not.
The 3500/72M Recip Rod Position Monitor meets API 618 requirements for reciprocating compressors. It measures: l Rod position l Rod drop l Hyper-compressor The four-channel 3500/72M Recip Rod Position Monitor accepts input from proximity transducers, conditions the signal to provide dynamic and static position measurements, and compares the conditioned signals with userprogrammable alarms. Each channel, depending on how you configure it, typically conditions its input signal to generate various parameters called measured values.
The 3500/62 Process Variable Monitor is a 6-channel monitor for processing machine critical parameters that merit continuous monitoring, such as pressures, flows, temperatures, and levels. The monitor accepts +4 to +20 mA current inputs or any proportional voltage inputs between -10 Vdc and +10 Vdc. It conditions these signals and compares the conditioned signals to user-programmable alarm setpoints.
The 3500/62 Process Variable Monitor is a 6-channel monitor for processing machine critical parameters that merit continuous monitoring, such as pressures, flows, temperatures, and levels. The monitor accepts +4 to +20 mA current inputs or any proportional voltage inputs between -10 Vdc and +10 Vdc. It conditions these signals and compares the conditioned signals to user-programmable alarm setpoints.
