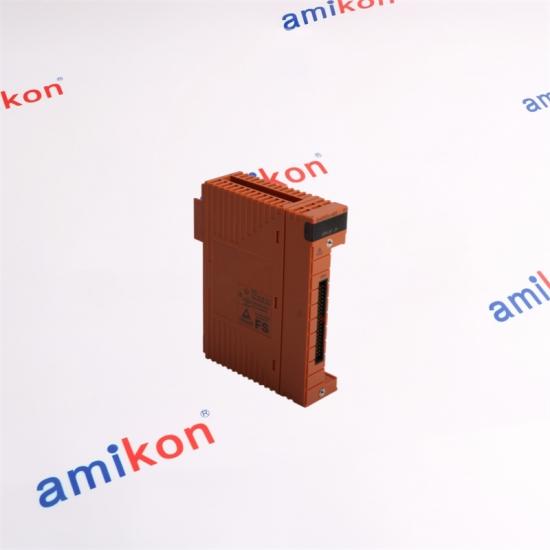

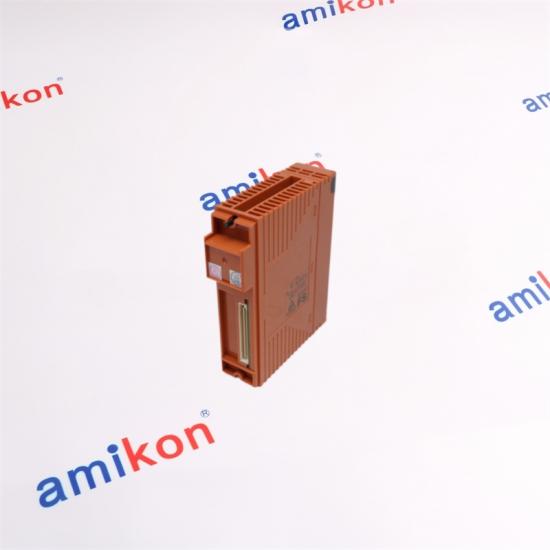

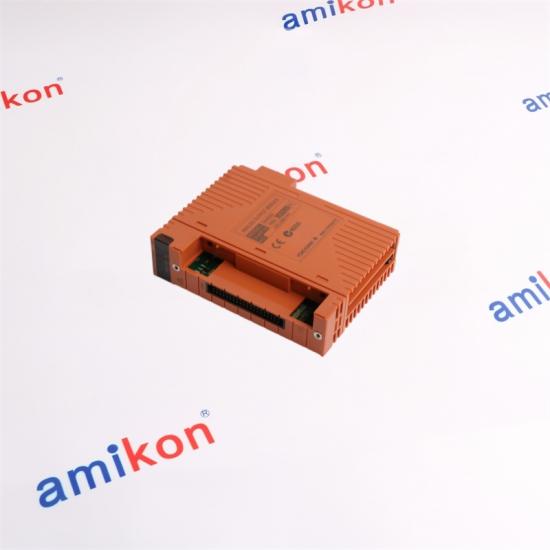

The SAI533 is an analog output module for producing 4 to 20 mA signals to field devices. It provides eight output channels with module isolation and is designed for process-control signal transmission where stable analog current output is required.

The rated output range is 4 to 20 mA, while the specified output range extends from 1.25 to 23 mA. At the rated range, the allowable load resistance is 230 to 600 Ω.

The module specifies a 40 ms data update frequency. This characteristic supports continuously refreshed analog output values in process-control loops while keeping the signal interface within the established 4–20 mA architecture.

The module also supports Partial Stroke Test diagnosis in the applicable configuration, providing a diagnostic path for supported safety-valve testing applications.

The SAI533-H03 belongs to the SAI533 current-output family. Its primary signal direction is from the control system toward field devices through 4–20 mA analog output channels.

• 8 output channels
• 4–20 mA rated output
• Module isolation
• HART communication function
• Dual-redundancy capability
• Partial Stroke Test support

The SAI143-H serves the complementary analog-input role in the HART-enabled ProSafe-RS I/O family, while SAI533-H serves the analog-output role.

For quotation requests, please provide the part number, quantity, destination, required date and machine/system details. This helps AMIKON coordinate the most suitable supply arrangement.

Not automatically. The H suffix specifies the HART communication function, while the remaining suffix characters define interface, environmental and other configuration characteristics. Before substitution, the complete model code and terminal/interface arrangement should be matched against the existing installation.

Channel availability depends on ambient temperature. For the SAI533-H□3 configuration, all eight channels are connectable at ambient temperatures up to 60 °C. Above 60 °C, the allowable channel count is reduced; at 65 °C, channels 1–6 are connectable, and at 70 °C, channels 1–4 are connectable.

The field loop should be checked for the required 4–20 mA operating range, loop load and interface arrangement. The specified allowable load resistance for the rated range is 230–600 Ω. The physical terminal or cable interface should also correspond to the selected SAI533 configuration.

The HART-enabled SAI533-H family provides HART communication capability for the analog output interface, with one HART device connectable for each channel. The module uses one HART modem and communicates concurrently with one HART device at a time.

The SAI533 family supports dual-redundant configuration, but a replacement should not be selected by model number alone. The existing redundancy arrangement, associated interface hardware, terminal configuration and system engineering should be matched before installation. This is particularly important for safety-related output loops.
