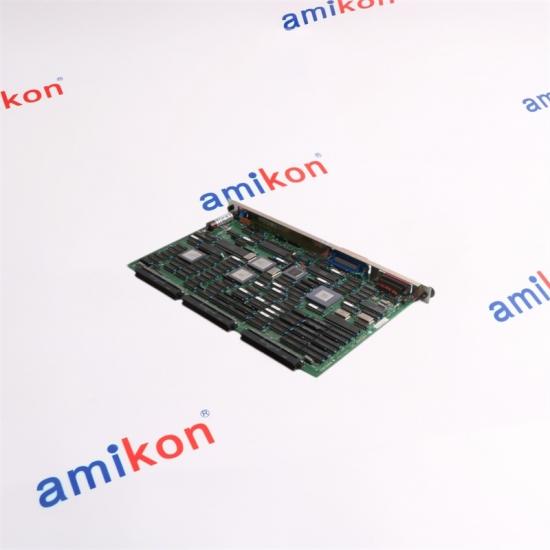

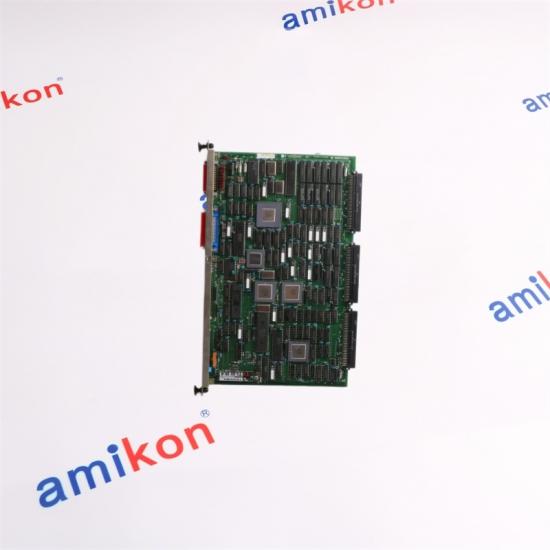

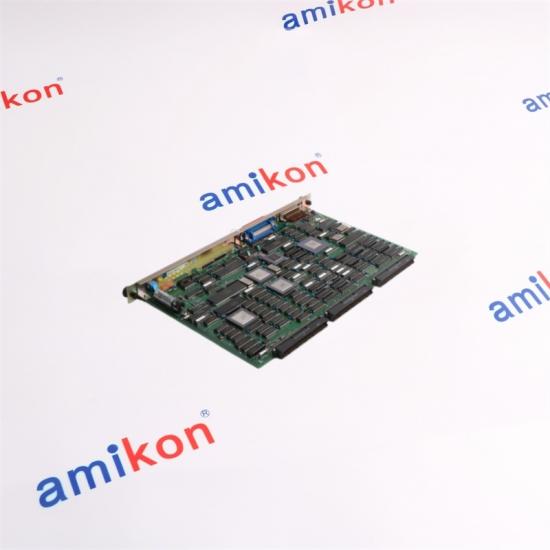

Yokogawa IP91*A AS S9881BM-0 Communication Module

YOKOGAWA JAPAN IP91*A AS S9881BM-0

Data Exchange: Links Yokogawa field instruments or industrial drives with host control systems.

System Integration: Works with control software platforms like CENTUM (such as CS3000).

Hardware Design: Built as a printed circuit board (PCB) card utilizing a card edge connector for rack or node installation.

CENTUM CS 3000

CENTUM CS 3000 is an integrated production control system for medium and large process control applications. This system is a synthesis of the latest technology with Yokogawa’s experience and specialist know-how. This new system has the functionality, flexibility and reliability of our CENTUM CS, and is also based on the V net control bus.

System Scale

The CENTUM CS 3000 system specifications are as shown below:

l No. of tags that can be monitored: 100,000 tags (expansible up to 1,000,000 tags)

l No. of stations that can be connected: 256 stations (max. 16 domains, 64 stations per domain) – however, HIS is limited to a maximum of 16 stations/domain.

When you reach the maximum of 64 stations in a domain, you can start a new domain and link the two domains using a Bus Converter.

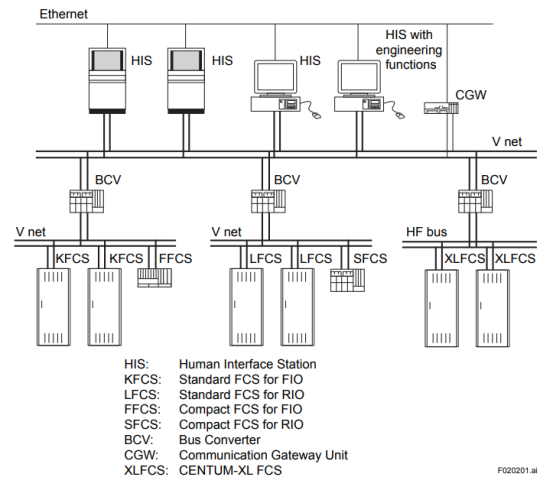

Figure Example of Large System Configuration
