Yokogawa F3RP45-2P/L1 Real-Time OS (RTOS) CPU Module

F3RP45-2P/L1

Description

The Yokogawa F3RP45-2P/L1 is a high-performance Real-Time OS (RTOS) CPU module belonging to the FA-M3 (Range-free Multi-controller) Programmable Logic Controller platform. Running an embedded, robust RTOS architecture (predominantly VxWorks), this dedicated hardware module is engineered for sub-millisecond, low-latency execution of intricate, multi-tasking industrial algorithms.

FAQ for F3RP45-2P/L1

Q1. How does the Yokogawa F3RP45-2P/L1 optimize deterministic control performance in mission-critical industrial automation architectures?
The Yokogawa F3RP45-2P/L1 is engineered to deliver deterministic processing for demanding industrial control applications. Its high-performance CPU architecture supports rapid logic execution, reliable real-time task scheduling, and seamless integration within Yokogawa FA-M3 control systems, ensuring consistent operational stability even under intensive workloads.

Q2. Why is the Yokogawa F3RP45-2P/L1 considered a scalable CPU module for sophisticated PLC-based control systems?
The Yokogawa F3RP45-2P/L1 provides exceptional scalability by supporting flexible system expansion through multiple I/O modules and communication interfaces. This modular architecture enables engineers to accommodate evolving process requirements while maintaining system integrity and minimizing redesign efforts.

Q3. What communication capabilities distinguish the Yokogawa F3RP45-2P/L1 in distributed automation environments?
The Yokogawa F3RP45-2P/L1 supports high-speed industrial communication, allowing efficient data exchange between controllers, HMIs, supervisory systems, and remote I/O devices. Its robust communication architecture enhances interoperability, facilitates real-time monitoring, and improves synchronization across complex automation networks.

Q4. How does the Yokogawa F3RP45-2P/L1 enhance long-term operational reliability in harsh industrial installations?
Designed for continuous industrial operation, the Yokogawa F3RP45-2P/L1 incorporates a rugged hardware platform capable of maintaining stable performance in demanding environments. Its industrial-grade construction, reliable processing capability, and dependable system diagnostics help maximize equipment availability while reducing maintenance-related downtime.

Q5. Which engineering applications benefit most from deploying the Yokogawa F3RP45-2P/L1 CPU module?
The Yokogawa F3RP45-2P/L1 is ideally suited for high-precision automation applications, including manufacturing lines, process control systems, machine automation, material handling equipment, and infrastructure projects. Its powerful processing capabilities and expandable system architecture make it an excellent choice for applications requiring reliable, high-speed control and long-term system flexibility.

FA-M3 Information

General

The Range-free Multi-controller FA-M3 is a next-generation programmable controller, which achieves high performance through its ultra high-speed processing and stable control features. It incorporates a space-saving compact design, supports versatile ranges with cover for up to 8192 input/output points, and is equipped with a variety of advanced modules, which can be used to configure a wide range of applications. With the FA-M3, decreased total cost of ownership (TCO) can be realized through openness, improved functions and reduction in the size of machines and facilities.

Features

The increased speed of the FA-M3 has been achieved as a result of adopting the concept High Speed IPRS which is based on four factors; Instruction, Process, Response and Scan. This contributed to increased accuracy of instruments and productivity. The FA-M3 has also inherited structured programming and uses an “object ladder*” to create an efficient total design, all the way from planning to maintenance.

*: “Object ladder” is a program development concept aimed at dramatically improving customization efficiency by integrating programs and devices into independent objects (e.g., blocks) on function basis.

l Ultra-high Speed Processing

The high-speed instruction processing capability of the FA-M3 makes it ideal for

applications that require high speed and quick response.

- The F3SP22 CPU achieves a scan time of 1 ms for a 6K steps program*.

- The F3SP71 and F3SP76 CPUs achieve a scan time of 1 ms for a 100K

steps program*.

*: The scan times mentioned above can only be a achieved under specific conditions and vary

depending on the contents of the program and system configuration.

l Sensor Control Function

This function allows one CPU to perform a parallel operation at a minimum scan time of 100 µs (200 µs for F3SP2-) while carrying out a main scan during program operation. It enables one block of the program to be executed at high-speed and fixed intervals independently of a main scan, which features high performance and advanced functionalities.

l Built-in Network Function (when using F3SP7-)

These sequence CPU modules have a built-in network function, which complements high-speed control with fast access and storage of large files. With pre-installed support for a wide range of common communication protocols, it enables transfer of large files.

l Built-in Modbus/TCP Slave (Server) Function (when using F3SP7-)

These sequence CPU modules have a built-in Modbus/TCP slave (server) function, which enables communication with a Modbus master (client) device via the module’s communication port without need of programming on the module end.

l Multiple CPUs

The FA-M3 can accommodate up to 4 CPUs in one base module depending on the system size, program size and CPU aptitude. The supported CPU modules include sequence CPU modules.

l Program Reusability

Object ladder allows integration of programs with devices into components on function basis. This improves the reusability of user software and efficiency of machine custom design.

Local Device

Devices used as variables in different user blocks or component macros are completely independent, and can be allocated to different devices even if they share the same name so that global analyses and modification of the device structure for reuse of ladders are not necessary.

l Efficient System Maintenance

Oscilloscope-like Sampling Trace Function and Live Logic Analyzer

The CPU module is capable of acquiring high-speed data, which cannot be acquired using a PC. Various analysis functions, such as inter-point analysis and range adjustment are supported, enabling efficient troubleshooting when equipment fails.

l Open Network

The FA-M3 supports open network protocols such as Ethernet, Ethernet/IP, FL-net, DeviceNet, Modbus, GP-IB, RS-232C/422 and Automated Distribution Protocol, and provides a range of modules for use on a variety of networks ranging from field networks to system configuration networks.

I/O Configuration

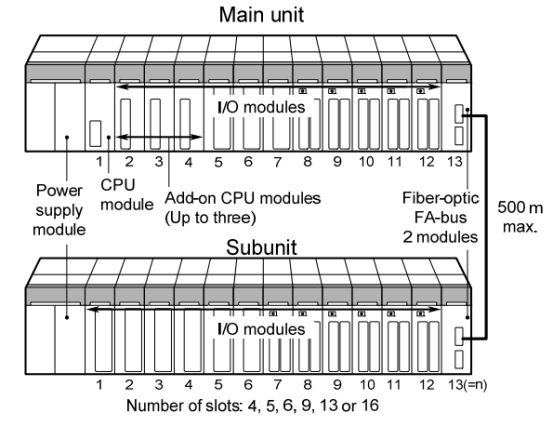

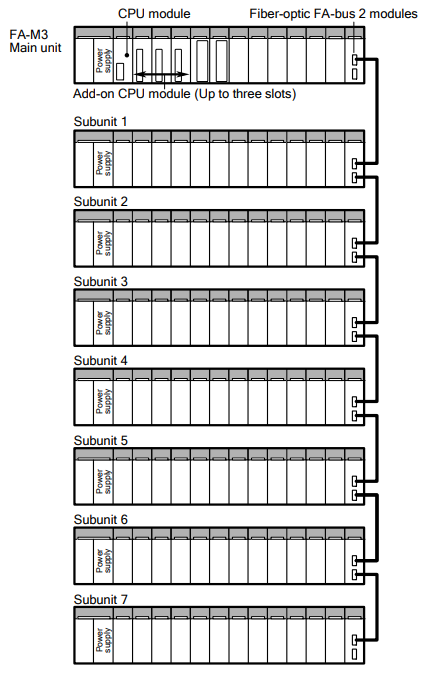

l Up to Seven Additional Subunits for I/O Extension

Up to 8192 inputs and outputs can be processed (for F3SP76). l

l Main Unit and Subunit

l Subunit Extension

Recommended
