Yokogawa EH1*A Signal Conditioner Card

Yokogawa EH1*A: Our services are more abundant; This module serves as a critical communication bridge

within Yokogawa's Field Control Systems, including applications involving Compact Field Control Units.

Yokogawa EH1*A: We provide more expertise; By connecting through the ER bus interface, it supports high

-speed, stable data communication in distributed control environments, making it suitable for applications requiring

reliable and scalable network architectures.

Yokogawa EH1*A: Our parts are more diverse; The yokogawa spare parts is integral to yokogawa’s commitment

to high-precision control solutions, providing a stable platform for automation networks with enhanced communication

capabilities.

YOKOGAWA JAPAN

(Series: CS3000 System CPU Controller Module, Analog Module, Yokogawa Centum CS - Centum VP.)

On line Time 8:30am-18:00pm [ Email : sales@amikon.cn ]

[ Phone : 86-18020776792 - Mobile : 86-18020776792 ]

➊ YOKOGAWA EH1*A Signal Conditioner Card

Signal Conditioner Cards, which interface to the process, are installed in Signal Conditioner Nests. The signal conditioner cards can convert the I/O signals, isolate the I/O signals, and provide an isolated power supply from a built-in distributor.

For example, the measuring ranges of temperature and mV input signal conditioner cards can be changed by a portable BRAIN terminal. Some cards have communication functions and supply power to BRAIN Series transmitters (BRAIN UNI∆, BRAIN ADMAG and BRAIN YEWFLO).

➋ SPECIFICATIONS

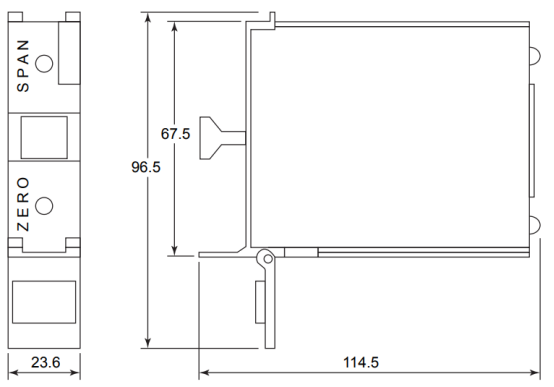

➌ EXTERNAL DIMENSIONS

Nominal Tolerances :

Nominal tolerance is ± 0.8 mm for the dimensions of 0.5 mm or more and 120 mm or less, and the combined nominal tolerance is ± 1.5 mm.

The nominal tolerance is in accordance with JEM 1459 for the dimensions over 120 mm.

➍ OTHER MODELS
