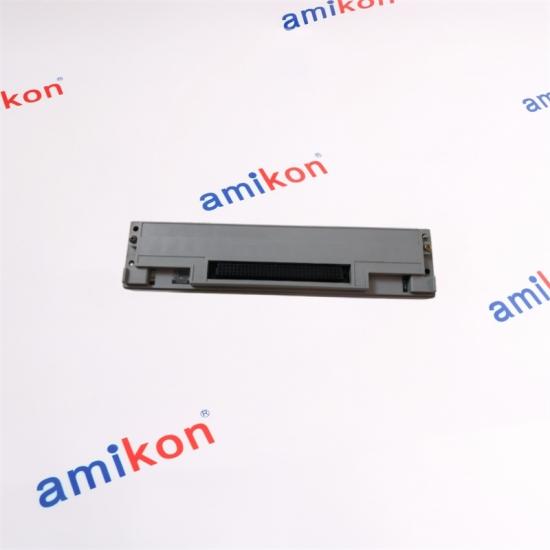

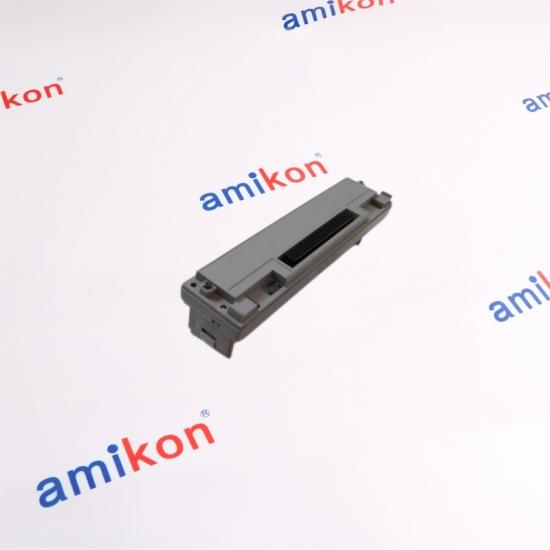

AMT16R is a Yokogawa terminal block used with the AMM32T configuration. It provides the field-side termination interface associated with the 16-channel RTD input multiplexer arrangement, giving maintenance teams a practical connection point between field wiring and the associated control-system hardware.
16-POINT CONFIGURATIONAMM32T ASSOCIATIONAPPROX. 0.8 kg
PART NUMBER
AMT16R
Terminal block
For AMM32T
Yokogawa CENTUM family environment
FIELD CONNECTION / RIO ARCHITECTURE
TECHNICAL PROFILE
AMT16R / TERMINATION INTERFACE
01 / FUNCTION
Terminal Block
The AMT16R is the terminal block associated with the AMM32T RTD input multiplexer configuration. It is positioned at the field connection side of the arrangement and provides the physical termination interface required by the associated signal path.
02 / CONFIGURATION
AMM32T Relationship
The AMT16R is specifically associated with AMM32T. This relationship is important when replacing a terminal interface because the terminal-block arrangement should match the connected I/O or multiplexer configuration rather than being selected only by physical appearance.
03 / PHYSICAL DATA
Approx. 0.8 kg
The published dimensional drawing places the AMT16R family at approximately 215 mm overall width, approximately 124.6 mm overall height and approximately 49.8 mm in the depth direction. Dimensional tolerances apply to the engineering dimensions.
MODEL
AMT16R
TYPE
Terminal Block
ASSOCIATED UNIT
AMM32T
WEIGHT
Approx. 0.8 kg
WIDTH
Approx. 215 mm
HEIGHT
Approx. 124.6 mm
SYSTEM RELATIONSHIP
AMT16R IN THE SIGNAL CHAIN
FIELD SIDE
RTD Signals
Field RTD wiring is brought toward the associated multiplexer and terminal arrangement.
→
TERMINATION
AMT16R
The terminal block forms the physical connection point associated with the AMM32T arrangement.
→
PROCESSING
AMM32T
The associated multiplexer arrangement handles the RTD input configuration within the control system.
Replacement checkpoint: For an AMT16R replacement, verify the connected AMM32T arrangement and the actual terminal configuration before ordering. Physical similarity alone is not sufficient for a connection-side replacement.
RELATED TERMINAL ARRANGEMENTS
AMT16R VS. RELATED YOKOGAWA TERMINAL BLOCKS
AMT16R
For AMM32T
Approx. 0.8 kg
AMT16M
For AMM12T / AMM22M / AMM42T / AMM52T
Different associated terminal arrangement
AMT16T
For AMM22T
Different associated terminal arrangement
ADT16 / ADT16A / ADT16B
Different I/O applications
Selection depends on the connected module family
AMT16R should be matched to the intended Yokogawa I/O architecture and terminal-block combination rather than substituted solely by dimensions.
AMIKON INDUSTRIAL AUTOMATION
Need AMT16R for an active system?
Send the part number, quantity, destination and required date. Our sales team can help confirm the ordering details and arrange worldwide shipment.
Can AMT16R be selected as a direct terminal replacement for any 16-point Yokogawa module?
No. AMT16R is associated with the AMM32T configuration. The connected module and terminal arrangement should be checked before replacement rather than selecting a terminal block only because the point count appears similar.
What should be checked when ordering AMT16R for an existing AMM32T installation?
Confirm the AMM32T arrangement, terminal-block model, quantity required, installation location and the existing connection configuration. These checks reduce the risk of receiving a physically similar but functionally different terminal block.
Is AMT16R still relevant when an existing RIO system is being upgraded?
Yes, AMT16R appears in Yokogawa's RIO System Upgrade terminal-block combinations and is associated with AAR145-SM□ in that upgraded arrangement. The exact upgraded configuration should be checked before reuse.
Why can AMT16R compatibility matter during an urgent maintenance replacement?
A terminal block is part of the physical connection arrangement, so an incorrect substitute can create installation or wiring problems even when another part has a similar appearance. Matching the terminal block to the connected Yokogawa arrangement is therefore important during urgent replacement.
What physical details are useful when verifying AMT16R before shipment?
The published dimensional arrangement gives an overall width of approximately 215 mm and an overall height of approximately 124.6 mm, with an approximate depth dimension of 49.8 mm. The AMT16R weight is approximately 0.8 kg. These dimensions can help with physical verification, but the associated system configuration remains the primary compatibility check.
