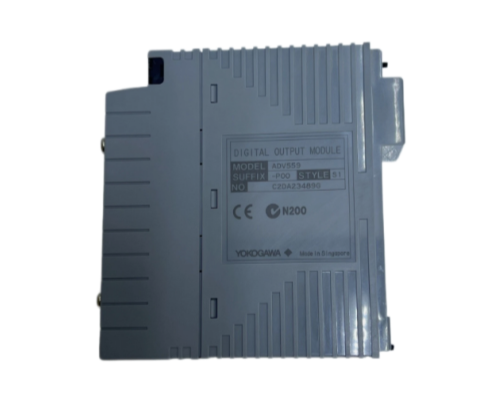

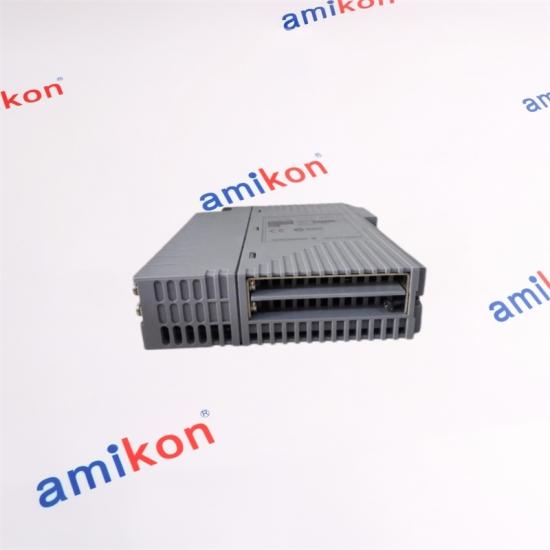

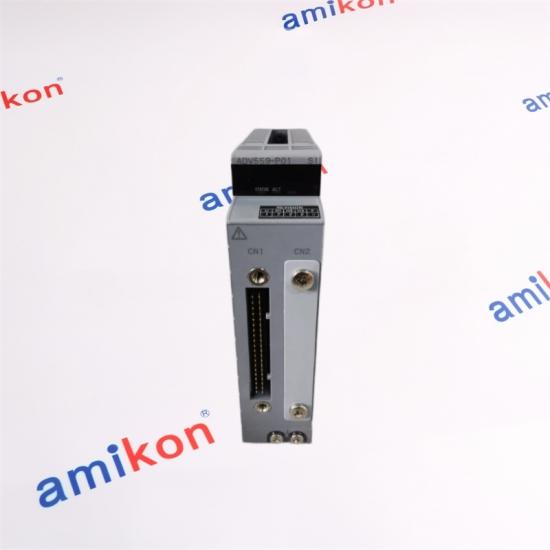

YOKOGAWA ADV559-P01 32-Channel Digital Output Module for Compatible ST4

YOKOGAWA ADV559-P01
YOKOGAWA ADV559-P01
YOKOGAWA ADV559-P01

YOKOGAWA ADV559-P01 32-Channel Digital Output Module for Compatible ST4

Calculate shipping
Quotation Request



YOKOGAWA / ST4
ADV559-P01
32-Channel Isolated Digital Output Module

Designed for digital output applications with pulse-width and time-proportional functions.
32
output channels
ISOLATED
channel architecture
PULSE
width function
OUTPUT FUNCTION
Pulse Width + Time-Proportional Output
Useful where digital output timing is part of the control application.
AMIKON LIMITED
We have a wide range of brands and products for various industries, we provide services to tens of thousands of customers around the world.
✉ MIYA ZHENG sales@amikon.cn ☎ 86-18020776792



YOKOGAWA DIGITAL OUTPUT PLATFORM
ADV559-P01
32-Channel Digital Output Module for Compatible ST4
OUTPUT ARCHITECTURE
ADV559-P01 is a 32-channel digital output module designed for compatible ST4 configurations. Its output channels are individually isolated, and the module uses transistor-contact outputs for field-side switching. The -P configuration provides pulse-width and time-proportioning output functions, while suffix 1 specifies the ISA Standard G3 option.




ST4 COMPATIBLE
32
OUTPUT CHANNELS


CORE TECHNICAL PROFILE
CHANNEL ARCHITECTURE
32
digital output channels
OUTPUT TYPE
TRANSISTOR
contact output
OUTPUT RATING
30 V DC / 100 mA
inductive or resistive load
SIGNAL ISOLATION
ISOLATED
individual output channels

OUTPUT CHARACTERISTICS
Number of outputs 32
Signal isolation Isolated channels
Output signal Transistor contact
Output contact rating 30 V DC, 100 mA maximum for inductive or resistive load
Output response time 16 ms or less
Pulse width 8 ms to 7200 s
Pulse width resolution 8 ms, with up to 1 ms added for ON/OFF delay time
FUNCTIONAL OUTPUT MODES
ADV559-P01 supports ON/OFF status output, one-shot pulse-width output, and time-proportioning ON/OFF output. The -P suffix is specifically associated with pulse-width and time-proportioning output capability.
Power consumption 570 mA at 5 V DC maximum
Weight Approx. 0.30 kg
External connection Dedicated KS2 cable
Compatible card ST4 compatible
LOAD-SWITCHING NOTE
When a DC relay is driven by the output contact, a spark-killer diode is required.
ADV559-P01 CONFIGURATION LOGIC
ADV559
32-channel digital output module for compatible ST4
-P
Pulse-width / time-proportioning output function
0
Fixed position in the suffix structure
1
ISA Standard G3 option
For a replacement or new installation, confirm the complete ADV559-P01 designation rather than matching only the ADV559 base model.
COMPACT ST4 MODULE FORM
130 mm
overall module height shown in the dimensional drawing
32.8 mm
module thickness dimension
INSTALLATION-RELEVANT DETAILS
Module family Digital I/O Modules, CENTUM-ST compatible
ST compatibility ST4
Connection method Dedicated KS2 cable
Approximate weight 0.30 kg
Module signal structure 32 isolated output channels

ST-COMPATIBLE FAMILY POSITIONING
The ADV559-P01 belongs to the 32-point isolated digital output branch of the CENTUM-ST-compatible module family.
ADV859
ST2 compatible digital I/O module
16-channel input + 16-channel output, with isolated channels. It belongs to a mixed I/O architecture rather than the 32-channel output-only arrangement of ADV559.
ADV159
ST3 compatible digital input module
32-channel input architecture with isolated channels. Its signal direction is input, while ADV559 is dedicated to 32-channel output.
ADV559-P01
ST4 compatible digital output module
32-channel output, isolated channels, transistor-contact output, pulse-width and time-proportioning functions, plus the ISA Standard G3 option encoded by suffix 1.
ADV869
ST5 compatible digital I/O module
32-channel input + 32-channel output architecture with common minus side every 16 channels, differing from the individually isolated channels of ADV559.
WHY THE FULL MODEL MATTERS
ADV559, ADV559-P00 and ADV559-P01 should not be treated as interchangeable identifiers. The suffix structure distinguishes the pulse/time-proportioning configuration and the G3 option, so the complete model designation should be matched when sourcing a replacement.

REQUEST ADV559-P01 SUPPORT
Send the complete model and your application details for a focused quotation.
SALES CONTACT
Sales Manager Miya Zheng
Email sales@amikon.cn
Phone / WhatsApp +86 180 2077 6792
Delivery 3–5 days
Warranty 12 months
Packaging Brand New
INQUIRY DETAILS
Part Number: ADV559-P01
Quantity: Required quantity
Destination: Delivery country / city
Required Date: Target arrival date
Machine / System: Existing control platform
RETURN & REPLACEMENT TERMS
01 Please contact us within 7 days if you have any question after you receiving the items.
02 The returned items has to be in its original condition, specific reason for the return, we will issue a return or replacement for your order after we received the returns.
03 The buyer is responsible for all the shipping cost incurred.
ADV559-P01 PURCHASING FAQ
Key points to verify when matching the module to an existing ST-compatible installation.
01 · Does ADV559-P01 provide the output function needed for a system using timed or proportional switching?
Yes. The -P configuration provides pulse-width output and time-proportioning ON/OFF output in addition to ON/OFF status output. Pulse width is specified from 8 ms to 7200 s, with an 8 ms resolution and up to 1 ms added for ON/OFF delay time.
02 · Is ADV559-P01 suitable when the replacement must preserve 32 individually isolated output channels?
ADV559-P01 is specified as a 32-channel digital output module with isolated channels. This distinguishes it from ST-compatible modules whose architecture combines input and output channels or uses common signal groups.
03 · Can ADV559-P01 drive a field load directly if the existing circuit uses a DC relay?
The specified transistor-contact output rating is 30 V DC and 100 mA for inductive or resistive load. When a DC relay is driven through the output contact, Yokogawa specifies the use of a spark-killer diode, so the existing load circuit should be checked against these requirements.
04 · What should be checked if an ADV559-P01 replacement has a different suffix from the installed ADV559?
The complete suffix matters. The -P portion identifies the pulse-width/time-proportioning configuration, while the final 1 identifies the ISA Standard G3 option. A replacement should therefore be matched by its complete model designation, not only by the ADV559 base number.
05 · Does ADV559-P01 use the same connection approach as other ST-compatible module families?
ADV559-P01 is specified with a dedicated KS2 cable and is identified as ST4 compatible. Other branches in the family use different connection arrangements, such as KS9 for the ST5/ST6/ST7 group. For replacement work, both the module designation and the existing cable/interface arrangement should be checked.
