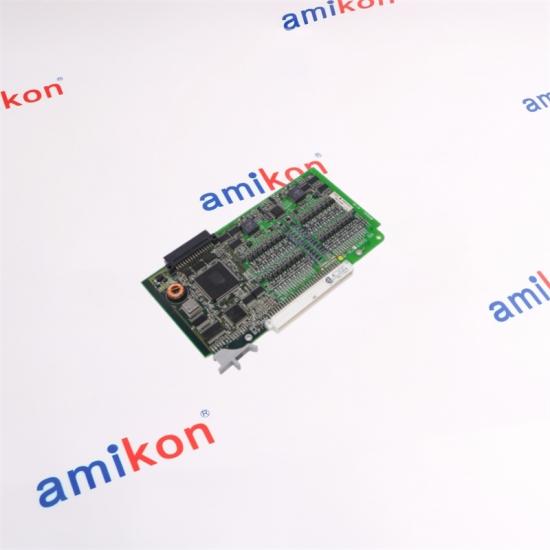

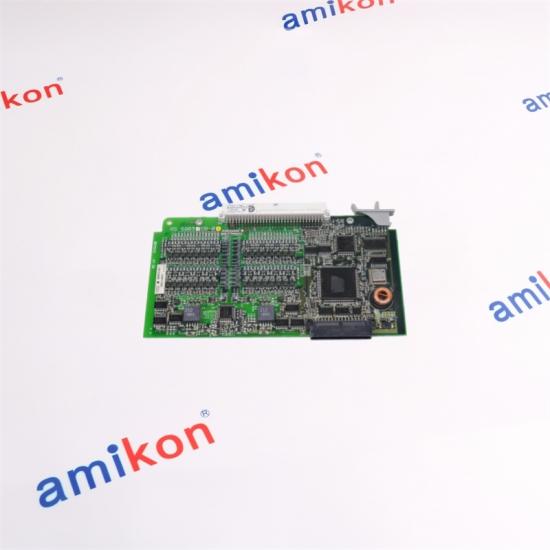

32-Point Contact Input Architecture for Yokogawa RIO
The ADM12 family is positioned in Yokogawa's digital I/O architecture for RIO. The documented ADM12T and ADM12C variants provide 32 contact-input points, with the distinction being terminal-type or connector-type connection.
For replacement purchasing, the complete ADM12-S4 designation should be retained. The exact connection arrangement is important because the ADM12 family contains different hardware connection forms.
KEY PRODUCT CHARACTER
I/O TYPE
CONTACT INPUT
POINTS
32
RIO TYPE
DIGITAL I/O
MATCHING
SYSTEM-BASED
RELATED
ADM12T / ADM12C
UPGRADE
ADV169
PURCHASING NOTE
Match the complete designation, I/O function, point count and connection arrangement before replacement.
32
Contact-input points
ADM12
Digital input family
T / C
Terminal / connector variants
RIO
Remote I/O architecture
02 / FAMILY STRUCTURE
ADM Digital I/O Family
ADM11
16-Point Input
Contact input module.
ADM12
32-Point Input
Contact input module.
ADM51
16-Point Output
Contact output module.
ADM52
32-Point Output
Contact output module.
ADM12 VARIANTS
ADM12T — 32-point contact input, terminal type
ADM12C — 32-point contact input, connector type
Yokogawa's RIO upgrade architecture maps ADM12T to ADV169-PM□ and ADM12C to ADV169-PK□. The upgrade modules are 64-channel hardware with the RIO upgrade input count limited to 32 channels. This distinction is useful when evaluating modernization paths for an existing ADM12 installation.
03 / PROCUREMENT
ADM12-S4
Replacement & sourcing support
SALES MANAGER
Miya Zheng
sales@amikon.cn
+86 180 2077 6792
SERVICE
Delivery: 3–5 Days Warranty: 12 Months Packaging: Brand New Payment: T/T
Can ADM12-S4 be replaced by another ADM12 version without checking the connection type?
No replacement decision should be made from the ADM12 family name alone. Yokogawa distinguishes ADM12T terminal-type and ADM12C connector-type modules, so the installed connection arrangement should be matched before ordering.
ADM12-S4 / REPLACEMENT
What should be checked before purchasing ADM12-S4 for an existing RIO installation?
Check the complete part designation, digital input function, 32-point requirement and connection arrangement. The surrounding RIO architecture should also be considered when evaluating a replacement or upgrade.
ADM12-S4 / FAMILY DIFFERENCE
Why is ADM12-S4 not interchangeable with an ADM52 module simply because both have 32 points?
ADM12 is a contact-input family, whereas ADM52 is a contact-output family. Equal point count does not make input and output modules functionally equivalent.
ADM12-S4 / MODERNIZATION
What makes the ADM12-S4 designation important during a RIO modernization project?
Yokogawa provides separate upgrade mappings for ADM12T and ADM12C. The terminal-type version maps to ADV169-PM□, while the connector-type version maps to ADV169-PK□. The original connection form therefore affects the upgrade route.
ADM12-S4 / PROCUREMENT
Why should the complete ADM12-S4 part number be included in a replacement inquiry?
The ADM12 family contains multiple configurations. Providing the complete designation reduces ambiguity and allows the required quantity, destination, date and existing system context to be checked together.
INQUIRY CHECK
ADM12-S4
Part Number · Quantity · Destination · Required Date · Machine/System
