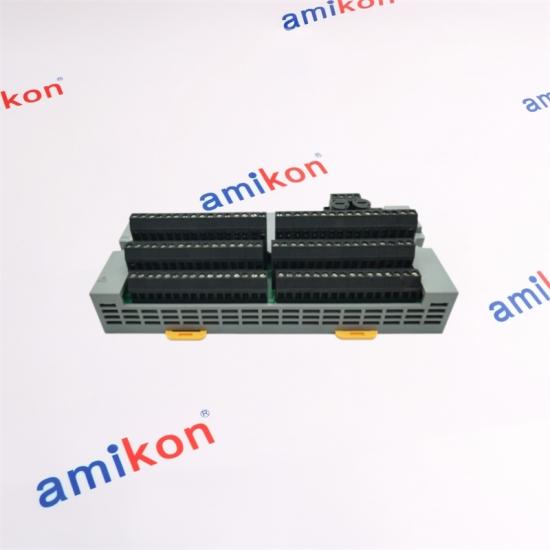

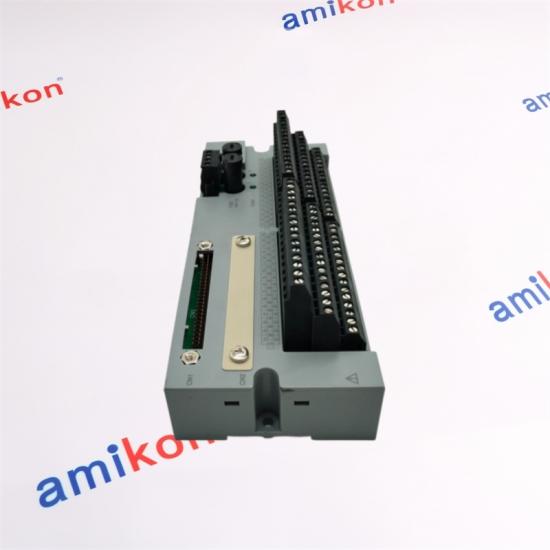

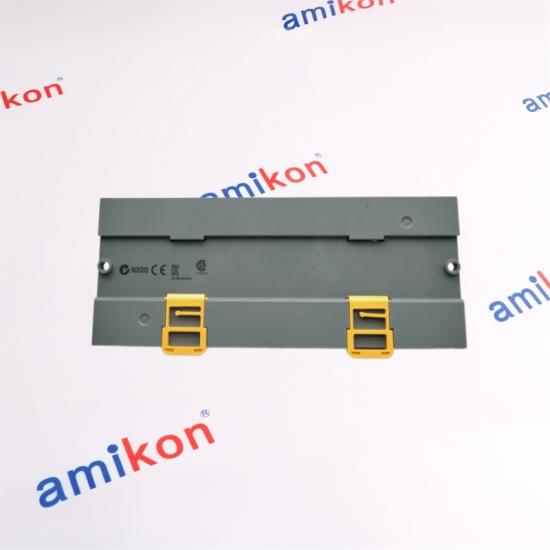

DIN-rail terminal board for 32-point digital signal connections in CENTUM VP FIO installations, used with specified digital I/O modules, adapters and connection cables.
2.0 kV AC for 1 minute between power and READY terminals
External supply
24 V DC ±10%
03 / FUNCTIONAL ROLE & SYSTEM INTEGRATION
Installed System Route
01 CENTUM VP Digital I/O Module
→
02 ATD5A Adapter and AKB331 Cable
→
03 A1BD5D Pressure-Clamp Terminals
→
04 32 Digital Field Signal Points
Integration checkpoint: Match the complete model code, installed hardware, power conditions, connection accessories and engineered assignment before replacement.
20 YEARS OF INDUSTRIAL AUTOMATION SUPPLY
Fast coordination for planned and urgent requirements
Experienced automation support
Inspection and exact-code confirmation
Coordinated global dispatch
AMIKON supports industrial automation buyers with careful part matching, responsive quotations and delivery coordination. ASK FOR AVAILABILITY
Selection checkpoint: Similar appearance does not establish interchangeability. Match the full model code, installed system role and connection arrangement.
05 / FREQUENTLY ASKED QUESTIONS
Engineering FAQ
01 What must match during replacement?
The complete model code, suffix selections, installed accessories, power conditions and system assignment.
02 Can a related model be installed directly?
Only after hardware role, electrical interfaces and engineered configuration are confirmed equivalent.
03 What should be checked before energizing?
Verify mounting, connectors, terminal assignments, grounding, supply conditions and field wiring.
04 How should commissioning be completed?
Check status indications, diagnostics, communication and expected safety I/O behavior.
05 What details help with a quotation? Provide the complete model code, quantity, required condition, destination and installed configuration.
Need an exact-code quotation?
Send the full model identity, quantity and delivery destination.
