INPUT
PT + CT
|
→ |
PROCESS
9907-252

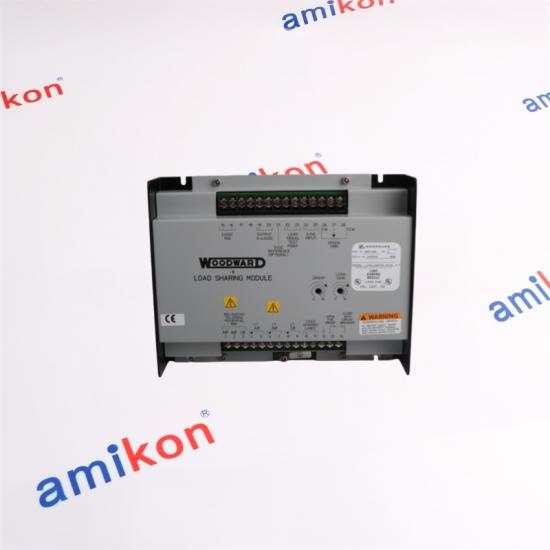

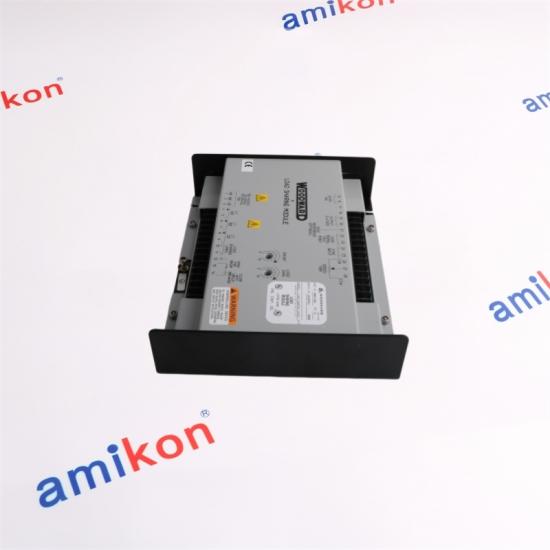

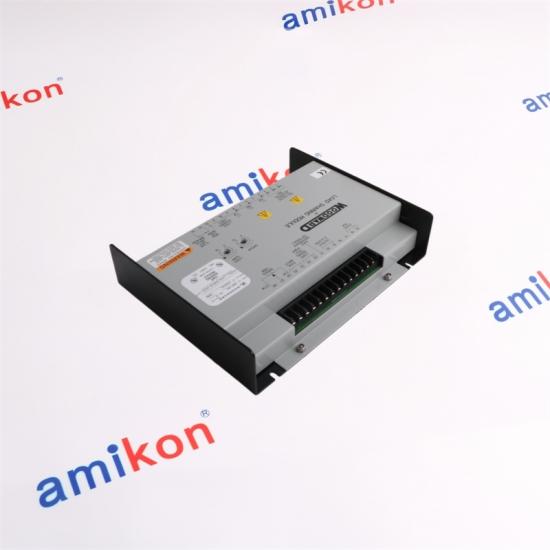

Load Sharing Module
|
→ |
OUTPUT
0.5–4.5 Vdc
|
→ |
CONTROL
Engine Speed
|
|
MODE 01
Isochronous Load Sharing
When both the droop contact and circuit-breaker auxiliary contact are closed, the load-sharing relay is energized and the module operates on the common load-sharing lines for isochronous load sharing.
|
MODE 02
Droop Operation
Droop mode is selected when either the external droop switch or the circuit-breaker auxiliary contact is open. Engine power output then varies according to the selected droop percentage.
|
|
WOODWARD 02035
Technical
Specifications |
* When used with a speed control having a gain of 5% speed change per volt.
|
| Provide adequate ventilation for cooling and enough space for servicing. | Protect the module from direct water exposure and condensation. |
| Keep the control away from high-current, high-voltage and EMI-producing devices. | Protect the module from excessive vibration. |
| Install as close as practical to the electronic engine control. | Do not mount the Load Sharing Module directly on the engine. |
|
Engine Speed Output
0.5–4.5 Vdc output is available from terminals 19 and 20, with terminal 21 available for an optional external 5 Vdc reference. |
SPM-A Synchronizer
Optional synchronization input connects through terminals 24 (+) and 25 (–). |
Speed Trim
An external 10 kΩ, 10-turn potentiometer may be connected to terminals 26, 27 and 28. |
|
273.6 mm
LENGTH MAX.
|
214.1 mm
WIDTH
|
59.2 mm
HEIGHT
|
1397 g
WEIGHT APPROX.
|
–40 to +70°C
OPERATING TEMP.
|
|
40 G
SHOCK · 11 ms
|
4 G
VIBRATION
|
95% RH
NON-CONDENSING TEST
|
|
Parallel Generator Sets
Balanced load sharing between compatible generator sets.
|
Isochronous Systems
Constant-frequency operation with active load matching.
|
Droop Systems
Load control against another generator or infinite bus.
|
Synchronization
May be integrated with the Woodward SPM-A Synchronizer.
|
|
551,867
STOCK PARTS SUPPLIED
|
128
MANUFACTURERS AVAILABLE
|
READY STOCK
STRONG INVENTORY
|
|
FAST RESPONSE
Contact
Information |
Need Woodward 9907-252? Contact our sales team for stock, lead time and quotation.
|
