Brand |
Woodward |
|
Model |
9907-173 |
|
Type |

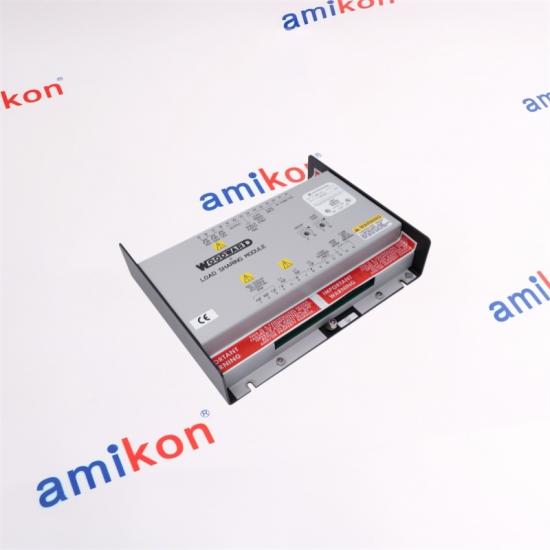

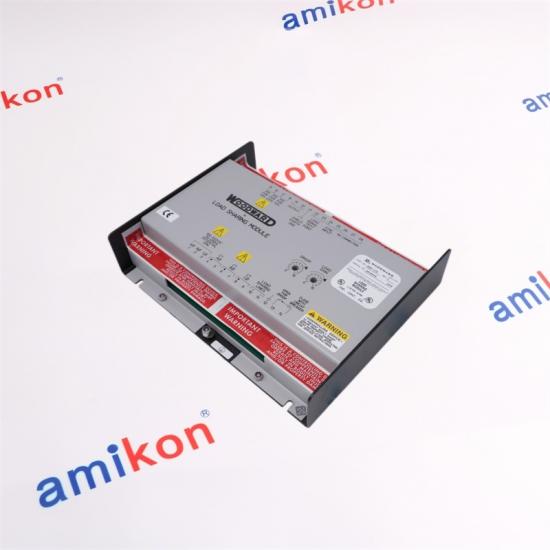

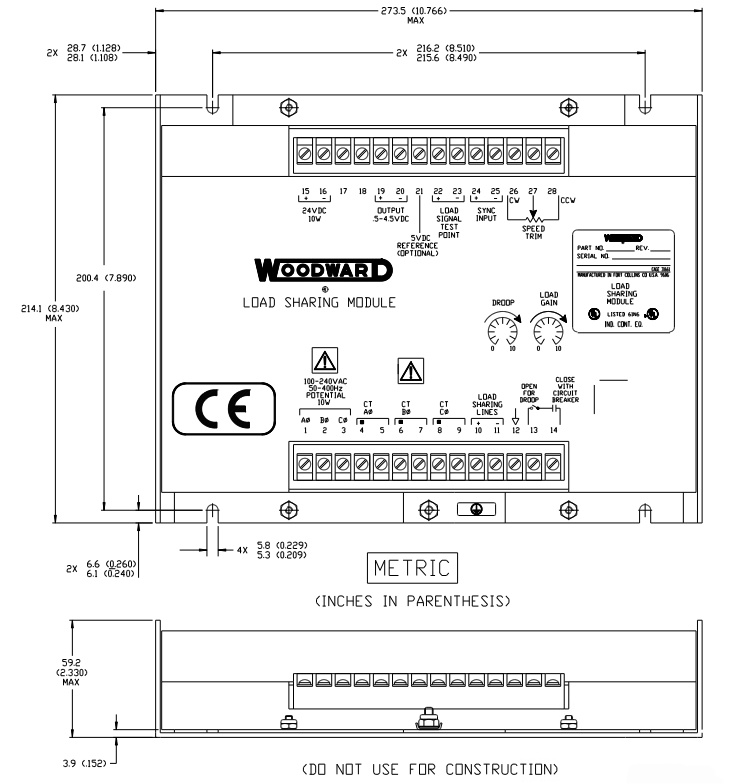

Load Sharing Module |
|
Operating Temperature |
–40 to +70 °C (–40 to +158 °F) |
|
Shock |
40 G, 11 ms sawtooth pulse |
|
|
|
Exclusive Multilingual Support Team |
|
No additional charges, handling charges or hidden charges are incurred |
||
|
No additional charges, handling charges or hidden charges are incurred |
||
General Information
Introduction
The Woodward Load Sharing Module is made for use with engines equipped with speed controls that accept a 0–5 Vdc speed setting. The Load Sharing Module allows use of Woodward power generation accessories and allows load sharing between engines equipped with speed controls that are not manufactured by Woodward and engines controlled with Woodward electronic controls, or controls using other Woodward load sharing modules.
Description
The Load Sharing Module provides isochronous and droop load-sharing capability for engines in generator set applications. Additional equipment in the control system can include the Woodward SPM-A Synchronizer, Import/Export Control, Automatic Generator Loading Control, and Automatic Power Transfer and Loading Control.
Specifications
|
POWER SUPPLY |
18–32 Vdc, approximately 5 W. Protected against undervoltage, overvoltage to +80 Vdc, reverse voltage to –32 Vdc. |
|
3-phase PT Inputs |
100–240 Vac line-to-line, 50–400 Hz. PT input burden is 1.6 W per phase at 240 Vac, 0.4 W per phase at 120 Vac |
|
3-phase CT Inputs |
3–7 Arms at full load, CT input burden at full load is 0.1 VA per phase |
|
Load Sharing Input |
0–3 Vdc into 25 kΩ impedance in isochronous mode, open circuit in droop mode |
|
Sync Input |
Compatible with optional Woodward SPM-A Synchronizer, 0.75% speed change* per volt input |
|
Speed Trim |
±7.5% speed change* with an external 10 kΩ potentiometer |
|
Droop Switch |
The external droop switch is to be wired in series with the auxiliary circuit breaker contact between terminals 13 and 14. Droop mode is selected when either the droop switch or the auxiliary circuit breaker is open |
|
5 Vdc Reference |
Optional external reference used to set output offset and clamp voltages. 10 kΩ input impedance |
9907-173 FAQ
Q1. What operational architecture does the WOODWARD 9907-173 employ to maintain precise speed-governing performance in demanding turbine-control environments?
A: The WOODWARD 9907-173 is engineered as a dedicated electronic control component for turbine and engine applications, providing dependable signal processing and control functionality where stable governing performance is essential.
Q2. How does the WOODWARD 9907-173 accommodate demanding electrical and environmental conditions encountered in industrial control installations?
A: The WOODWARD 9907-173 is designed for industrial-duty service, with its electrical characteristics and environmental specifications intended to support reliable operation in demanding automation and turbine-control systems.
Q3. Which technical parameters should engineers scrutinize when evaluating the WOODWARD 9907-173 for system integration or replacement?
A: Engineers should verify the power-supply requirements, input/output characteristics, operating temperature range, signal compatibility, mounting configuration, and interface requirements of the WOODWARD 9907-173 before integration or replacement.
Q4. Why is the WOODWARD 9907-173 particularly relevant when engineers are addressing legacy turbine-control equipment and hard-to-source replacement requirements?
A: The WOODWARD 9907-173 can be valuable for maintaining existing control architectures where equipment has been in service for many years. Using the correct original part number helps minimize unnecessary system modifications and compatibility risks.
Q5. How can the WOODWARD 9907-173 be technically validated before deployment as a replacement component in an established control system?
A: Validation should involve a careful comparison of the 9907-173 part number, electrical specifications, interface configuration, environmental ratings, and application requirements against the existing installation. This approach helps confirm functional and mechanical compatibility before commissioning.
