01
Breaker Closes
The circuit-breaker auxiliary contact initiates the generator loading sequence. |
02
Ramp Up
Load increases at the selected ramp rate until it matches the system or selected base load. |
03
Load Tracking
The AGLC continuously tracks the generator load while the set remains online. |
04
Unload
An unload command ramps the set down to the trip point before breaker separation. |
|
Bumpless Transfer
The control starts the ramp from the generator's existing load to reduce sudden load changes. |
Adjustable Base Load
Base load may be adjusted using an internal potentiometer or an external 10 kΩ potentiometer. |
Maximum Load Limit
An independent limit prevents the selected base load from exceeding the desired maximum. |
|
Separate Ramp Rates
Load and unload ramp rates are independently adjustable. |
Unload Trip Level
The trip level may be adjusted internally or with an external 2 kΩ potentiometer. |
Breaker Command
The internal relay can initiate breaker opening when the unload trip point is reached. |
| Input Power Option 1 | 88–132 Vac, 50/60 Hz, 2.5 VA |
| Input Power Option 2 | 170–264 Vac, 50/60 Hz, 5 VA |
| Ramp Rate | 20 to 0.33% of full load per second |
| Ramp Time | Approximately 5 seconds to 5 minutes |
| Operating Temperature | –40 to +85 °C |
| Storage Temperature | –55 to +105 °C |
| Maximum Humidity | 95% at 38 °C |
| Vibration | 4 G, 5–500 Hz |
| Shock | 60 G |
|
ENGINEERING DRAWING
Dimensions
AGLC Outline Drawing
Front and side views with the principal enclosure dimensions.
|
 AGLC Outline Drawing · Dimensions shown in millimeters with inches in parentheses
|
|
Load Sharing
Soft load a generator into or out of an existing load-sharing loop.
|
Utility Base Load
Control one or multiple generating units operating in parallel with a utility.
|
Controlled Unloading
Ramp down to a predefined trip level before disconnecting from the bus.
|
|
Reliability
We understand the importance of minimizing downtime and keeping operations running. Fast and efficient delivery remains a priority so customers can receive critical parts as quickly as possible. |
Trust
We work to build lasting relationships based on trust, transparency and integrity. Open communication and honest cooperation are central to strong partnerships. |
|
Innovation
We use modern technology and industry practices to create an accessible platform where customers can efficiently locate and request industrial parts. |
Customer Service
We provide responsive support to help customers meet their industrial-equipment requirements and improve the sourcing experience. |
|
FAST RESPONSE
Welcome
to Inquire |
|
| 6DS1122-8AA | 6DS1124-8AA |
| 6DS1211-8AA | 6DS1213-8AA |
| 6DS1220-8AA | 6DS1222-8BA |
| 6DS1223-8AA | 6DS1300-8AB |
| 6DS1311-8AE | 6DS1332-8RR |
| 3503E | 3604E |
| 3501E | 3805EN |
| 3703E | 8300A |
| 7400208C-020 | 3008N |
| 3625N | 4200N |
| 51304159-100 | 51304584-100 |
| 51305072-700 | 51306803-100 |
| 900B01-0101 | 900G02-0102 |
| 900H03-0102 | TC-HAO081 |
| TC-IDA161 | MC-PRHM01 51404109-175 |
|

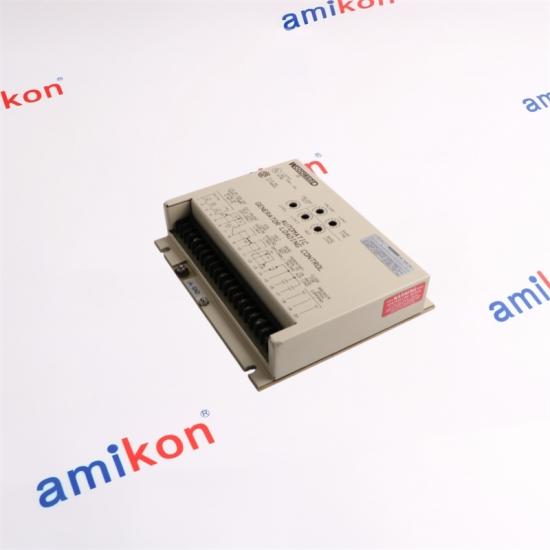

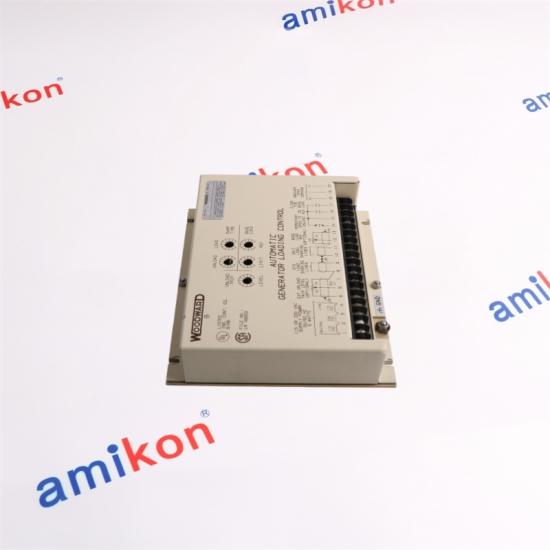

Looking for Woodward 9905-096?
AGLC · Soft Load / Unload · Base Load · Generator Load Management
