Descripution-R-S108V01-16-24VDC-C5-1

The R-S108V01-16-24VDC-C5-1 is an industrial relay terminal board and analog input module (EMOD) designed for the Ovation Distributed Control System (DCS). It is rated for 24VDC and typically handles 16 channels of signals (such as 4-20mA) for interfacing field devices.

Related introduce -Analog Input Module (14 bits)

The combined Personality and Electronics Modules form the 14 Bit Analog Input Module. Eight sets of individually isolated input channels are provided. The input signals are conditioned and routed through the appropriate Personality Module to the Electronics Module. The Personality Module also provides surge protection to protect the input circuits of the Electronics Module. The Electronics Module performs the analog to digital conversions and provides interfacing to the Ovation Serial I/O Bus.

No thermocouple provisions are provided for this module

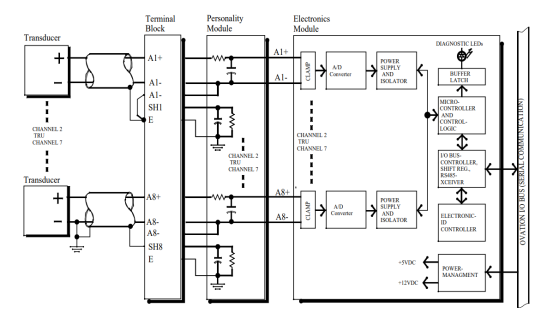

Analog Input Module (14 bits)-Module Block Diagram

The simplified block diagram for the voltage input configuration of the14 bit Analog Input module is shown below. The channel #1 input is grounded locally at the cabinet, and grounding at the field device is shown for the channel #8 input.

Figure. Voltage Input Connections
