16 POINT
|
CURRENT INPUT
|
USER-CONFIGURABLE
|
| INDUSTRIAL AUTOMATION • SAFETY SYSTEM COMPONENT | AMIKON LIMITED |
|
◆
Current-Input Field Interface

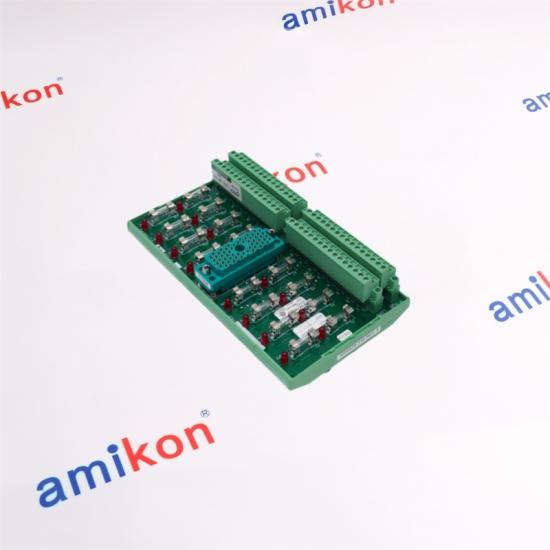

The Triconex 7400195-210 corresponds to the 9771-210 current-input termination panel used with compatible Tricon analog input arrangements. The panel provides 16 field termination points and is designed as a user-configurable interface between current-input field circuits and supported Tricon analog input modules. The termination arrangement incorporates current limiting and current-to-voltage conversion functions. Each positive terminal uses a 180 Ω series resistor, while the current-input circuit uses a precision 250 Ω resistor for the applicable voltage conversion. The 9771-210 can be configured for compatible analog input applications using 0–5 VDC, 0–10 VDC, or −5 to +5 VDC ranges, depending on the connected Tricon analog input module and its configuration. |
IDENTIFICATION
|
| Termination Type | Current input | Point Count | 16 |
| Positive Terminal | 180 Ω series resistor | Conversion | Precision 250 Ω resistor |
| Compatible Range | 0–5 VDC | Additional Range | 0–10 VDC |
| Bipolar Range | −5 to +5 VDC | Power Arrangement | Redundant 24 VDC |
| Power Isolation | Diode ORing | 32-Point Arrangement | Two panels |
|
01
Field Current
The transmitter or current-input field circuit enters the designated termination points. |
→ |
02
Current Limiting
A 180 Ω series resistor is incorporated at each positive terminal for current limiting. |
→ |
03
Voltage Conversion
A precision 250 Ω resistor provides the current-to-voltage conversion for the compatible analog-input arrangement. |
|
24V
DC
|
Redundant Power Inputs
The termination arrangement supports redundant 24 VDC sources. Diode ORing provides isolation between the redundant source paths. |
16-Point Architecture
The 9771-210 provides a 16-point termination arrangement. A 32-point compatible analog input module requires two termination panels. |
|
Application Scope
The 7400195-210 / 9771-210 is intended for field termination of current-input circuits associated with compatible Tricon analog input modules. |
|
|
TARGET ASSEMBLY
7400195-210
9771-210 current-input termination panel
|
→ |
ASSOCIATED TERMINATION ASSEMBLY
3000656-210
Associated ETA designation
|
→ |
ASSOCIATED CABLE
4000103-510
Associated cable designation
|
|
9761-210
16-point current-input termination associated with 0–5 VDC analog-input arrangements.
|
9761-410
16-point current-input termination associated with 0–10 VDC analog-input arrangements.
|
9762 Series
Current-input termination variants used with corresponding analog-input configurations.
|
9771-210
User-configurable 16-point current-input termination supporting 0–5 VDC, 0–10 VDC and −5 to +5 VDC compatible configurations.
|
The defining characteristic of the 9771-210 is its user-configurable current-input arrangement. It is not simply a generic terminal block: the panel incorporates the resistive elements needed for current limiting and signal conversion and is matched to compatible Tricon analog input modules and voltage-range configurations.
|
Compatible Analog Input Family
The 9771-210 is associated with Tricon analog input modules including the 3700, 3700A, 3703E and 3721 families. The exact signal range and connection arrangement depend on the connected module. |
16-Point vs. 32-Point
The 9771-210 provides 16 termination points. When applied to a 32-point compatible analog input module, two termination panels are required to provide the complete point capacity. |
|
AMIKON INDUSTRIAL AUTOMATION SUPPORT
Request a Quote for 7400195-210
For a quotation, please provide the part number, quantity, destination, required date and machine/system. This allows the order request to be handled more efficiently. |
SALES MANAGER
Miya Zheng
Email: sales@amikon.cn
Phone / WhatsApp: +86 180 2077 6792
Delivery: 3–5 days
Warranty: 12 months
|
| Packaging Brand New |
Delivery Way E-packing / FedEx / EMS / TNT / DHL / UPS |
Payment Term T/T |
Inquiry Details Part Number / Quantity / Destination / Required Date / Machine-System |
|
Q1. Can 7400195-210 be used for a current-input field circuit when the Tricon analog input module is configured for a voltage range?
Yes. The 9771-210 is specifically arranged for current-input termination and uses a precision 250 Ω resistor to convert the current signal to a voltage suitable for compatible analog input configurations. The connected AI module must support the applicable configured voltage range. |
Q2. How many 7400195-210 panels are required when replacing a termination arrangement for a 32-point Tricon analog input module?
Two panels are required because each 9771-210 provides 16 termination points. Two 16-point panels provide the termination capacity corresponding to a 32-point analog input module. |
|
Q3. What should be matched before ordering a replacement 7400195-210 for an existing Tricon installation?
The existing panel designation, analog input module type, configured voltage range, point count, field wiring arrangement and associated cable should be checked. The key requirement is that the replacement termination arrangement matches the electrical configuration of the connected AI module. |
Q4. Does 7400195-210 cover only 0–5 VDC applications, or can it also support 0–10 VDC and −5 to +5 VDC configurations?
The 9771-210 is listed for compatible analog input configurations using 0–5 VDC, 0–10 VDC and −5 to +5 VDC ranges. The applicable range is determined by the connected analog input module and its configuration. |
|
Q5. Why does 7400195-210 have both a 180 Ω resistor and a 250 Ω resistor in its termination arrangement?
The two resistor values have different functions. The 180 Ω series resistor is used at each positive terminal for current limiting, while the precision 250 Ω resistor provides current-to-voltage conversion for the compatible analog-input circuit. They therefore should not be treated as interchangeable components. |
|
|
