TRICONEX 3382S2 Enhanced Pulse Input (EPI) module

Understand what we do

The industrial automation and control industry serves as the "nerve center" and "brain" of manufacturing and infrastructure. It utilizes computer systems, software, networks, robotics, along with various sensors, controllers, and actuators to achieve automated control, monitoring, and optimization of industrial machinery, production processes, and plant facilities.

Its core objectives are to enhance production efficiency, ensure product quality, safeguard personnel and equipment safety, and reduce energy consumption and operational costs, all while minimizing human intervention.

From traditional mechanical manufacturing, chemical and metallurgical industries, to modern automotive production lines, food packaging, semiconductor manufacturing, and further extending to smart buildings, water treatment plants, and power stations—the application of industrial control technology spans nearly all fields of modern industry.

Miya Whatsapp/phone: +86 18020776792

Miya Email: sales@amikon.cn

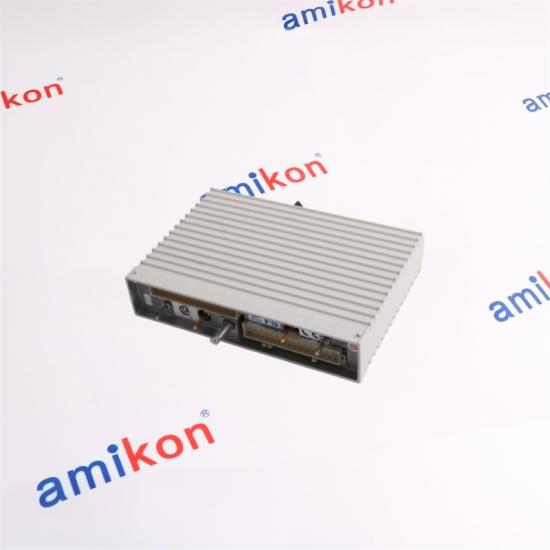

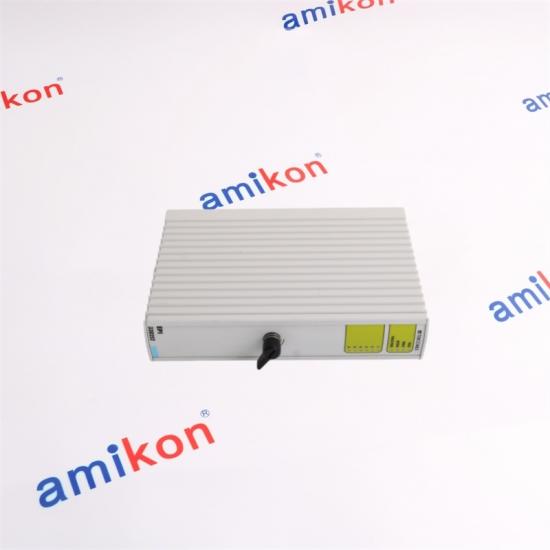

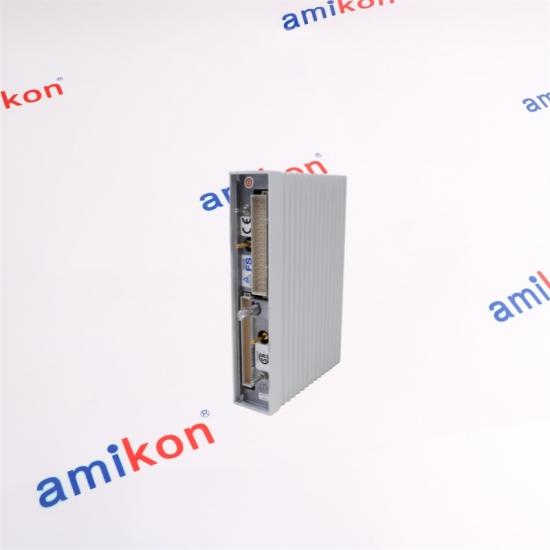

Overview

The Triconex EPI3382S2 is an Enhanced Pulse Input (EPI) module designed for the Triconex Tri-GP safety controller (compatible with v2.1.x and later). It features 6 independently configurable channels and is typically used for speed, RPM, acceleration, and jerk measurements.

Triconex Tri-GP safety controller

The Tri-GP controller has been designed from its inception with self-diagnostics as a primary feature. Triple-Modular Redundant (TMR) architecture (shown in Figure 1) ensures fault tolerance and provides error-free, uninterrupted control in the event of hard failures of components or transient faults from internal or external sources.

Each I/O module houses the circuitry for three independent channels. Each channel on the input modules reads the process data and passes that information to its respective main processor. The three Main Processor (MP) modules communicate with each other using a proprietary, high-speed bus system called the TriBus.

Extensive diagnostics on each channel, module, and functional circuit quickly detect and report operational faults by means of indicators or alarms. This fault information is available to an application. It is critical that an application properly manage fault information to avoid an unnecessary shutdown of a process or plant.

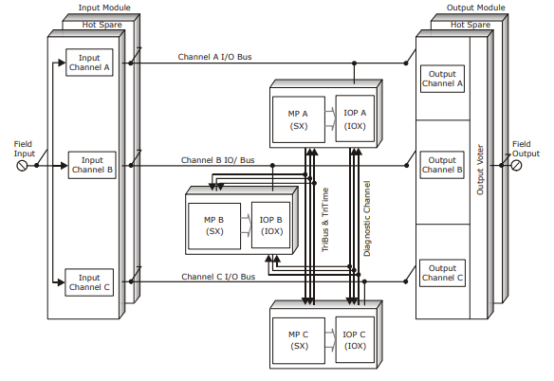

Figure 1 Typical Triconex Controller

System Diagnostics

To improve system availability and safety, a safety system must be able to detect failures and provide the means for managing failures properly. The controller’s diagnostics may be categorized as:

Reference diagnostics: Comparing an operating value to a predetermined reference, such as a system specification.

Comparison diagnostics: Comparing one component to another, such as one independent channel with two other independent channels.

Field device diagnostics: Diagnostics are extended to a system’s field devices and wiring.
