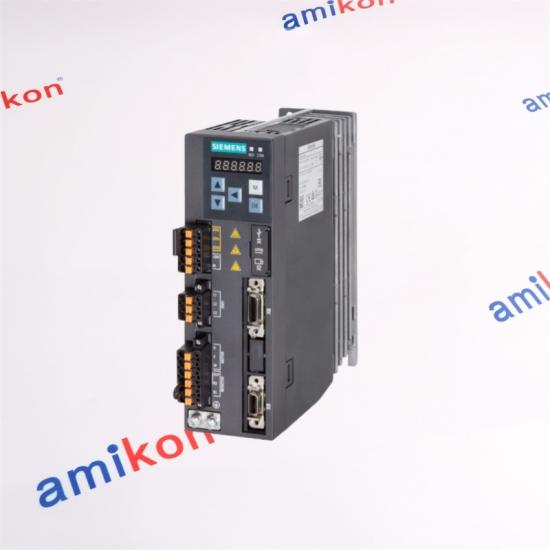

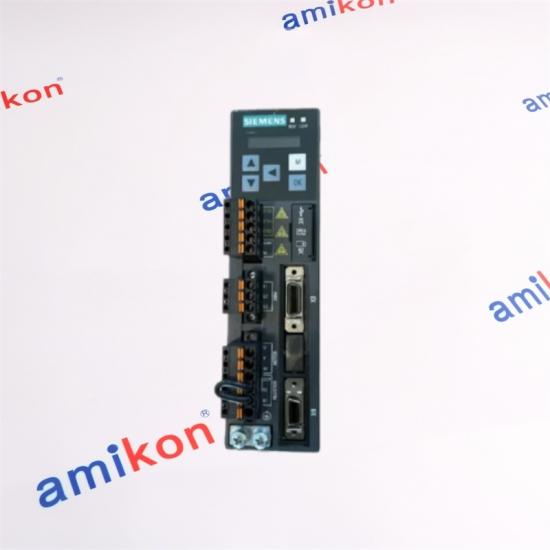

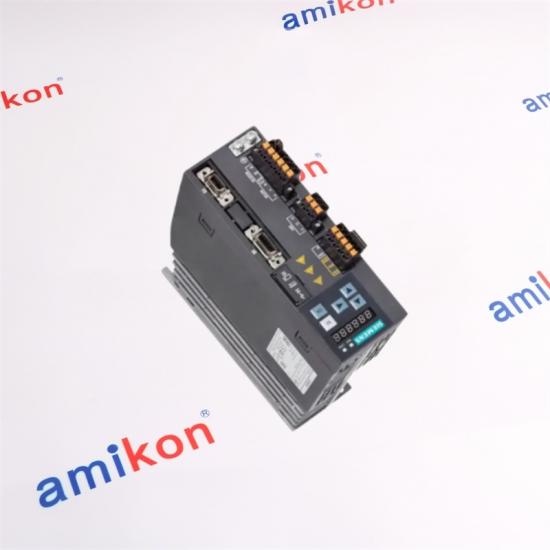

A SINAMICS V90 servo drive with PROFINET communication, designed for a 200–240 V AC single-phase or three-phase supply and supporting a motor rating of up to 0.4 kW.
| Article Number | 6SL3210-5FB10-4UF1 |
| Product Family | SINAMICS V90 Servo Drive |
| Communication | PROFINET |
| Input Voltage | 200–240 V AC, 1-phase / 3-phase |
| Permissible Voltage Range | -15% to +10% |
| Input Frequency | 45–66 Hz |
| Rated Input Current | 5.0 A / 3.0 A |
| Rated Output Current | 2.6 A |
| Maximum Output Current | 7.8 A |
| Output Frequency | 0–330 Hz |
| Maximum Supported Motor Power | 0.4 kW |
| Degree of Protection | IP20 |
| Frame Size | FSB / Size B |
| Dimensions (W × H × D) | 55 × 170 × 170 mm |
| Weight | Approx. 1.25 kg |
The 6SL3210-5FB10-4UF1 is suited to servo motion configurations using the SINAMICS V90 platform with PROFINET. In an automation environment, the drive acts as a key link between the control network and the motor axis.
Used where a compact servo drive is required for a 0.4 kW motor axis and communication is integrated through PROFINET.
PROFINET connectivity makes the drive appropriate for motion systems where drive communication is integrated into the wider automation network.
The Size B housing and 55 × 170 × 170 mm dimensions support installations where cabinet space and mechanical layout must be carefully managed.
In a servo-controlled machine, an unavailable or failed drive can interrupt the complete motion sequence. Users commonly search for the exact 6SL3210-5FB10-4UF1 part number when a machine axis can no longer operate normally, when the existing drive requires replacement, or when a matching PROFINET drive is needed to restore the original system configuration.
Because the drive is part of the motor-control chain, an extended interruption can leave the associated axis unavailable and may affect machine throughput. Matching the part number, voltage class, motor power and communication architecture is therefore important before replacement.
The 6SL3210-5FB10-4UF1 is a SINAMICS V90 servo drive equipped with PROFINET communication. It belongs to the 200 V class of the SINAMICS V90 servo drive range.
Yes. This model is designed for a 200–240 V AC supply and can operate with either single-phase or three-phase input within its specified voltage range.
The drive supports a motor power of up to 0.4 kW and has a rated output current of 2.6 A. The maximum output current is 7.8 A.
This Size B drive has dimensions of 55 mm × 170 mm × 170 mm, measured as width × height × depth, with an approximate weight of 1.25 kg.
The part number identifies a specific combination of drive family, PROFINET communication, 200–240 V supply class, 0.4 kW motor capability and Size B mechanical format. Using the exact model helps maintain consistency with the existing drive configuration.
