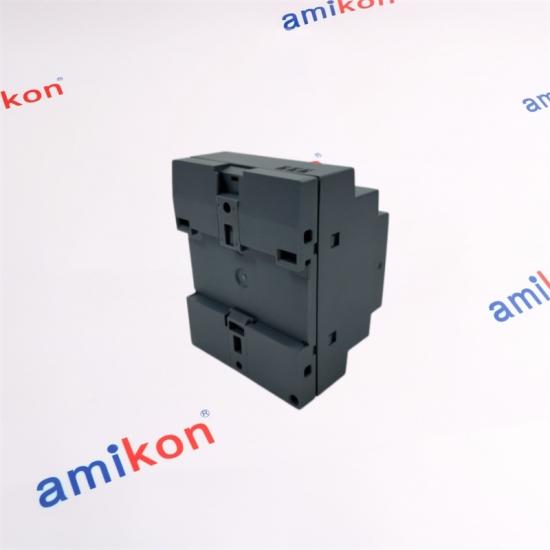

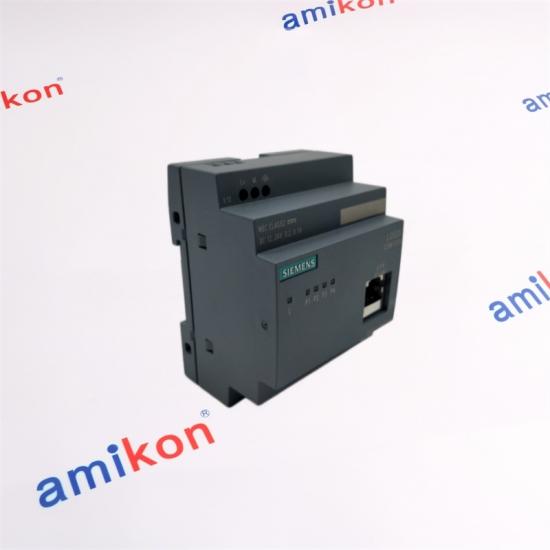

Siemens 6GK7177-1MA20-0AA0

LOGO! Product • Industrial Automation

Product Overview

Part Number: 6GK7177-1MA20-0AA0

Product Family: Siemens LOGO!

Product Type: Compact Switch Module

Delivery: 3–5 Days

Warranty: 12 Months

Packaging: Brand New

Request Your Quote

Please provide Part Number, Quantity, Destination, Required Date and Machine/System when making an inquiry.

Sales Manager: Miya zheng Email: sales@amikon.cn

Product Categories

Brands
- ABB
- BENTLY NEVADA
- HONEYWELL
- EMERSON
- ALLEN BRADLEY
- YOKOGAWA
- GENERAL ELECTRIC
- TRICONEX
- ICS TRIPLEX
- HIMA
- BACHMANN
- SIEMENS
- PROSOFT
- SCHNEIDER
- FOXBORO
- OTHERS

New Products

Product Details

Overview Specifications Application FAQ Recommended Inquiry

SIEMENS LOGO! INDUSTRIAL COMMUNICATION

Siemens 6GK7177-1MA20-0AA0

LOGO! CSM12/24 Compact Switch Module

The Siemens 6GK7177-1MA20-0AA0 is a LOGO! CSM12/24 compact unmanaged switch designed for connecting a LOGO! controller and additional nodes to Industrial Ethernet. Siemens specifies 10/100 Mbit/s transmission, four RJ45 interfaces and a front diagnostic port.

PRODUCT IDENTITY

LOGO! CSM12/24 | Article No. 6GK7177-1MA20-0AA0

KEY POINTS

4 × RJ45

10/100 Mbit/s Industrial Ethernet

24 V DC rated supply
Unmanaged switch
IP20 enclosure

◆

Transfer Rate

10 / 100 Mbit/s

◆

Power Supply

24 V DC

◆

Interfaces

4 × RJ45

◆

Protection

IP20

PRODUCT STATUS PM300: Active Product LOGO! CSM unmanaged family

TECHNICAL PROFILE

Technical Specifications

Manufacturer	Siemens
Article Number	6GK7177-1MA20-0AA0
Product Type	LOGO! CSM12/24 Compact Switch Module
Product Family	LOGO! CSM unmanaged
Transmission Rate	10 Mbit/s / 100 Mbit/s
RJ45 Interfaces	4 electrical connections for network components or terminal equipment
Switch Type	Unmanaged
Rated Supply Voltage	24 V DC
Supply Voltage Range	10.2 ... 30.2 V DC
Maximum Current Consumption	0.15 A
Rated Power Loss	1.5 W
Power Connection	3-pole terminal block
Operating Temperature	0 ... 55 °C
Storage / Transport Temperature	-40 ... +70 °C
Relative Humidity	Maximum 90% at 25 °C, without condensation
Protection Rating	IP20
Dimensions W × H × D	71.5 × 90 × 58.2 mm
Net Weight	0.15 kg
Mounting	35 mm DIN-rail mounting; wall mounting
Multiport Mirroring	No
Switch-Managed	No

NETWORK ROLE

Application & Failure Scenario

Where It Fits

The module is intended for compact Industrial Ethernet arrangements involving a Siemens LOGO! controller and additional network nodes. Siemens identifies connection of LOGO! versions 0BA7 / 0BA8 and up to three further nodes.

When It Gets Searched

Maintenance teams may identify this exact article when an existing LOGO! Ethernet connection becomes unavailable, a switch module requires replacement, or the original network topology must be restored without changing the established panel arrangement.

Operational Impact

A failed network connection can interrupt communication between connected automation nodes. In a running machine or control panel, loss of Ethernet communication can therefore increase troubleshooting time and may contribute to process interruption when network communication is required for the application.

Network design note: This is an unmanaged switch. The four RJ45 connections, 10/100 Mbit/s transmission rate and 10.2–30.2 V DC supply range should be matched with the existing installation before replacement.

DELIVERY

3–5 Days

WARRANTY

12 Months

PACKAGING

Brand New

TECHNICAL QUESTIONS

Frequently Asked Questions

Q1. What network function does Siemens 6GK7177-1MA20-0AA0 provide?

It provides an unmanaged Industrial Ethernet switching function with four RJ45 electrical connections and supports 10 Mbit/s and 100 Mbit/s transmission rates.

Q2. Which LOGO! configuration is associated with Siemens 6GK7177-1MA20-0AA0?

The Siemens product description specifies connection of a LOGO! controller in the 0BA7 / 0BA8 range together with up to three additional nodes to Industrial Ethernet.

Q3. What DC supply should be provided to Siemens 6GK7177-1MA20-0AA0?

The rated supply voltage is 24 V DC, while the specified supply range is 10.2 to 30.2 V DC. The maximum current consumption is 0.15 A.

Q4. How can Siemens 6GK7177-1MA20-0AA0 be installed inside a control cabinet?

The product supports mounting on a 35 mm DIN rail and also supports wall mounting. Its dimensions are 71.5 × 90 × 58.2 mm.

Q5. Is Siemens 6GK7177-1MA20-0AA0 a managed Ethernet switch?

No. Siemens identifies the product as an unmanaged switch. The product data also indicates that switch management and multiport mirroring are not provided.
