SIEMENS 6GK1162-3AA00 CP 1623 Communication Processor

Calculate shipping

Quotation Request

INDUSTRIAL ETHERNET

SIEMENS
6GK1162-3AA00

SIMATIC NET CP 1623

PCI Express communication processor for connecting a PC or industrial PC to Industrial Ethernet, with an integrated two-port switch.

PCIe x1
Host interface

2 x RJ45
Integrated switch

1 Gbit/s
Maximum rate

Supports 10/100/1000 Mbit/s Ethernet operation. The two RJ45 ports form a compact switching path for PC-based S7 communication environments.

01
Fast delivery

02
Quick support

03
Global network

International Delivery on the Day | Quick Response Support | Intercontinental Cooperation Network

Sales Manager
Miya zheng

EMAIL MIYA

Product Categories

Brands
- ABB
- BENTLY NEVADA
- HONEYWELL
- EMERSON
- ALLEN BRADLEY
- YOKOGAWA
- GENERAL ELECTRIC
- TRICONEX
- ICS TRIPLEX
- HIMA
- BACHMANN
- SIEMENS
- PROSOFT
- SCHNEIDER
- FOXBORO
- OTHERS

New Products

Product Details

PRODUCT|SYSTEM FIT|SUPPLY|FAQ|MODELS

PC-BASED INDUSTRIAL ETHERNET COMMUNICATION

SIEMENS 6GK1162-3AA00

SIMATIC NET CP 1623

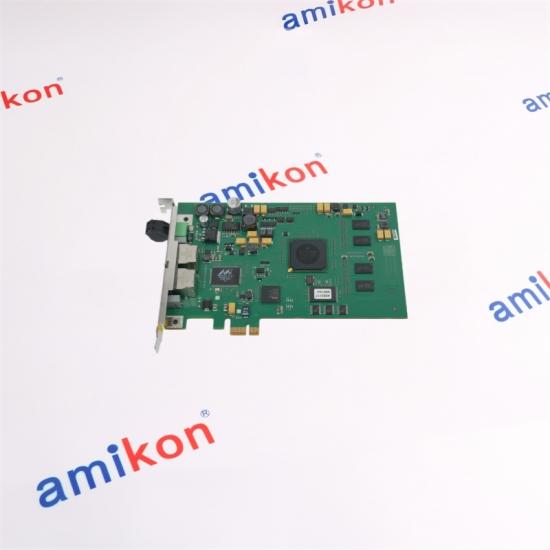

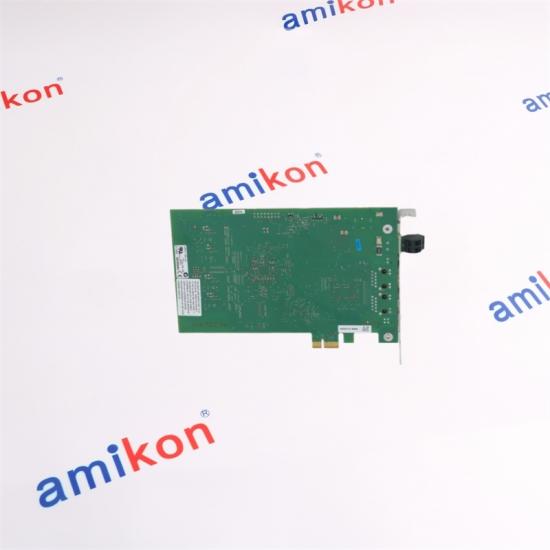

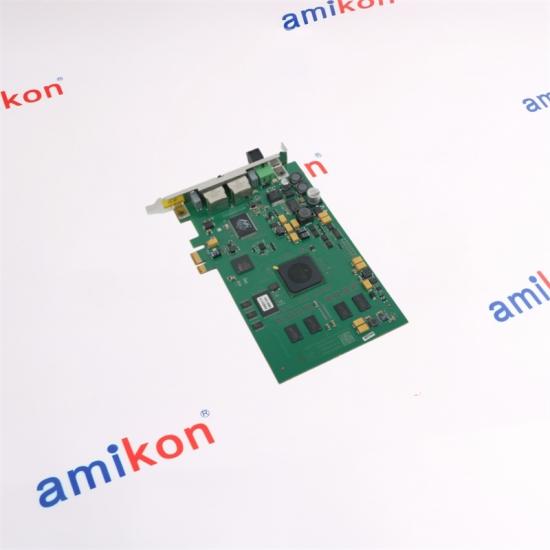

The CP 1623 is a PCI Express x1 communications processor that connects a PC or industrial PC to Industrial Ethernet. Its integrated two-port RJ45 switch supports 10, 100 and 1000 Mbit/s operation and works with HARDNET-IE S7 and S7-REDCONNECT environments.

INDUSTRIAL CONTROL

EXACT ORDER CODE

SYSTEM MATCHING

GLOBAL DELIVERY

TECHNICAL PROFILE

Configuration Points That Affect Fit

01	Host interface	PCI Express x1	3.3 V and 12 V backplane supply
02	Network ports	2 x RJ45	Integrated two-port Industrial Ethernet switch
03	Transfer rates	10 / 100 / 1000 Mbit/s	Automatic Ethernet rate support
04	Optional supply	10.5 to 32 V DC	External supply permits independent switch operation
05	Power loss	7.6 W	Plan enclosure cooling and slot airflow
06	Operating range	5 to 55 deg C	Non-condensing humidity up to 95 percent
07	Software environment	HARDNET-IE S7 / S7-REDCONNECT	Check the installed SIMATIC NET release
08	Installation focus	PC slot, power and driver match	Confirm host hardware before exchange

MATCH THE EXACT ORDER CODE

Send clear markings and installed-system details for a focused quote.

EMAIL MIYA

WHATSAPP 86-18020776792

Sales Manager
Miya Zheng

APPLICATION VIEW

Installation, Operation and Commissioning

Two network paths

The two RJ45 connectors form an integrated switch, allowing a PC station to join a line or local star segment without a separate two-port device.

External-power option

An external DC connection can maintain the switching function independently from the host PC. The wiring plan must preserve grounding and the permitted voltage range.

Host integration

The card uses a PCI Express x1 interface. Slot availability, BIOS behavior, operating system support and installed SIMATIC NET components should be checked before replacement.

Commissioning

Verify link speed, network addressing, S7 communication, redundancy behavior where used, event status and traffic continuity before returning the station to production.

SYSTEM RELATIONSHIP

Series Position and Selection Boundary

CP 1623	PCIe x1; 2 x Gigabit-capable RJ45	For PC-based S7 communication with integrated switching
Standard PC NIC	General Ethernet connection	Not automatically equivalent to HARDNET-IE S7 or S7-REDCONNECT duty
External IE switch	Network distribution device	Does not replace the CP host communication function
Installed PC station	Hardware plus SIMATIC NET stack	Compatibility depends on the complete host configuration

Selection rule: confirm the complete order code, hardware revision, mating components, installed architecture and required behavior before shipment.

AMIKON GLOBAL AUTOMATION SUPPORT

Fast and dependable delivery We help customers obtain current and discontinued automation parts while reducing maintenance delay.	QUALITY \| RELIABILITY \| TRUST	Availability with accountable service Broad brand coverage, responsive coordination and transparent communication support urgent plant needs.
	Customer focus Industrial automation supply Legacy-system support Order tracking Worldwide coordination

Our goal is to keep production moving through careful part matching, efficient delivery and lasting customer relationships built on quality, reliability and honest communication.

MATCH THE EXACT ORDER CODE

Send clear markings and installed-system details for a focused quote.

EMAIL MIYA

WHATSAPP 86-18020776792

Sales Manager
Miya Zheng

Return support

Contact us within 7 days after receipt if a problem appears. Keep the item in its original condition and state the specific reason. After the returned item is received and checked, an eligible return or replacement can be arranged. Return shipping remains the buyer's responsibility.

BUYER FAQ

Questions Before Ordering 6GK1162-3AA00

Q1	Can 6GK1162-3AA00 be replaced by a standard Ethernet card?
	Not as an assumed one-to-one exchange. The CP 1623 role includes the Siemens PC communication stack and HARDNET or REDCONNECT use. Validate the application architecture first.

Q2	Does 6GK1162-3AA00 need external 24 V DC?
	It can receive power from the PCIe backplane. External 10.5 to 32 V DC is optional and can support switch operation independently of the host PC.

Q3	What should be checked before ordering 6GK1162-3AA00?
	Confirm the full order number, host PC model, available PCIe slot, installed operating system, SIMATIC NET release, network topology and external-power wiring.

Q4	What network speed does 6GK1162-3AA00 support?
	Its two RJ45 Industrial Ethernet ports support 10, 100 and 1000 Mbit/s.

Q5	Which acceptance checks suit 6GK1162-3AA00?
	Check both links, negotiated speed, host recognition, S7 sessions, redundancy behavior when configured and uninterrupted traffic through the integrated switch.
