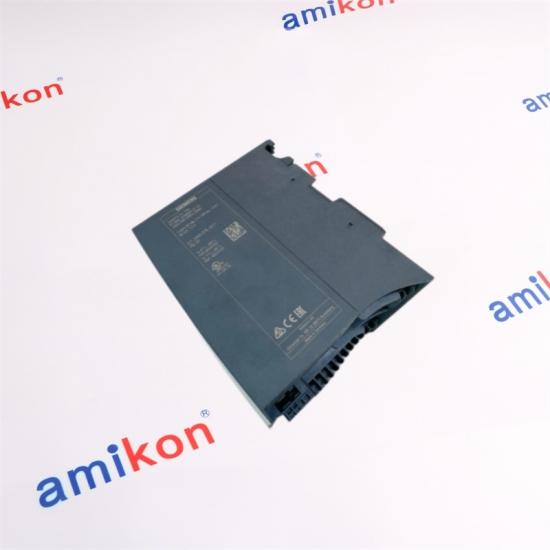

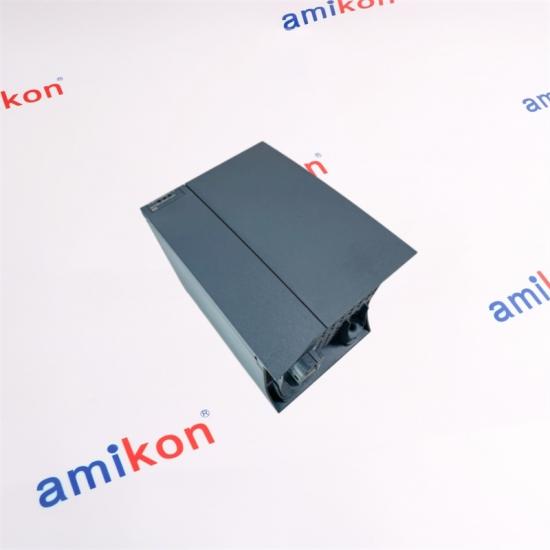

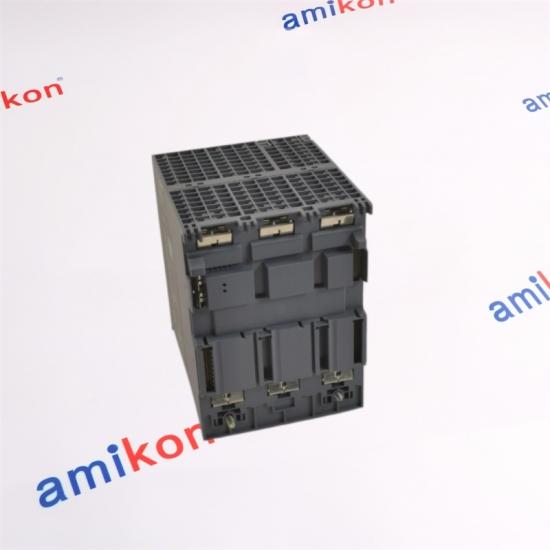

SIMATIC S7-1500 system power supply with buffer functionality, PS 60 W 24/48/60 V DC HF, designed to supply the S7-1500 backplane bus and support retentive CPU RAM operation.
|
INPUT
24 / 48 / 60 V DC
|
BACKPLANE POWER
60 W
|
BUFFER TIME
20 ms
|
|
PRODUCT FAMILY SIMATIC S7-1500
PRODUCT TYPE PS 60 W 24/48/60 V DC HF
ARTICLE NUMBER 6ES7505-0RB00-0AB0
|
FUNCTION
Supplies operating voltage to the S7-1500 backplane bus.
BUFFER FUNCTION
Provides stored-energy support for voltage interruption conditions.
CPU RAM SUPPORT
Allows the CPU to retain RAM data retentively during supported power interruption conditions.
|
| Parameter | Value |
| Rated supply voltage | 24 V / 48 V / 60 V DC |
| Permitted DC range | 19.2 V to 72 V static; 18.5 V to 75.5 V dynamic |
| Backplane bus power | 60 W |
| Voltage interruption buffering | 20 ms |
| Rated input current at 24 V DC | 3 A |
| Rated input current at 48 V DC | 1.5 A |
| Rated input current at 60 V DC | 1.2 A |
| Reverse polarity protection | Yes |
| Short-circuit protection | Yes |
|
SYSTEM ROLE
Built Around S7-1500 Power ContinuityThe 6ES7505-0RB00-0AB0 is used within an SIMATIC S7-1500 architecture to provide power to the backplane bus. Its buffer functionality is particularly relevant where a brief interruption of the DC supply could affect continued controller operation. In maintenance situations, this part is commonly searched when an S7-1500 station experiences power-supply faults, unexpected controller shutdowns, backplane power problems, or loss of retentive CPU operation. A failed or unsuitable system power supply can contribute to production interruption and extended troubleshooting time. |
|
◆
