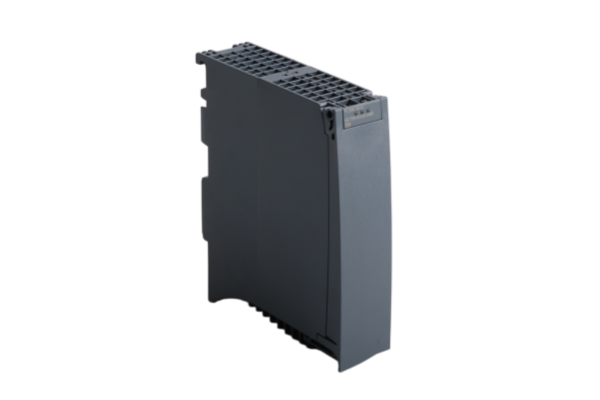

Siemens 6ES7505-0KA00-0AA0 is used as a compact system power supply for the SIMATIC S7-1500 automation platform. With a rated 24 V DC input and 25 W power feed to the backplane bus, it supplies operating voltage to the internal electronics of the connected S7-1500 modules.
Compact power support for the internal backplane bus architecture of SIMATIC S7-1500 systems.
The Siemens 6ES7505-0KA00-0AA0 is used in SIMATIC S7-1500 automation systems to provide operating power to the backplane bus. It is particularly relevant in configured station architectures where additional system power support is required for connected modules.
Used within S7-1500 control stations supporting automated production equipment.
Supports the internal module power architecture of configured automation racks.
Suitable for integrated S7-1500 machine control environments with multiple system modules.
Customers may search for Siemens 6ES7505-0KA00-0AA0 when an S7-1500 station shows power-related diagnostic conditions, fails to provide stable backplane operation, or requires replacement of the installed system power supply during maintenance or repair.
Because the module supports the operating voltage of the S7-1500 backplane bus, a failure can interrupt the availability of connected automation hardware. In a running production environment, extended replacement time may increase machine downtime and delay the return of the control system to normal operation.
The Siemens 6ES7505-0KA00-0AA0 is a PS 25W system power supply designed to feed operating voltage to the backplane bus of a SIMATIC S7-1500 station.
The rated supply voltage is 24 V DC. The permissible static input range is 19.2 to 28.8 V DC, while the dynamic range extends from 18.5 to 30.2 V DC.
The module provides up to 25 W of power feed to the backplane bus for the internal operating requirements of the connected S7-1500 modules.
The module includes reverse-polarity protection and short-circuit protection. It also provides a 20 ms stored-energy time during a supply interruption.
Before replacement, confirm the exact part number, the 24 V DC supply arrangement, station configuration, connected module load requirements and the physical installation layout of the S7-1500 system.
