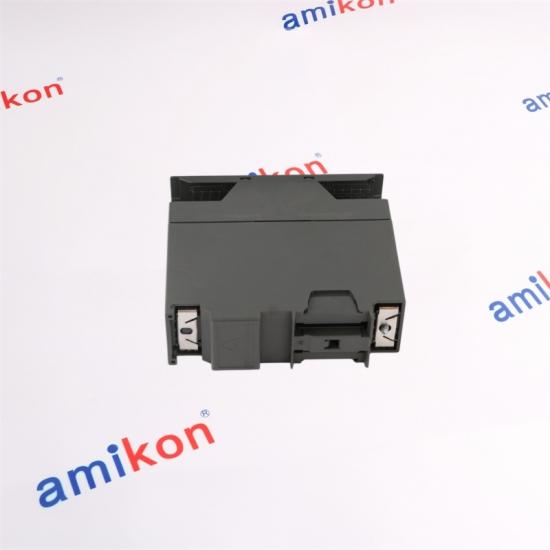

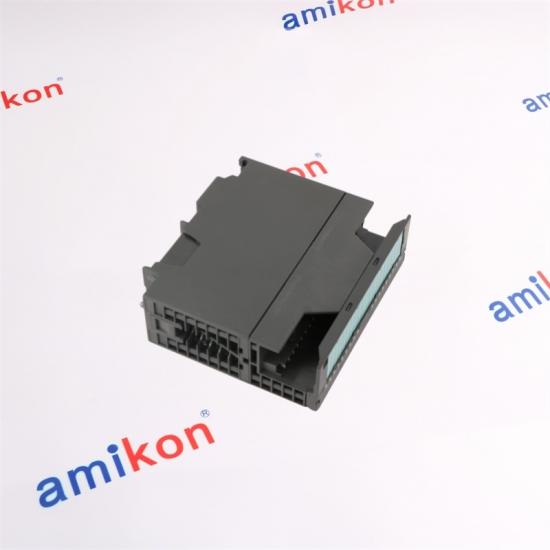

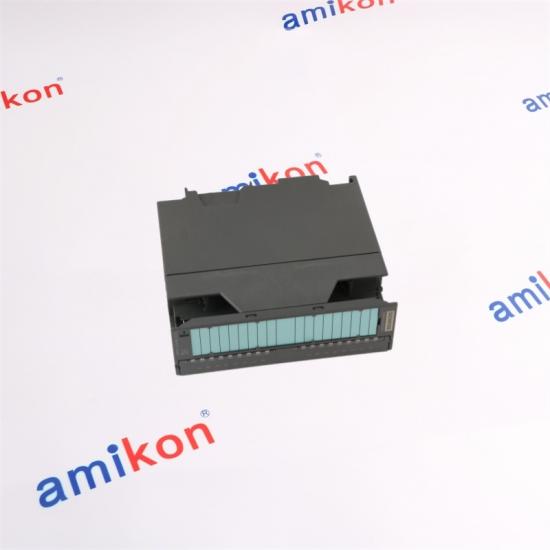

Siemens 6ES7323-1BH01-0AA0

Digital I/O module for SIMATIC S7-300 systems, combining 8 digital inputs and 8 digital outputs in one isolated module with 24 V DC operation and 0.5 A output capability.

Built for S7-300 Digital Signal Tasks

The 6ES7323-1BH01-0AA0 is designed for SIMATIC S7-300 automation stations that need both discrete signal acquisition and discrete actuator control.

Millions of Industrial Parts.
Faster Response When Downtime Matters.

For more than 20 years, AMIKON has supported industrial automation procurement with a broad range of automation components and responsive customer service.

Our team focuses on hard-to-find automation parts, fast communication and practical supply-chain support for customers working against demanding maintenance schedules.

What I/O configuration does the Siemens 6ES7323-1BH01-0AA0 provide?

The SM 323 module provides 8 digital inputs and 8 digital outputs, allowing discrete signal acquisition and actuator control within one S7-300 module.

What supply level and output rating apply to the 6ES7323-1BH01-0AA0?

The module uses 24 V DC digital I/O, with a rated output current of 0.5 A and a permitted output range of 5 mA to 0.6 A.

How quickly does the 6ES7323-1BH01-0AA0 respond to digital input changes?

Siemens specifies an input delay of 1.2 ms to 4.8 ms for both the 0-to-1 and 1-to-0 transitions.

Is the output stage of the Siemens 6ES7323-1BH01-0AA0 protected against short circuits?

Yes. The digital output stage uses electronic short-circuit protection, with a typical response threshold of approximately 1 A.

What should be checked when replacing a Siemens 6ES7323-1BH01-0AA0 in an existing S7-300 installation?

Confirm the exact order number, 8 DI / 8 DO configuration, 24 V DC operation, connector arrangement and the electrical requirements of the connected field devices before replacement.
